AHC emulator LX570 / TLC200 ~2015-2021
AHC emulator for Land Cruiser 200 and Lexus LX570, about 2015–2021, with the hydraulic suspension removed: clears the errors on the instrument cluster. The factory suspension unit is unplugged; the emulator goes to its connector A.
Description
open full size LX570 / Land Cruiser 200 AHC emulator (Active Height Control Suspension) is installed when the active suspension system is removed.

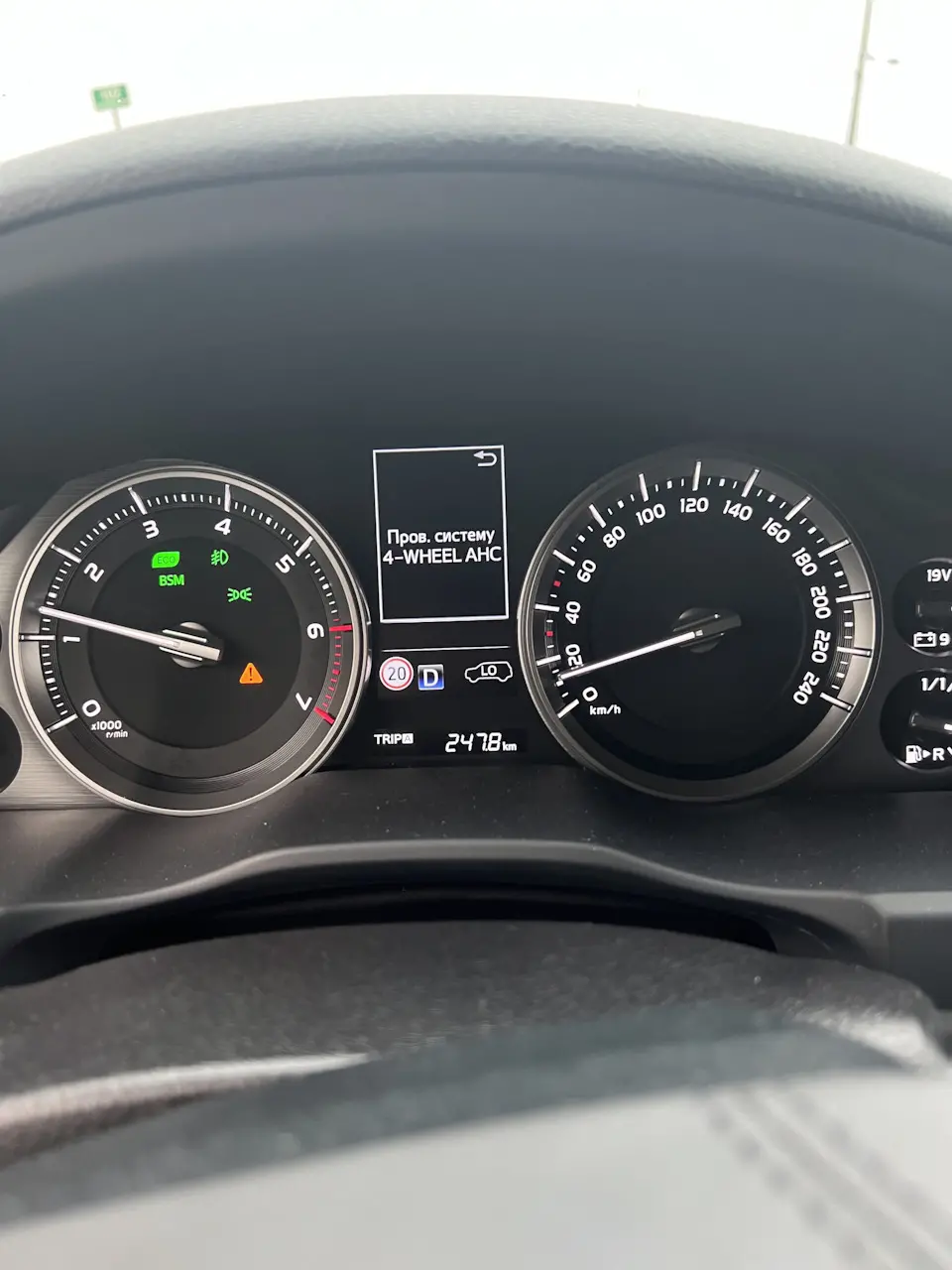

Clears the errors from the instrument panel.

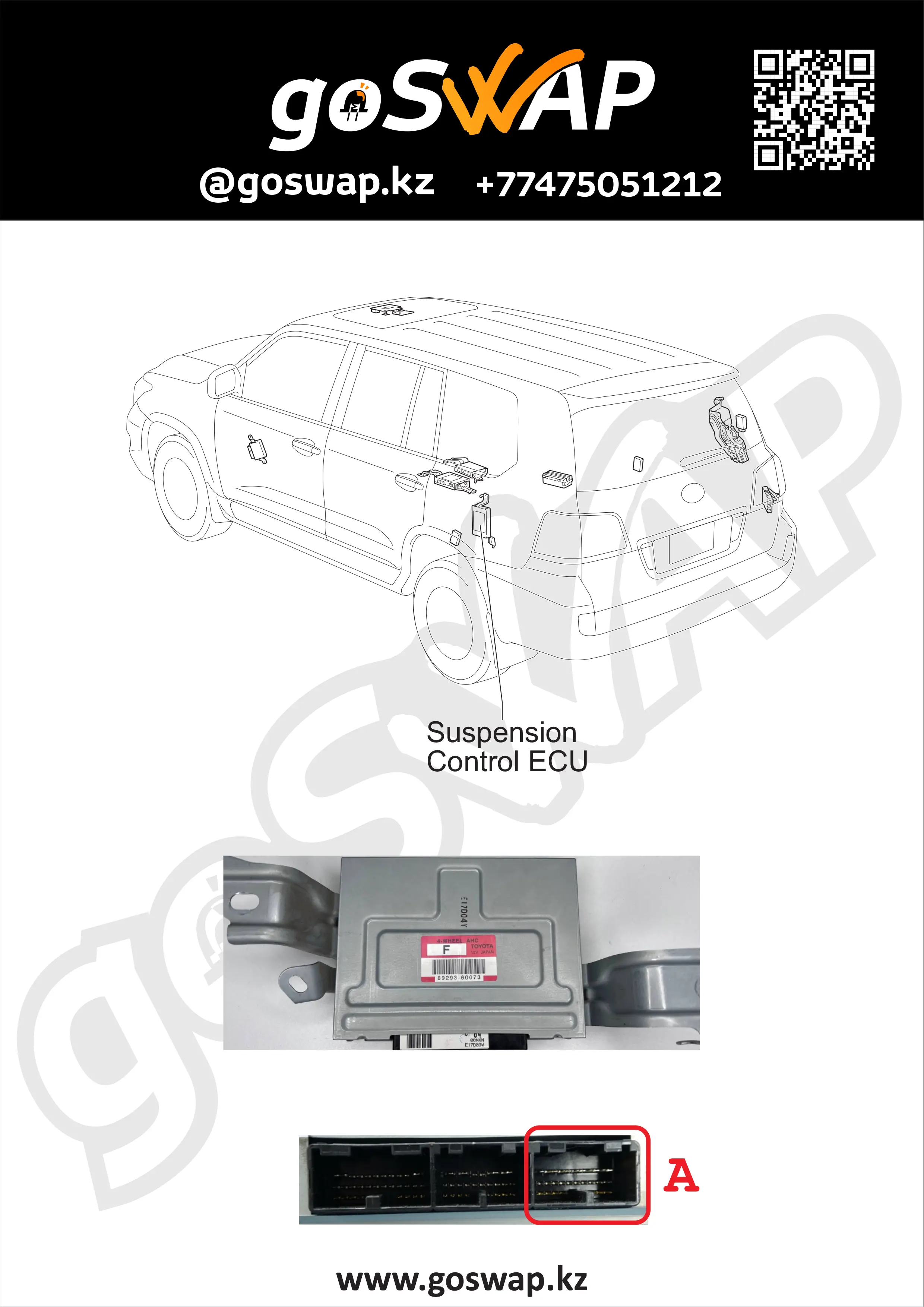

To install it, disconnect the factory suspension control unit located in the rear left fender.

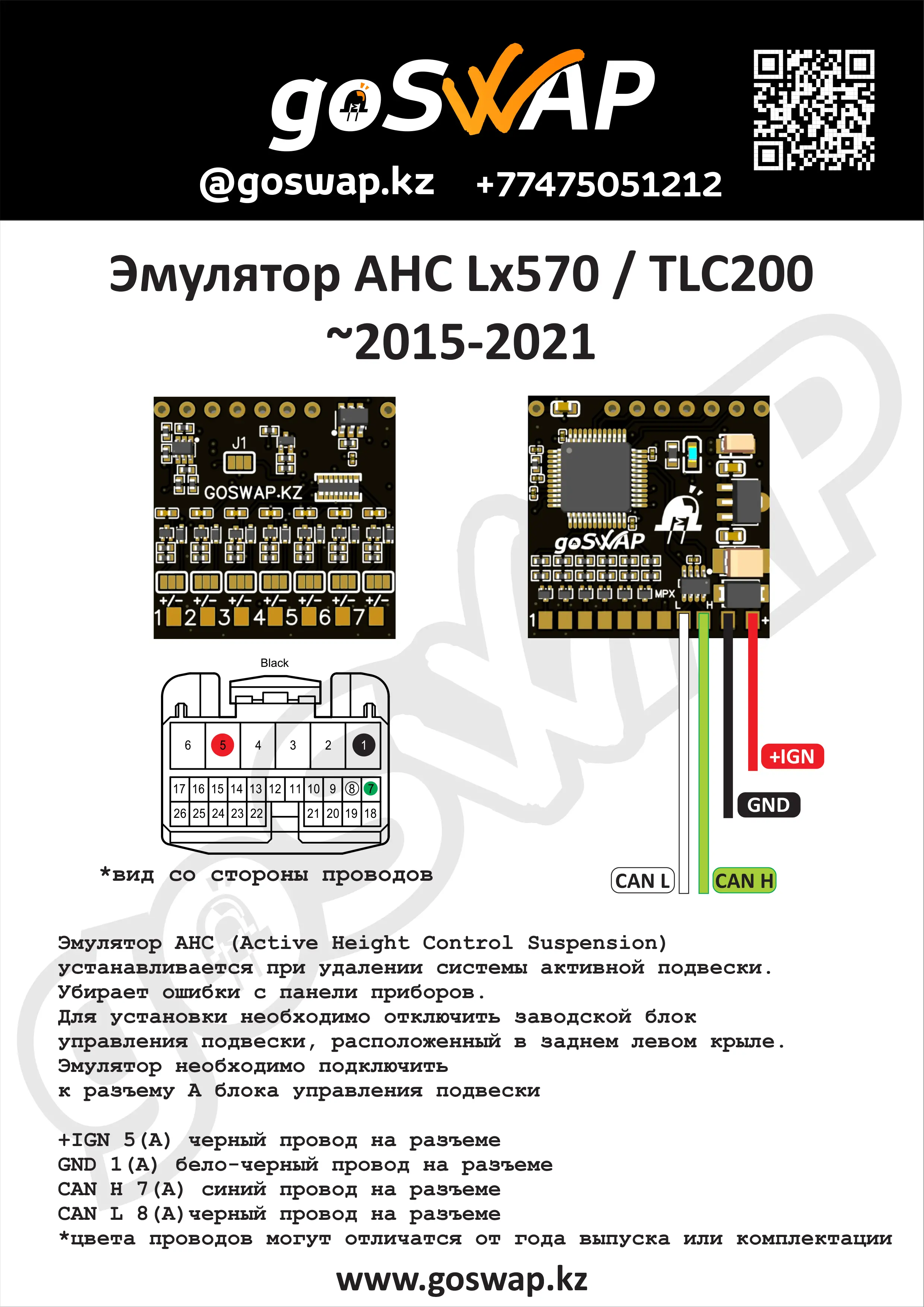

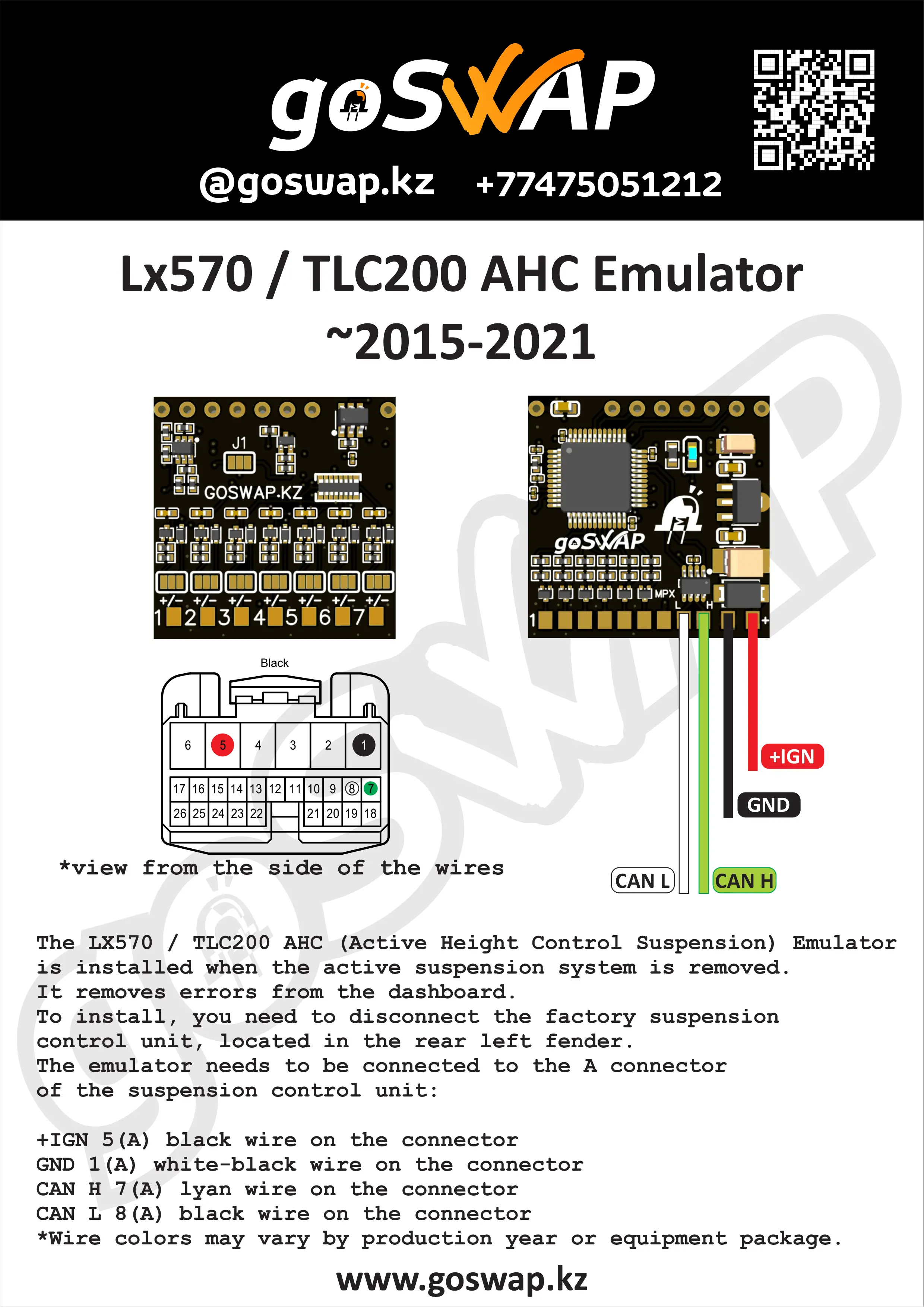

The emulator must be connected to connector A of the suspension control unit:
+IGN 5(A) black wire on the connector
GND 1(A) white-black wire on the connector
CAN H 7(A) blue wire on the connector
CAN L 8(A) black wire on the connector
*wire colors may differ depending on the model year or trim level
