GAZ BMW M57 adapter
CAN adapter for swapping a BMW M57 and 6HP gearbox (DDE5) into GAZelle Next, Business, NN, Sobol with CAN: the stock cluster shows rpm, speed and temperature, plus a reversing light output.
Description

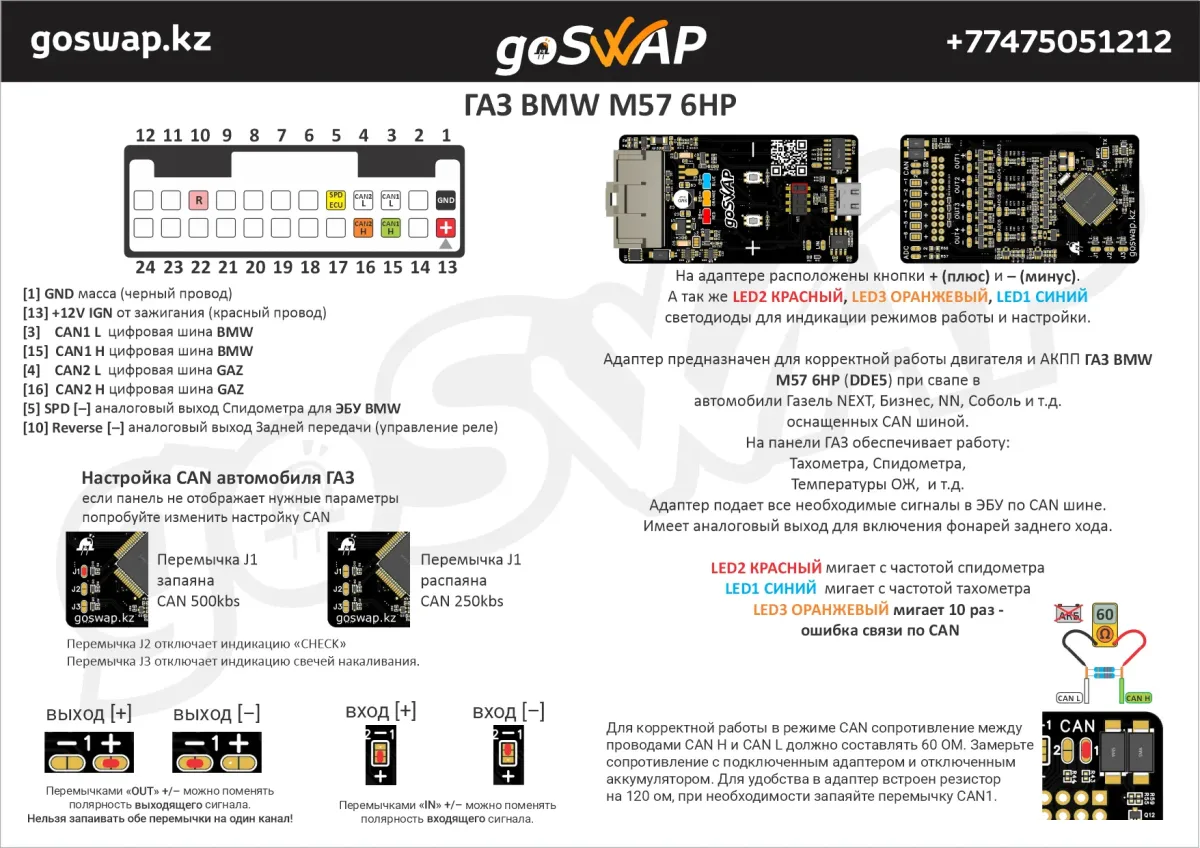

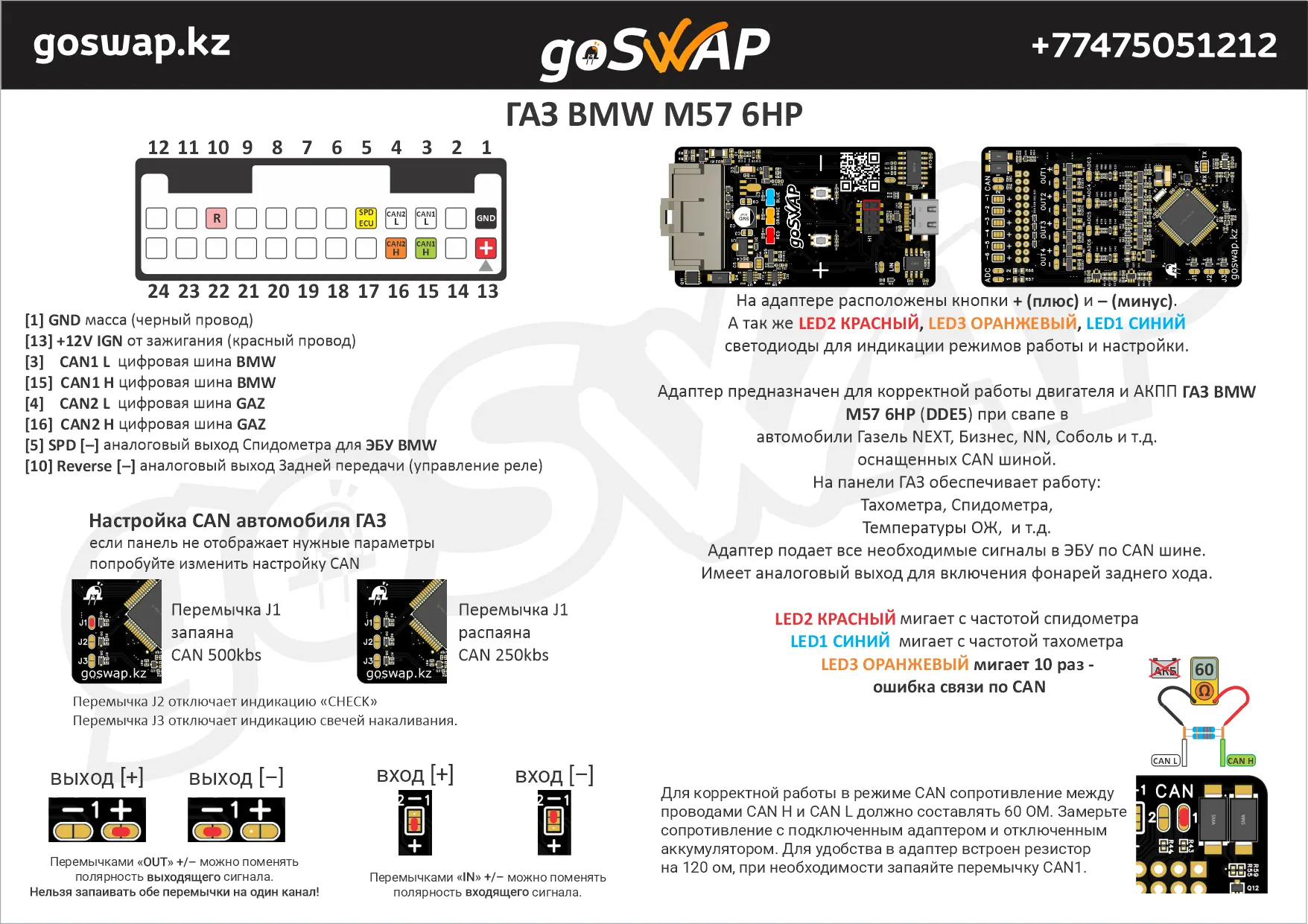

open full size The adapter ensures correct operation of the engine and automatic transmission
BMW M57 6HP (DDE5) when swapped into GAZelle NEXT, Business, NN, Sobol and similar vehicles equipped with a CAN bus.
On the GAZ instrument panel it provides:
Tachometer, Speedometer, Coolant temperature, etc.
The adapter sends all the required signals to the ECU over the CAN bus.
Has an analog output for turning on the reversing lights.
