Wiring diagram 3UZ 6AT · Toyota Crown Majesta UZS180
ECU part numbers: Crown Majesta UZS186 — 89661-3F360, 89661-30D30; Crown Majesta UZS187 — 89661-3F420, 89661-30D40.
Diagram sheets
Download PDF

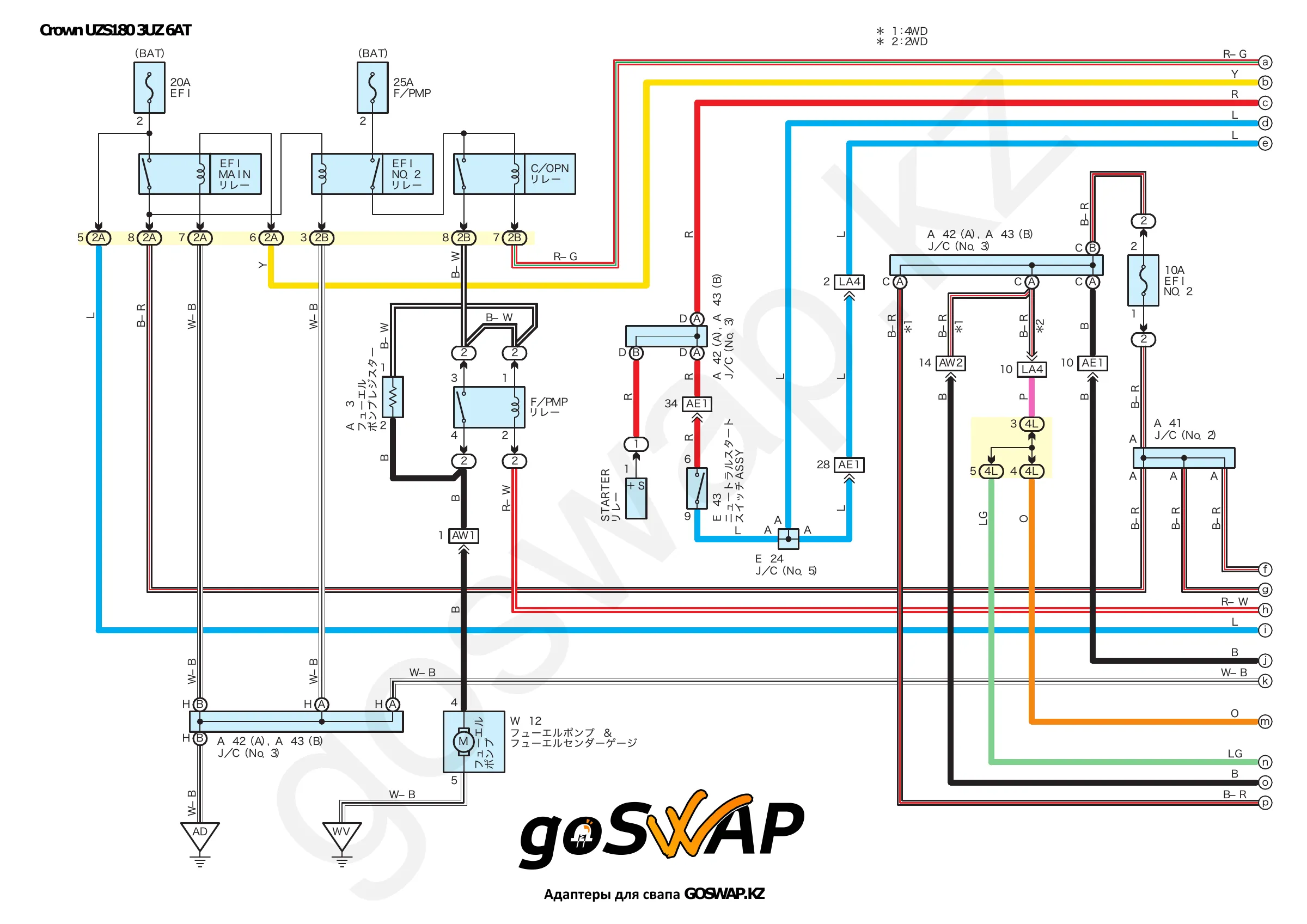

Page 1 of 21 · open full size

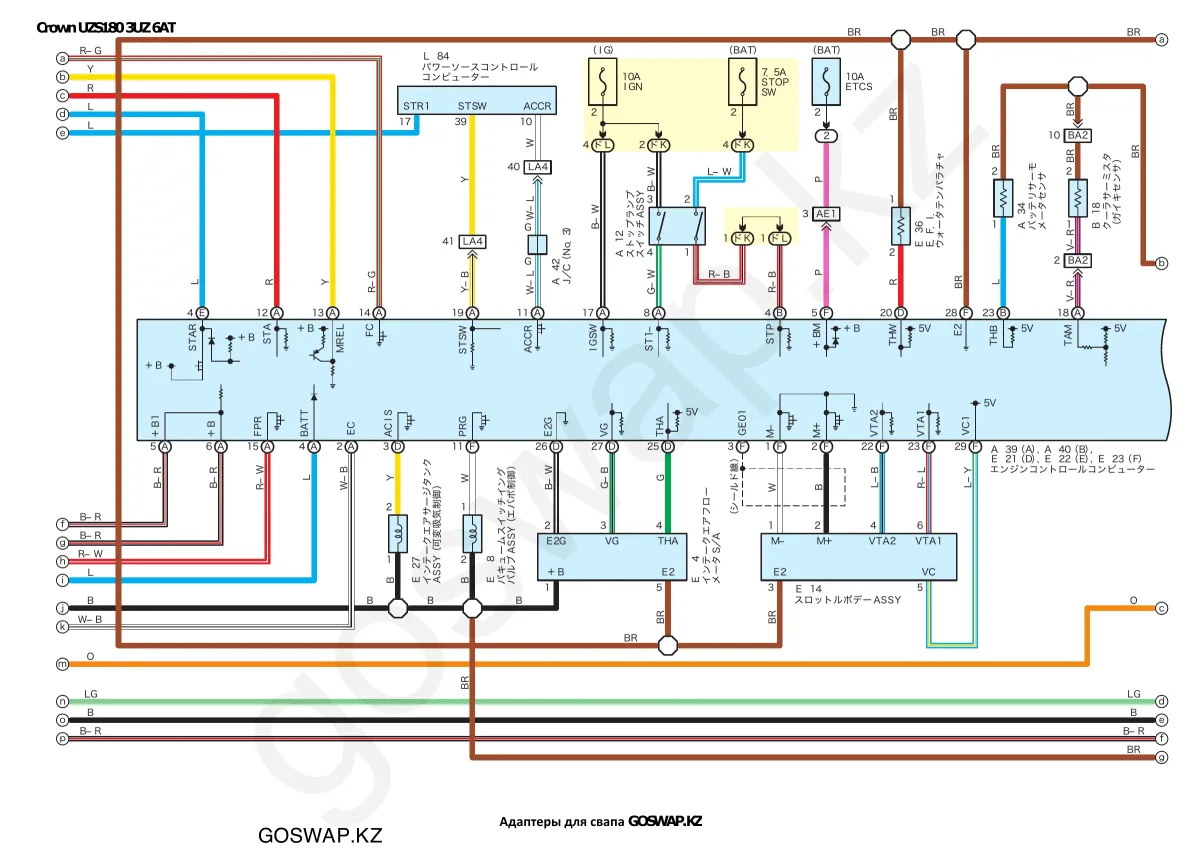

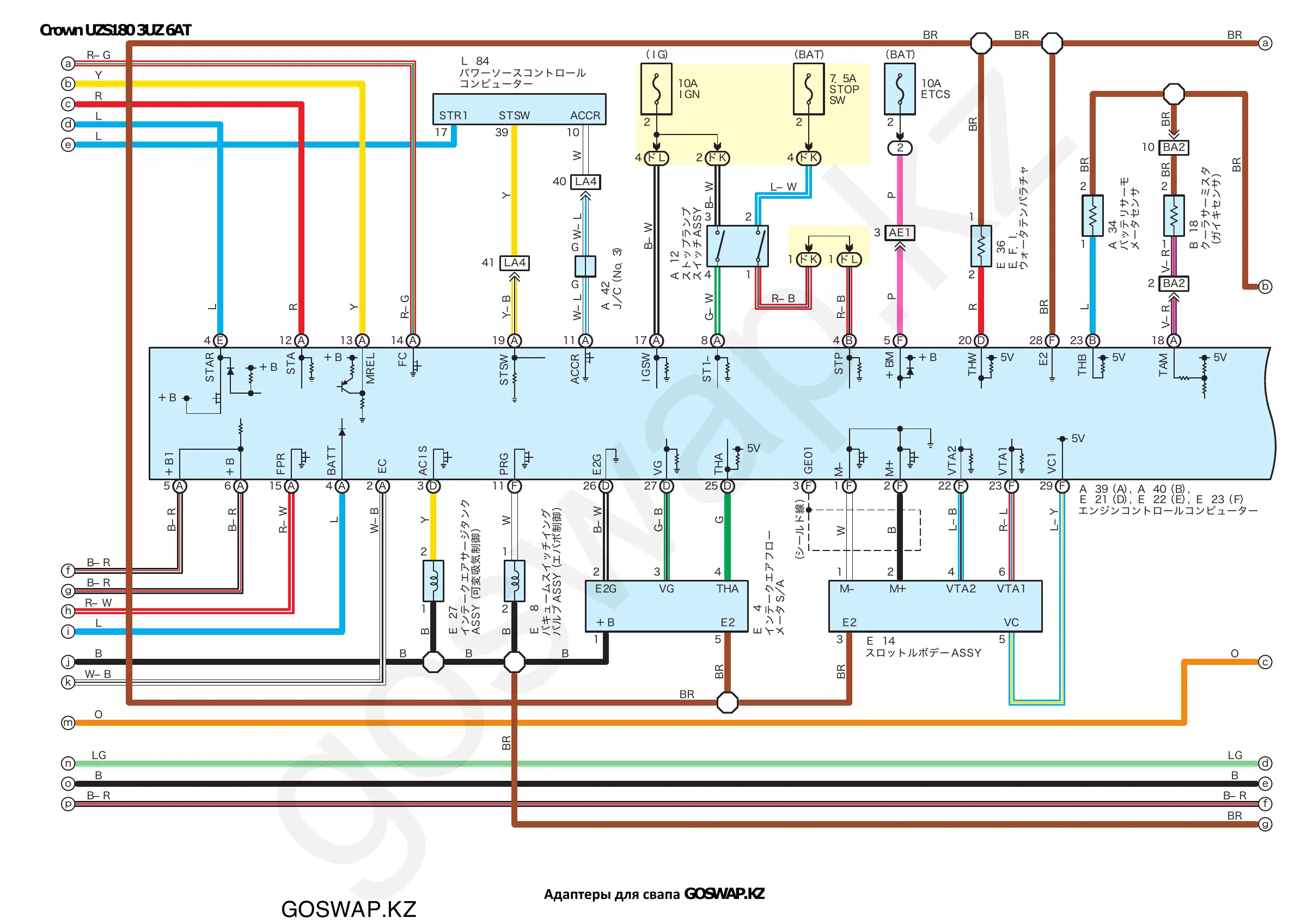

Page 2 of 21 · open full size

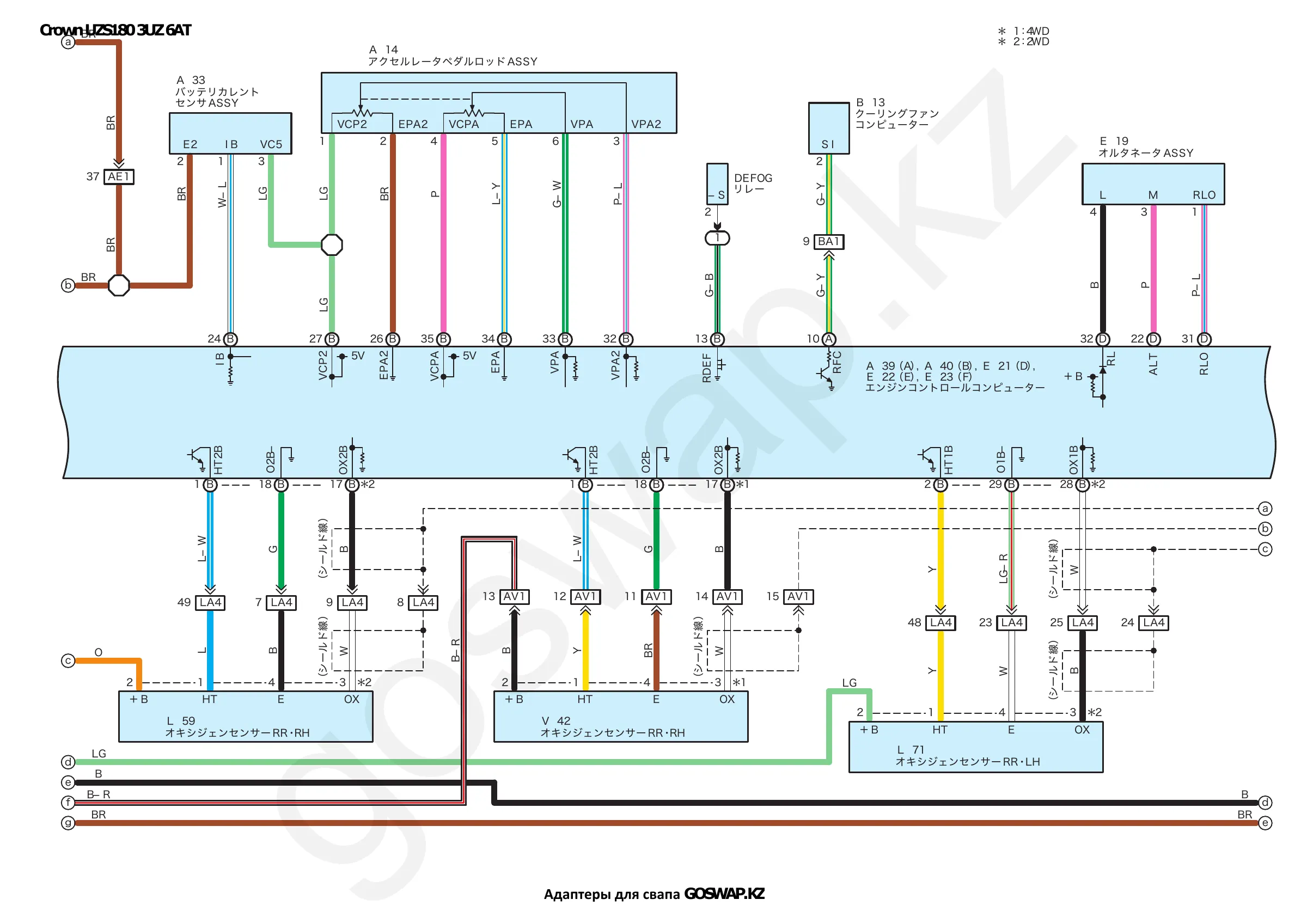

Page 3 of 21 · open full size

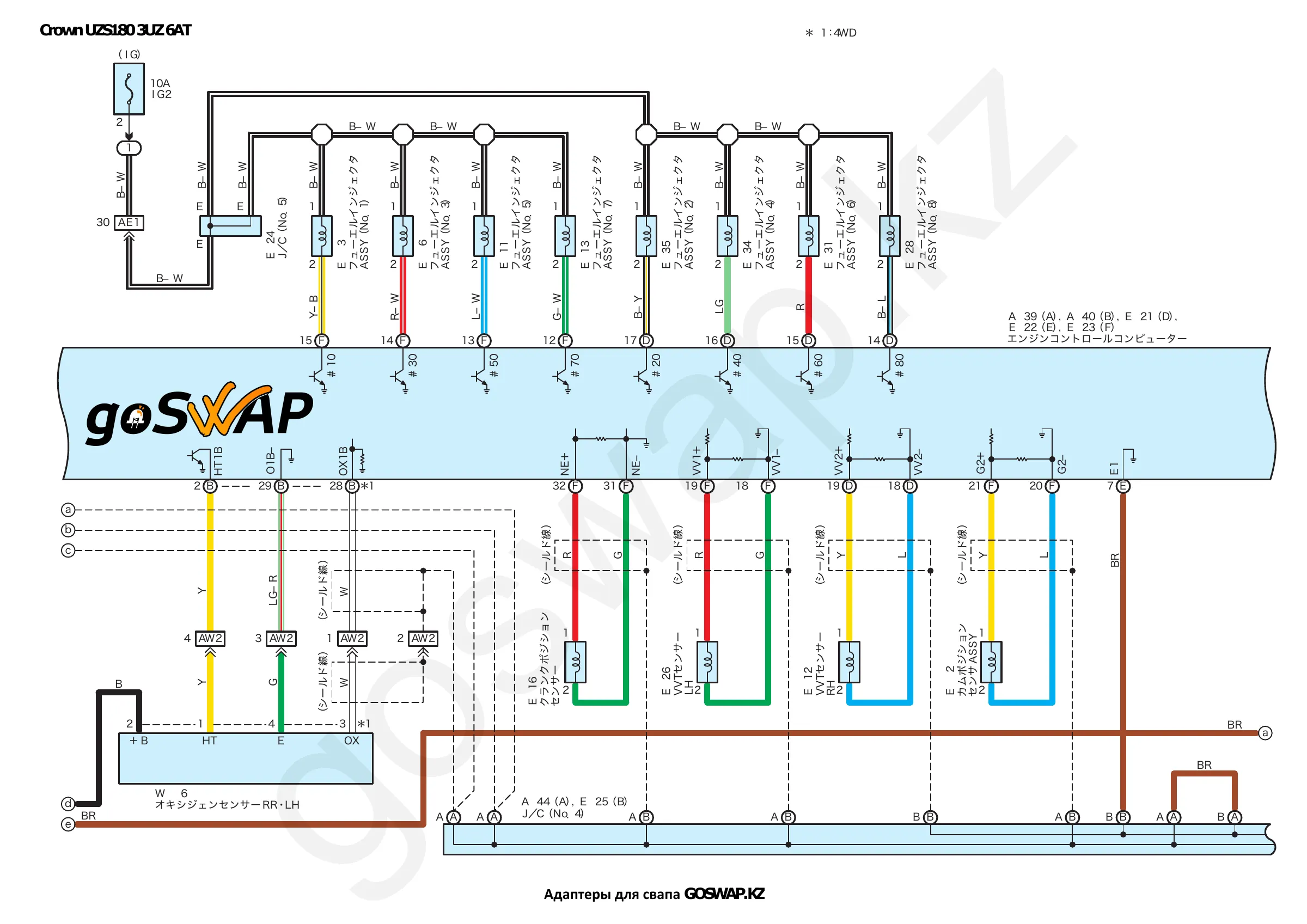

Page 4 of 21 · open full size

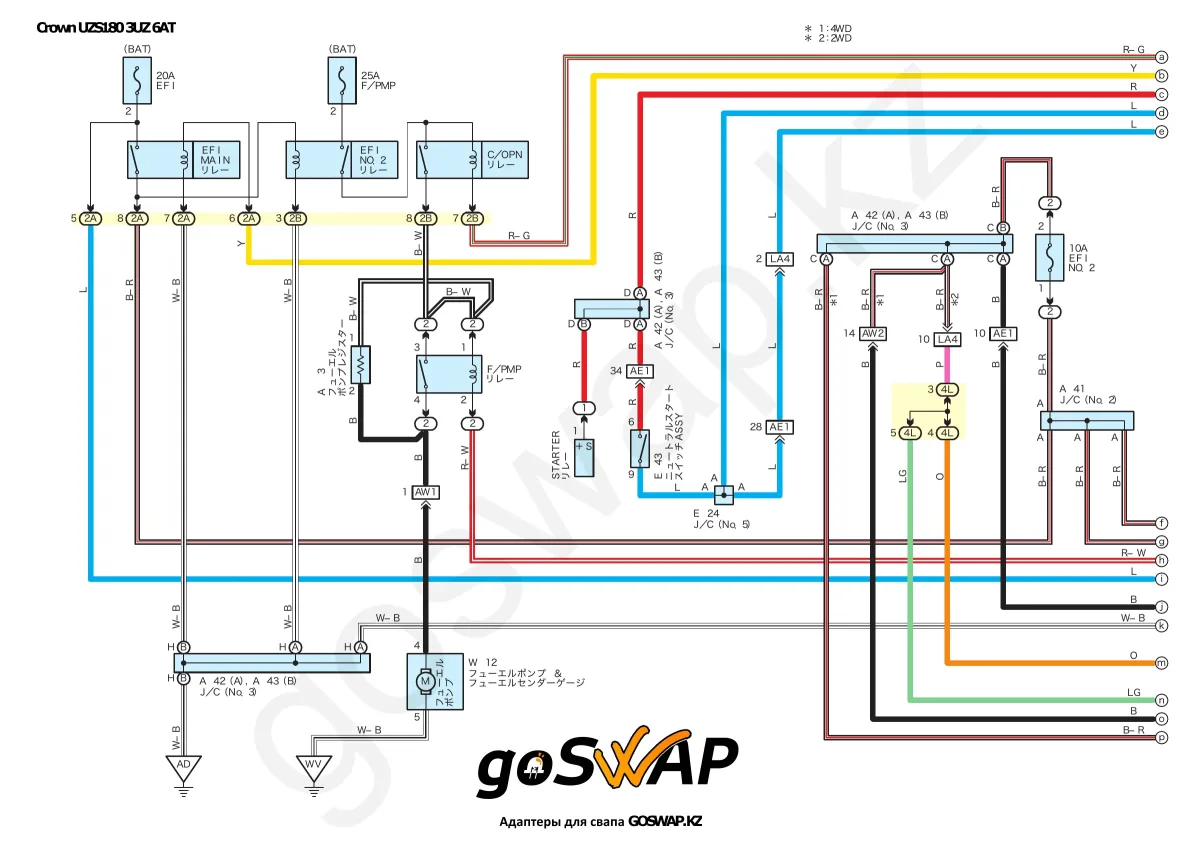

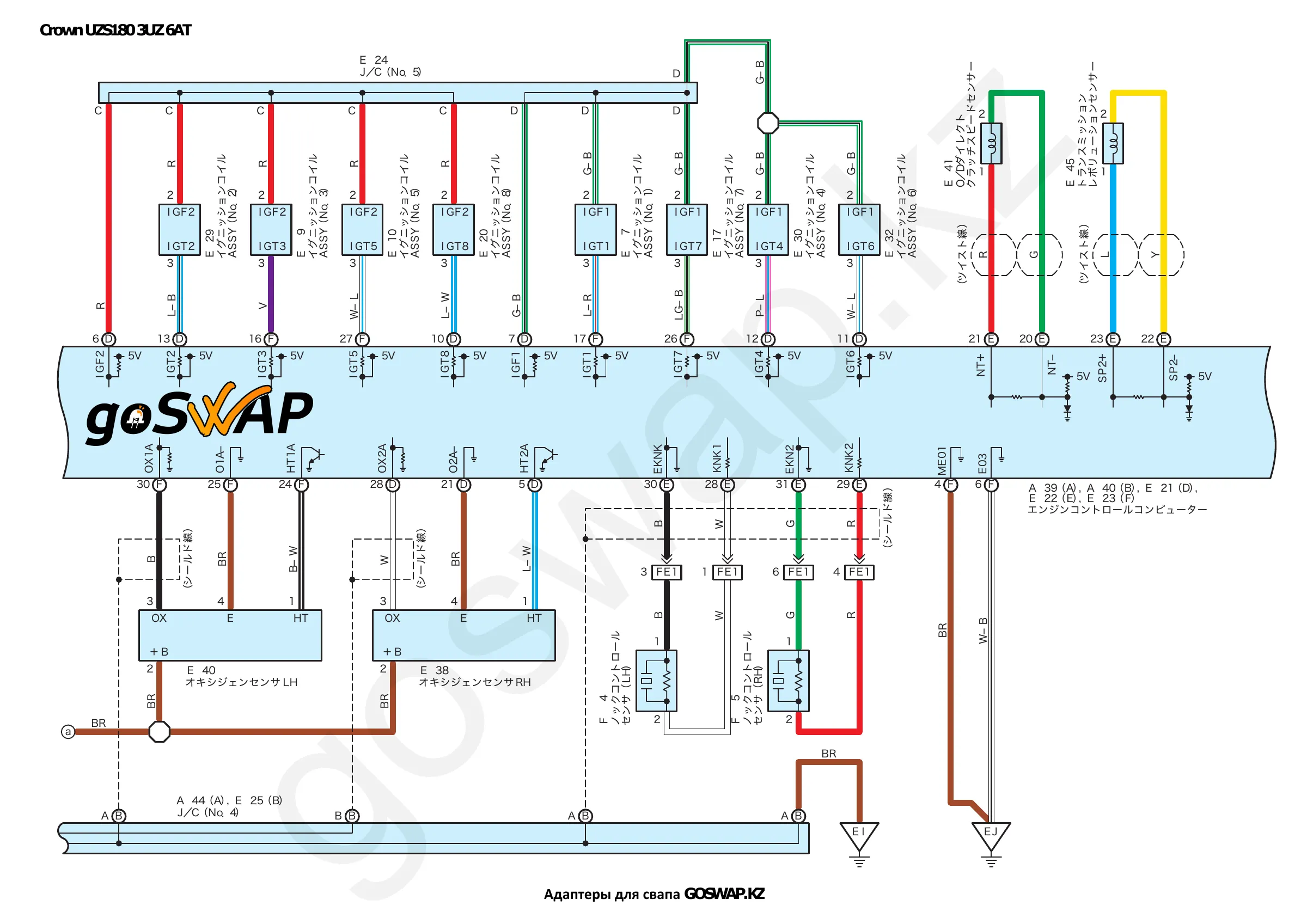

Page 5 of 21 · open full size

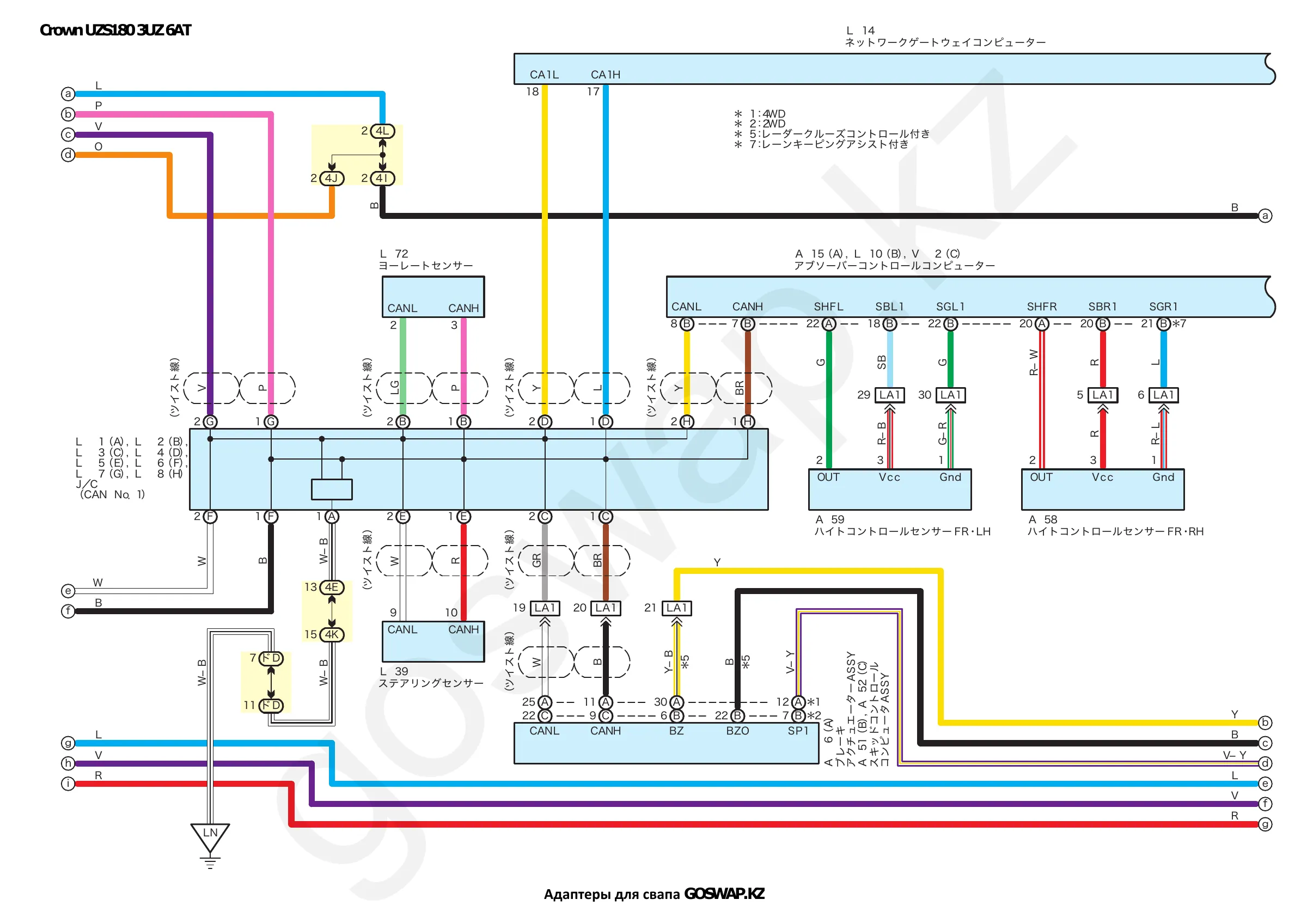

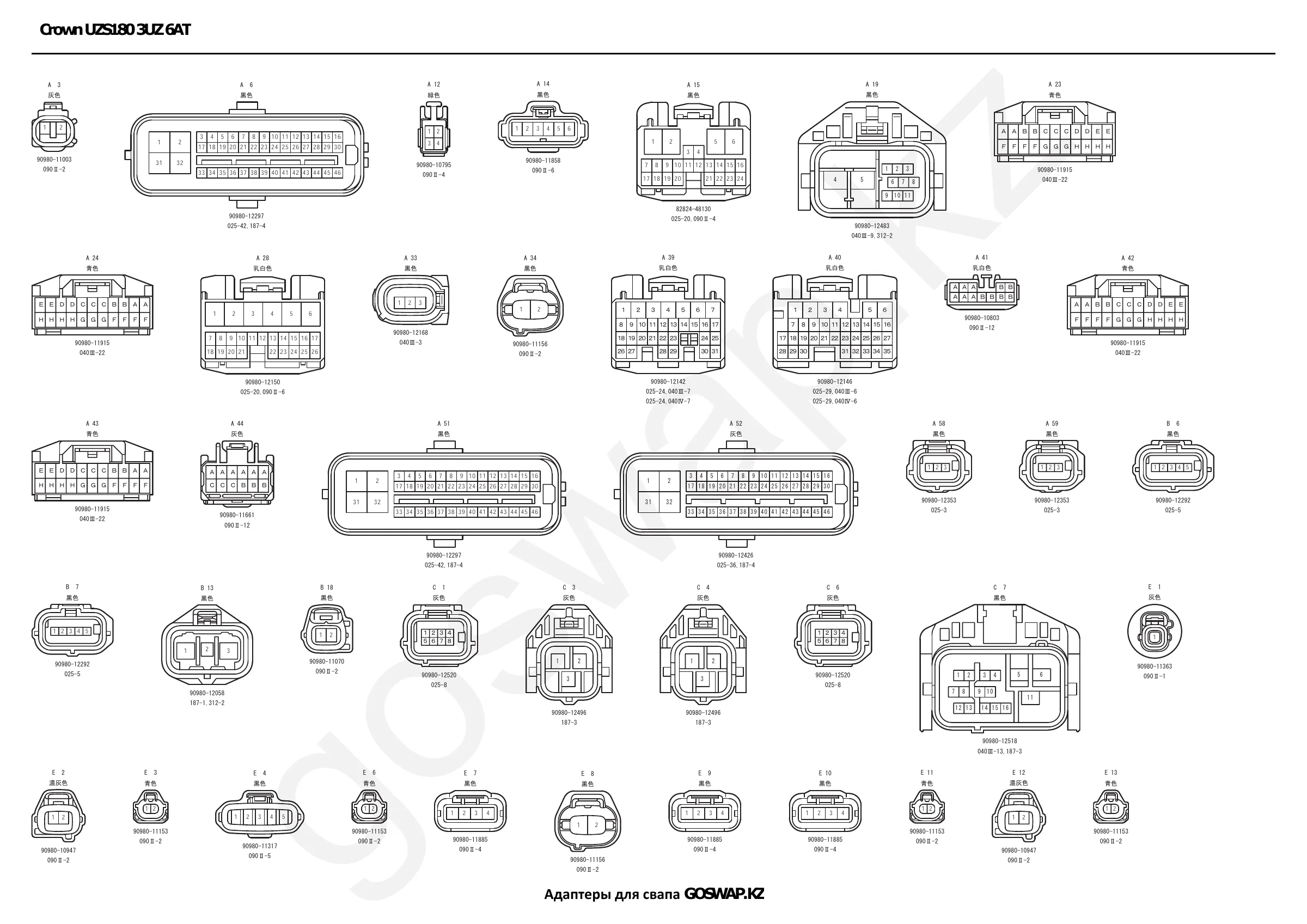

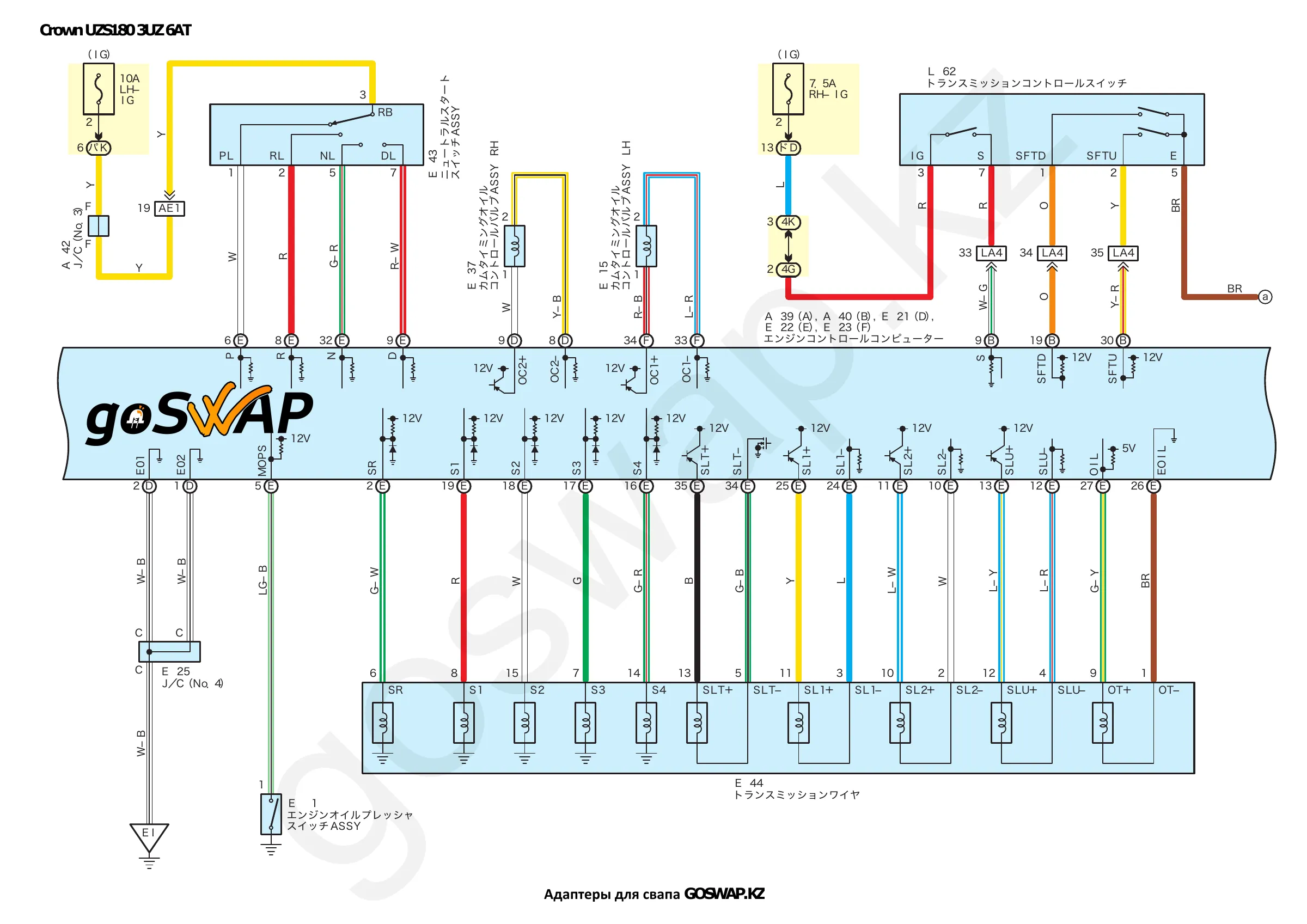

Page 6 of 21 · open full size

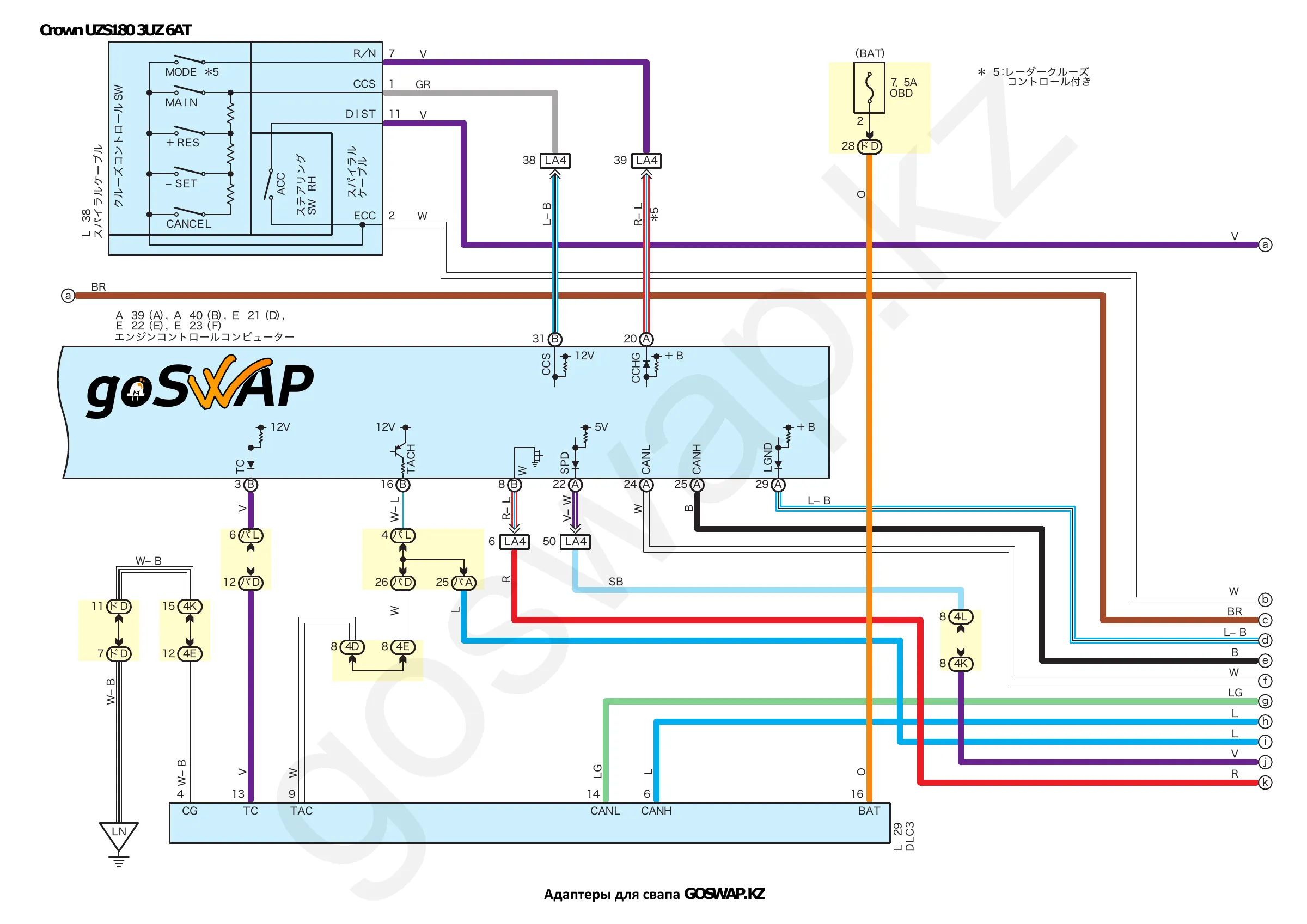

Page 7 of 21 · open full size Swap adapters: Toyota 3UZ 6AT · GR (CAN) · 6
-
Hyundai Starex H1 CAN Toyota Manual -
L200 / Pajero Sport CAN ~2007-2015 climate control adapter Manual -
PAJERO TIPTRONIC 3UZ CAN Manual
Hyundai Starex H1 CAN Toyota Manual L200 / Pajero Sport CAN ~2007-2015 climate control adapter Manual PAJERO TIPTRONIC 3UZ CAN Manual
Pajero 4 instrument cluster adapter Manual
POWER SNOW ELS CRUISE adapter Manual
Nissan Patrol Y61 instrument panel adapter Manual
Page 8 of 21 · open full size

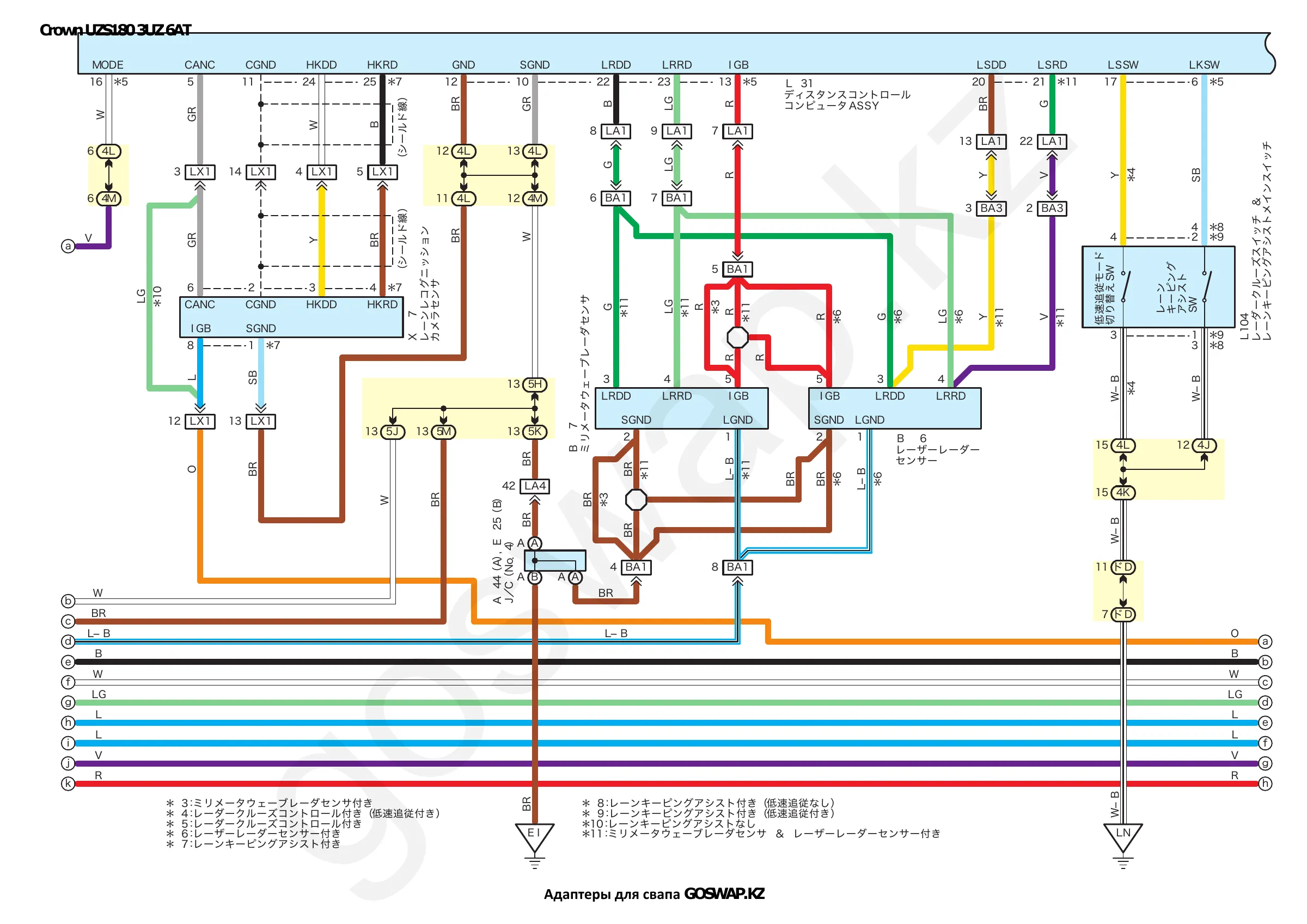

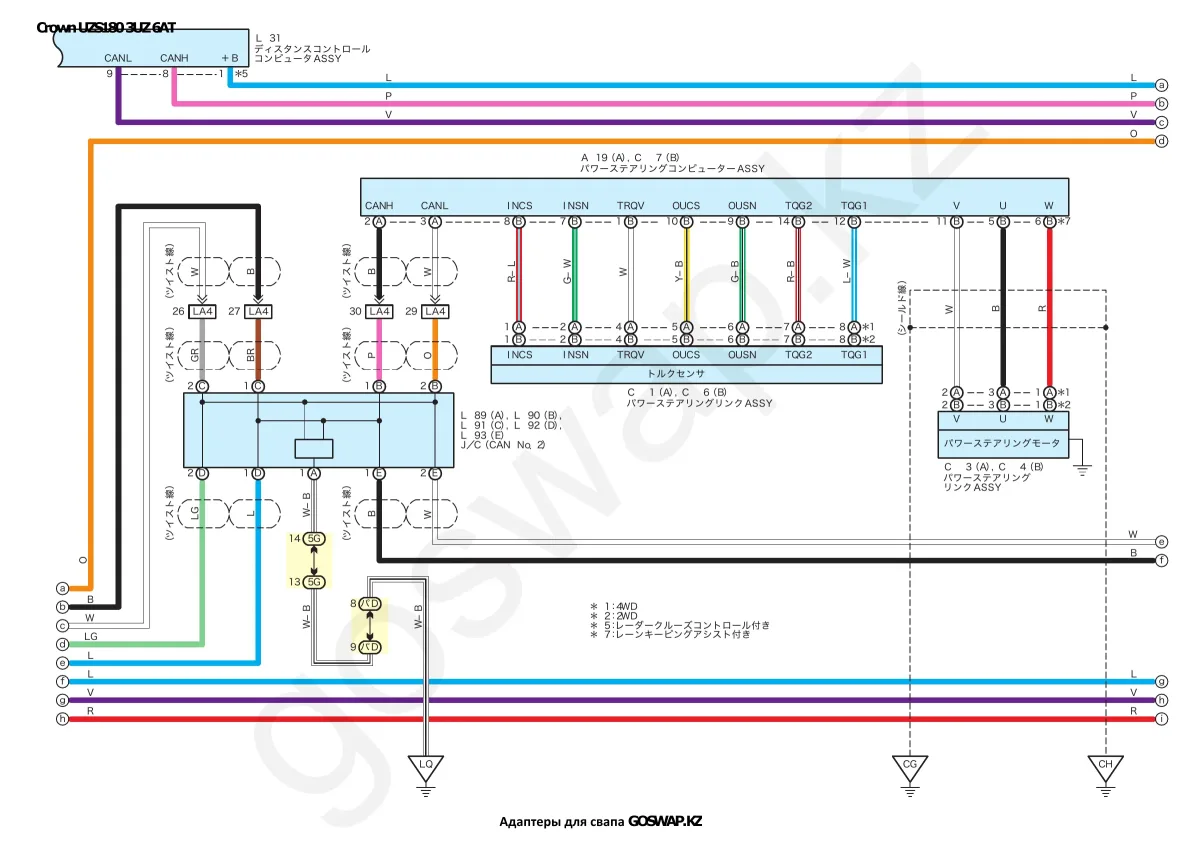

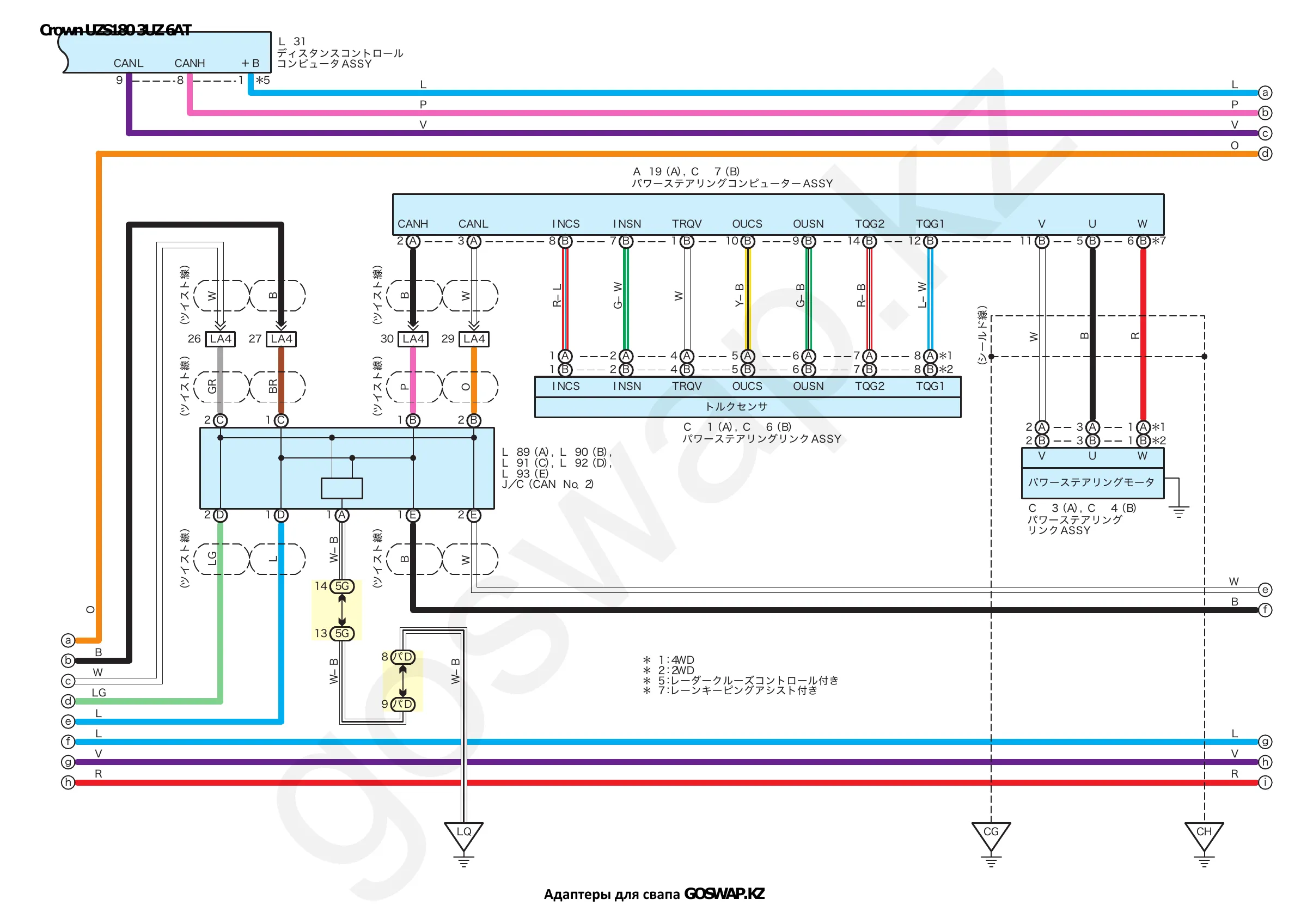

Page 9 of 21 · open full size

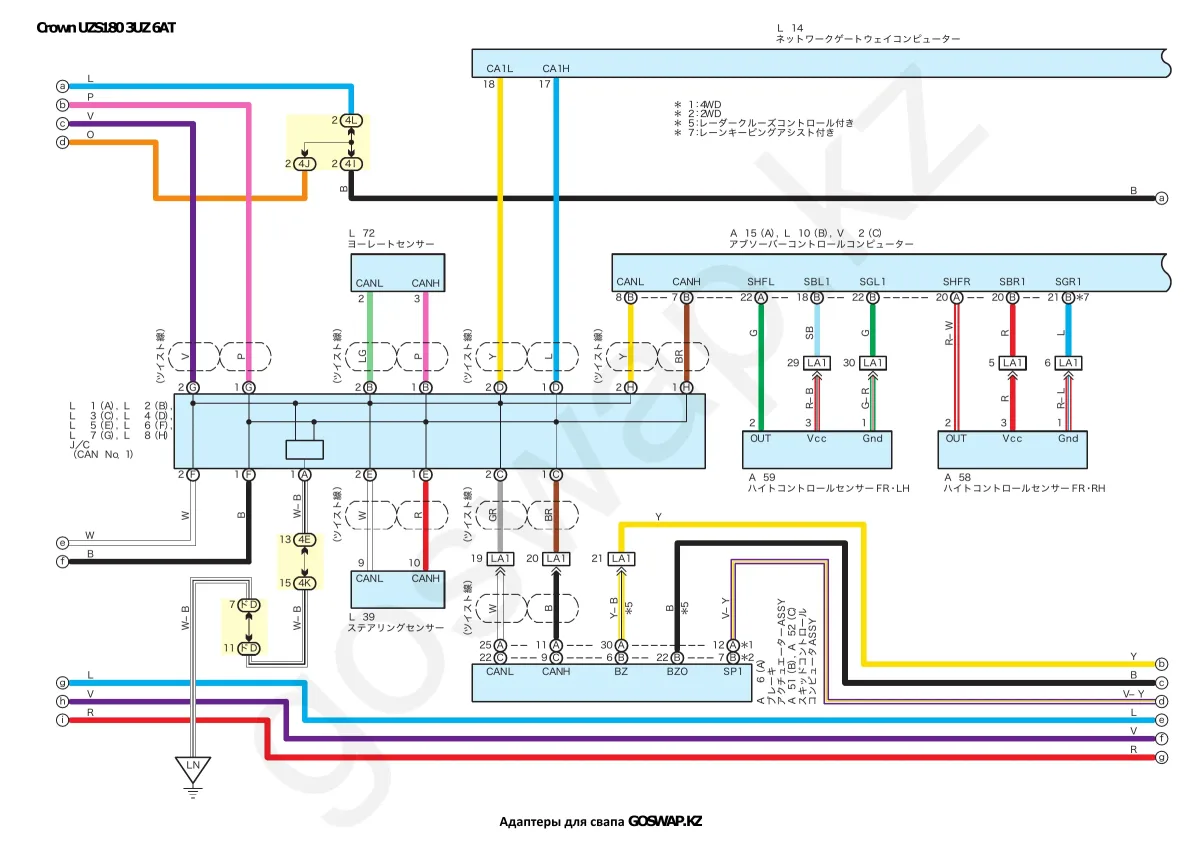

Page 10 of 21 · open full size
Page 11 of 21 · open full size

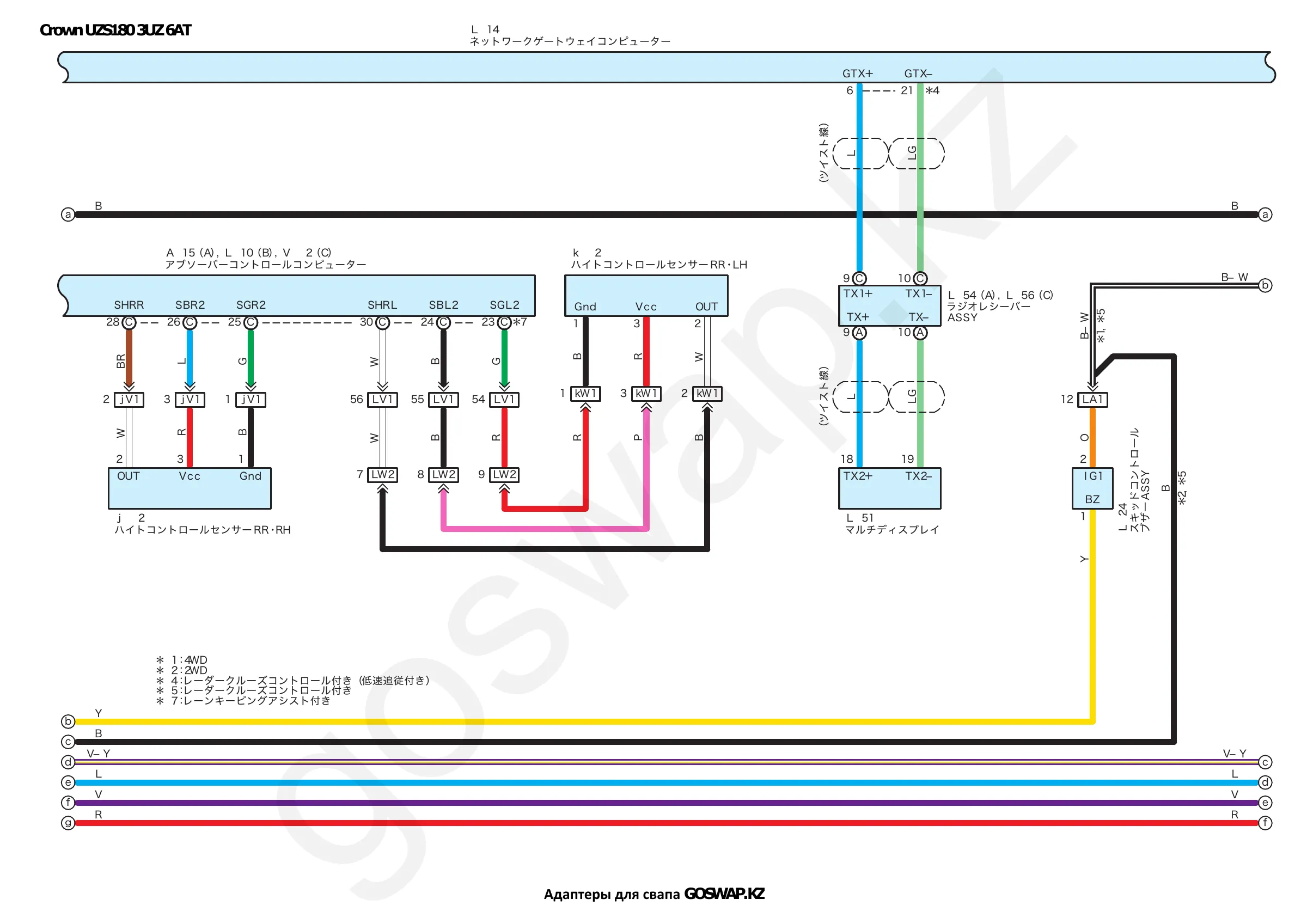

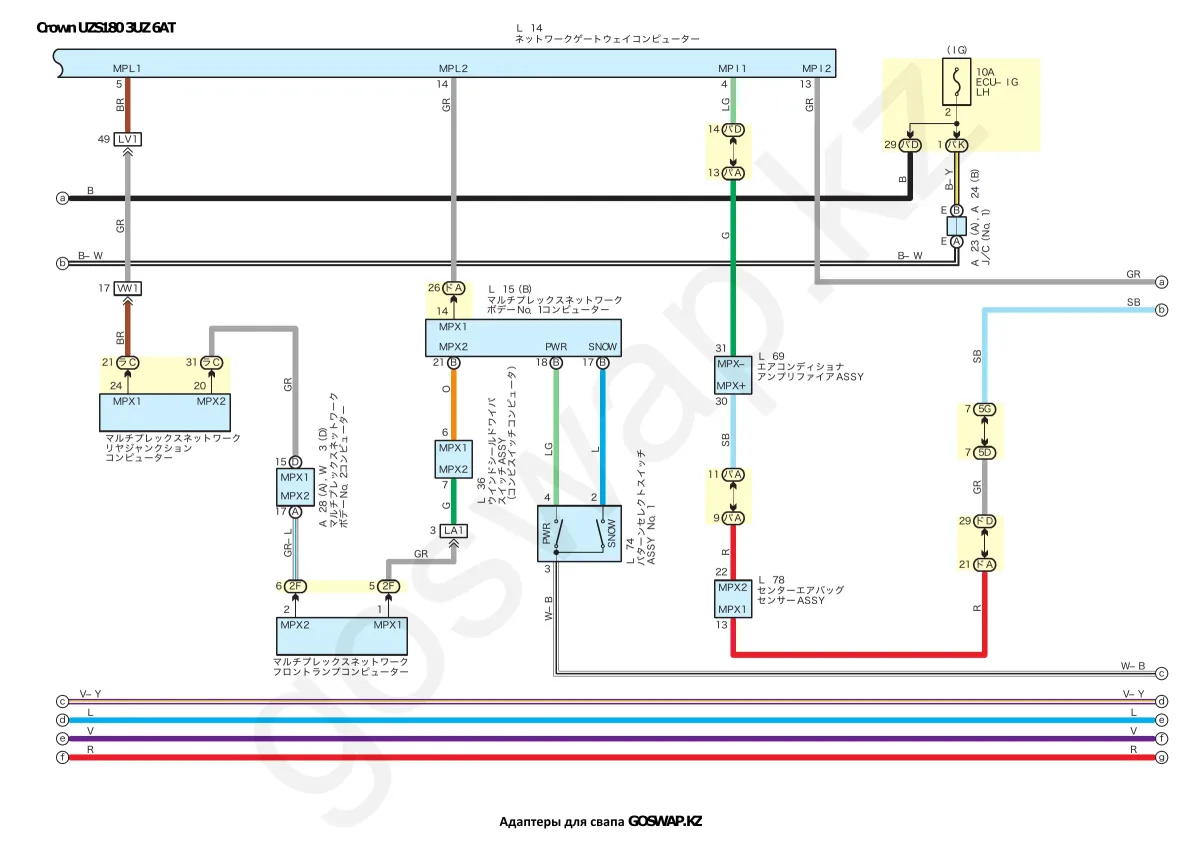

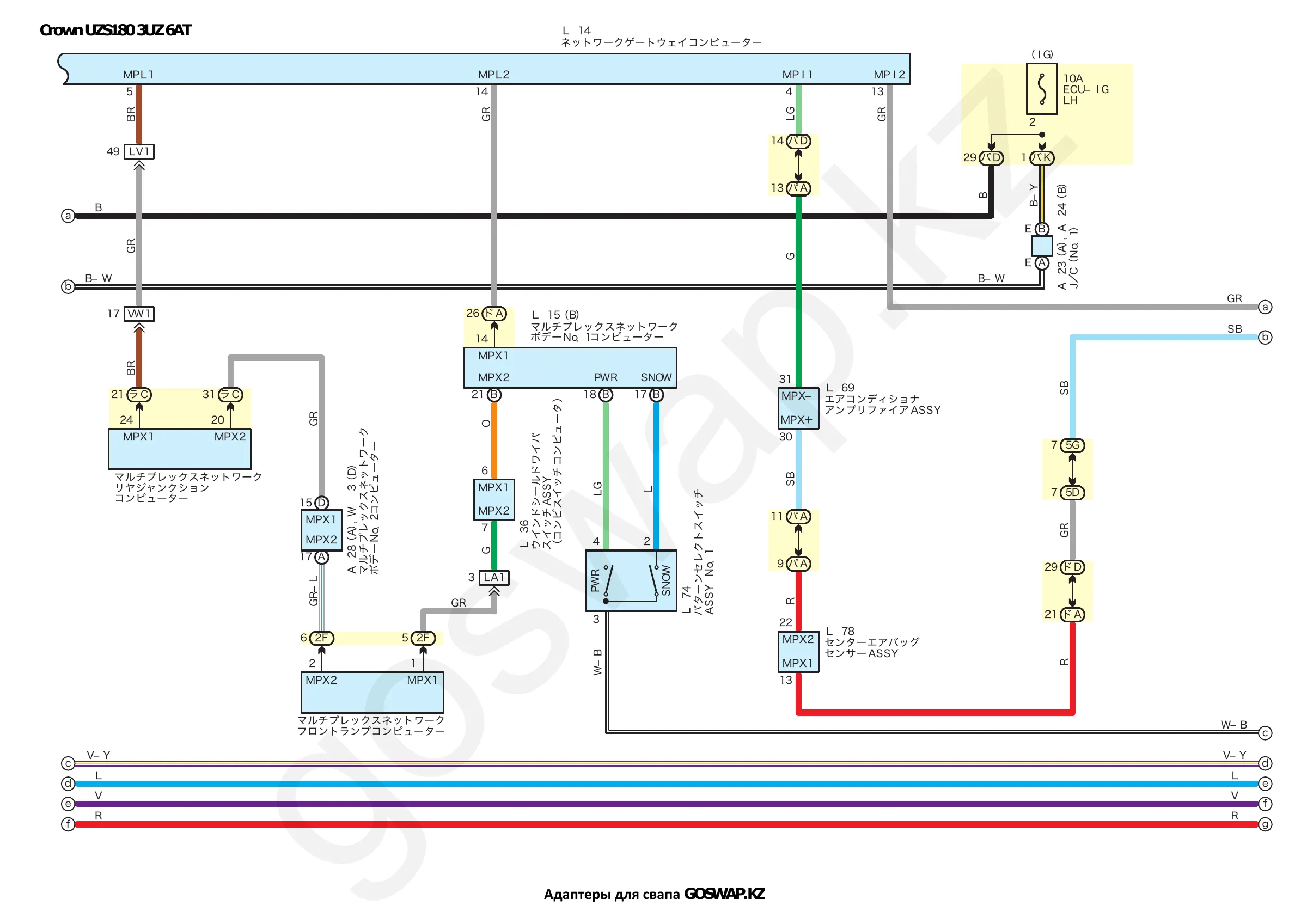

Page 12 of 21 · open full size
Page 13 of 21 · open full size

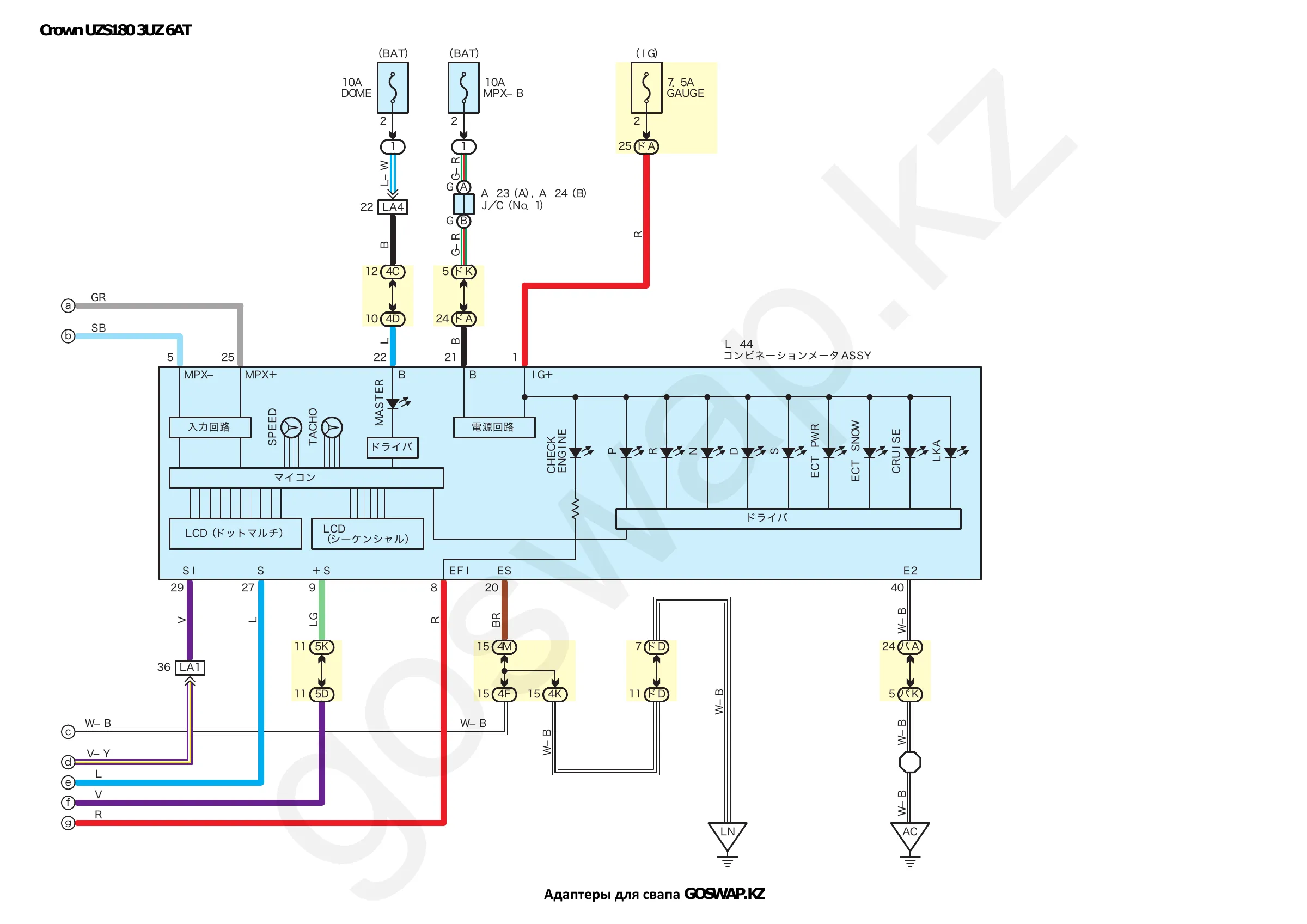

Page 14 of 21 · open full size Swap adapters: Toyota 3UZ 6AT · GR (CAN) · 6

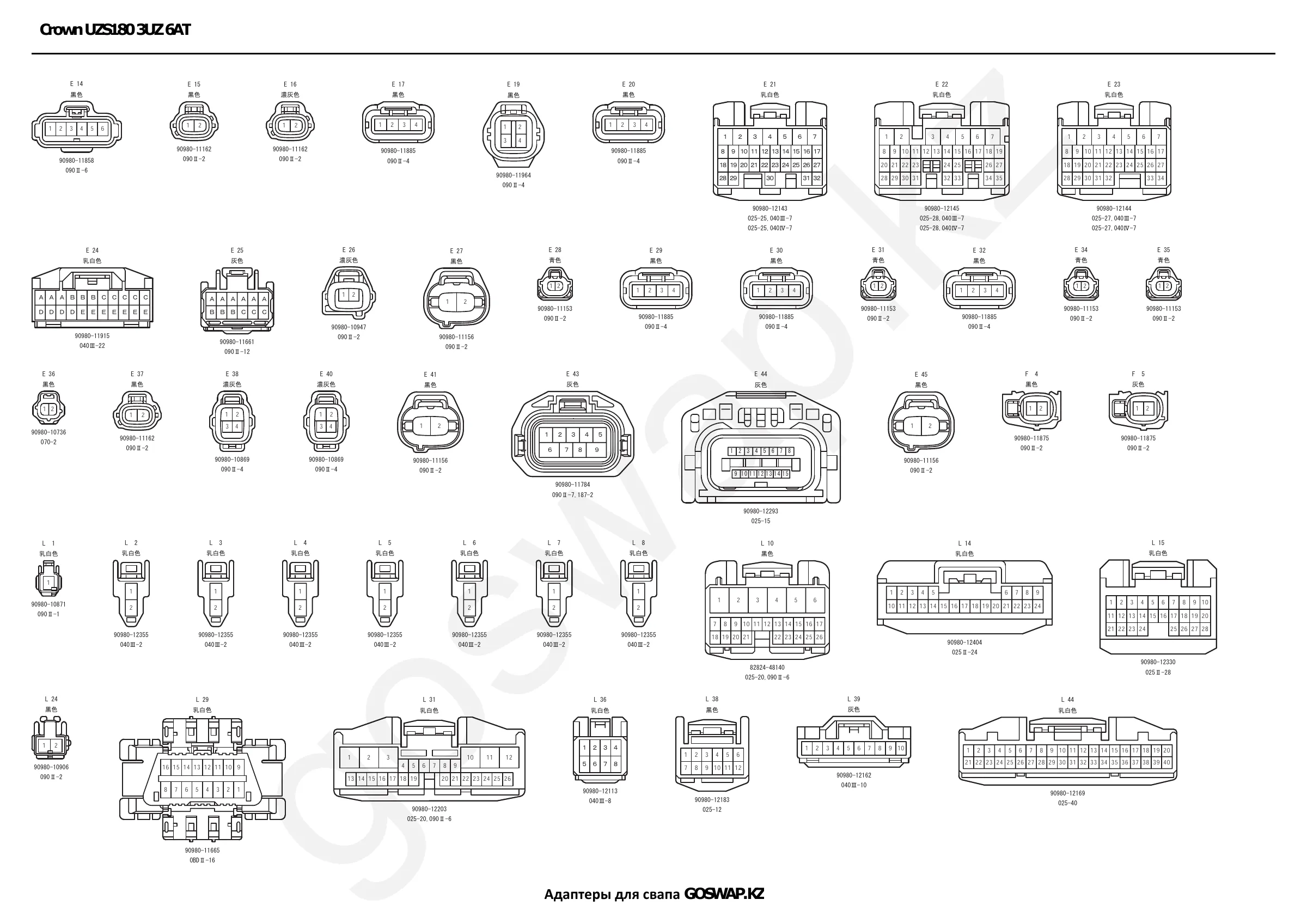

Page 15 of 21 · open full size

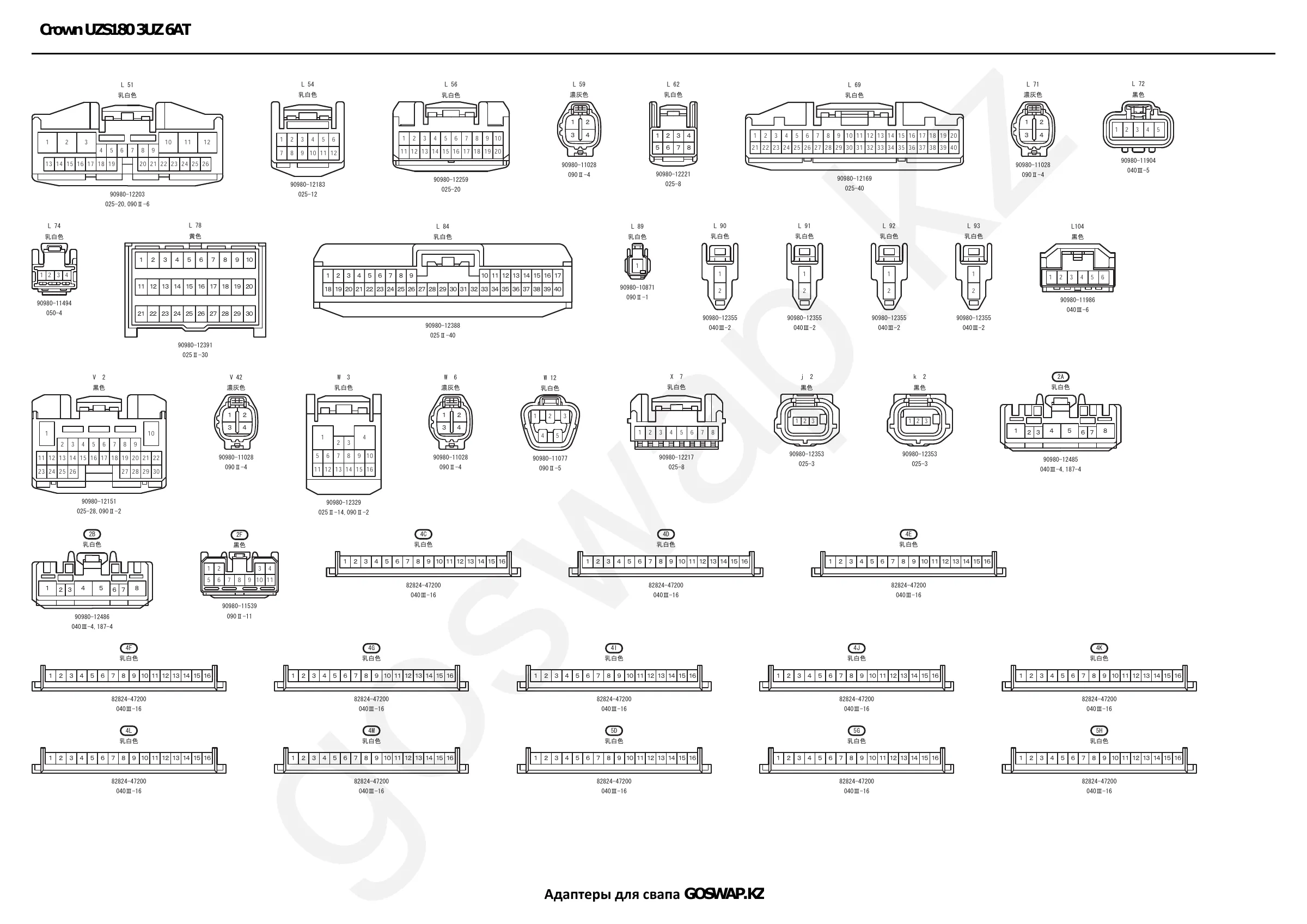

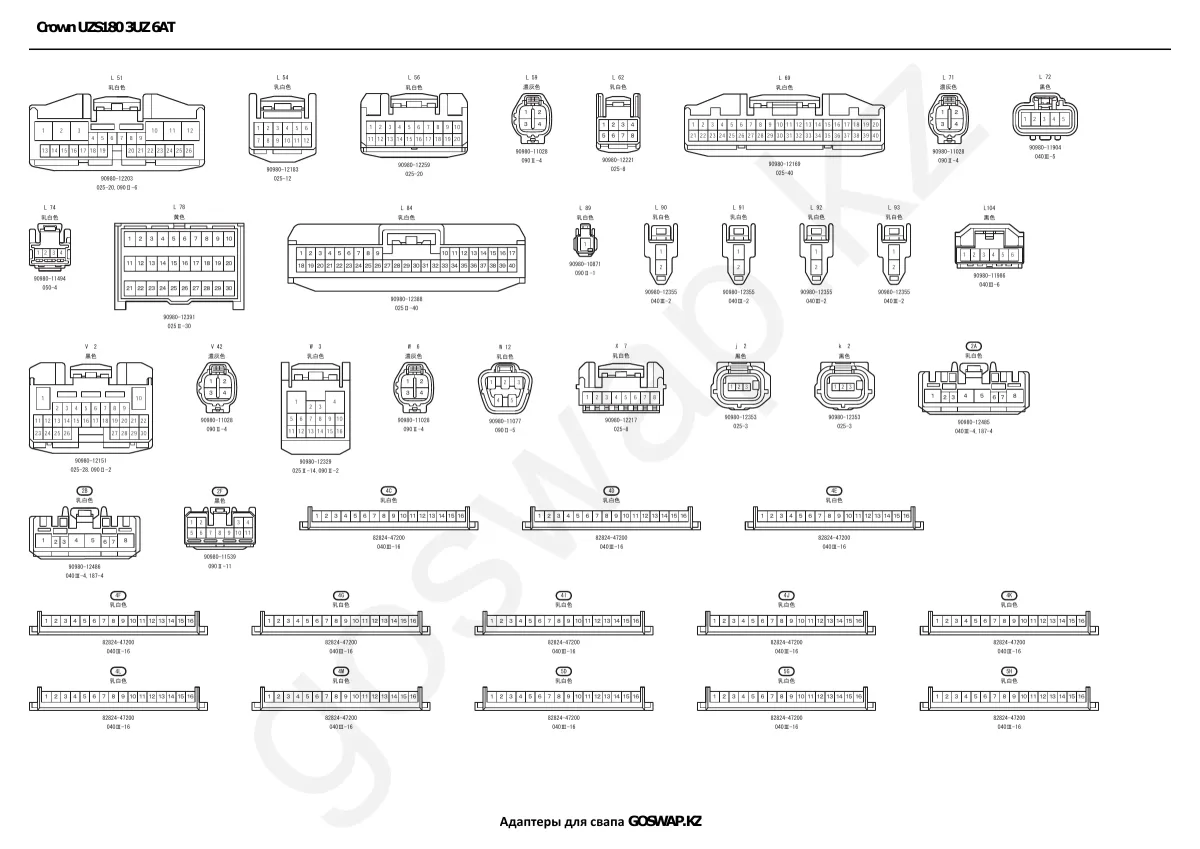

Page 16 of 21 · open full size

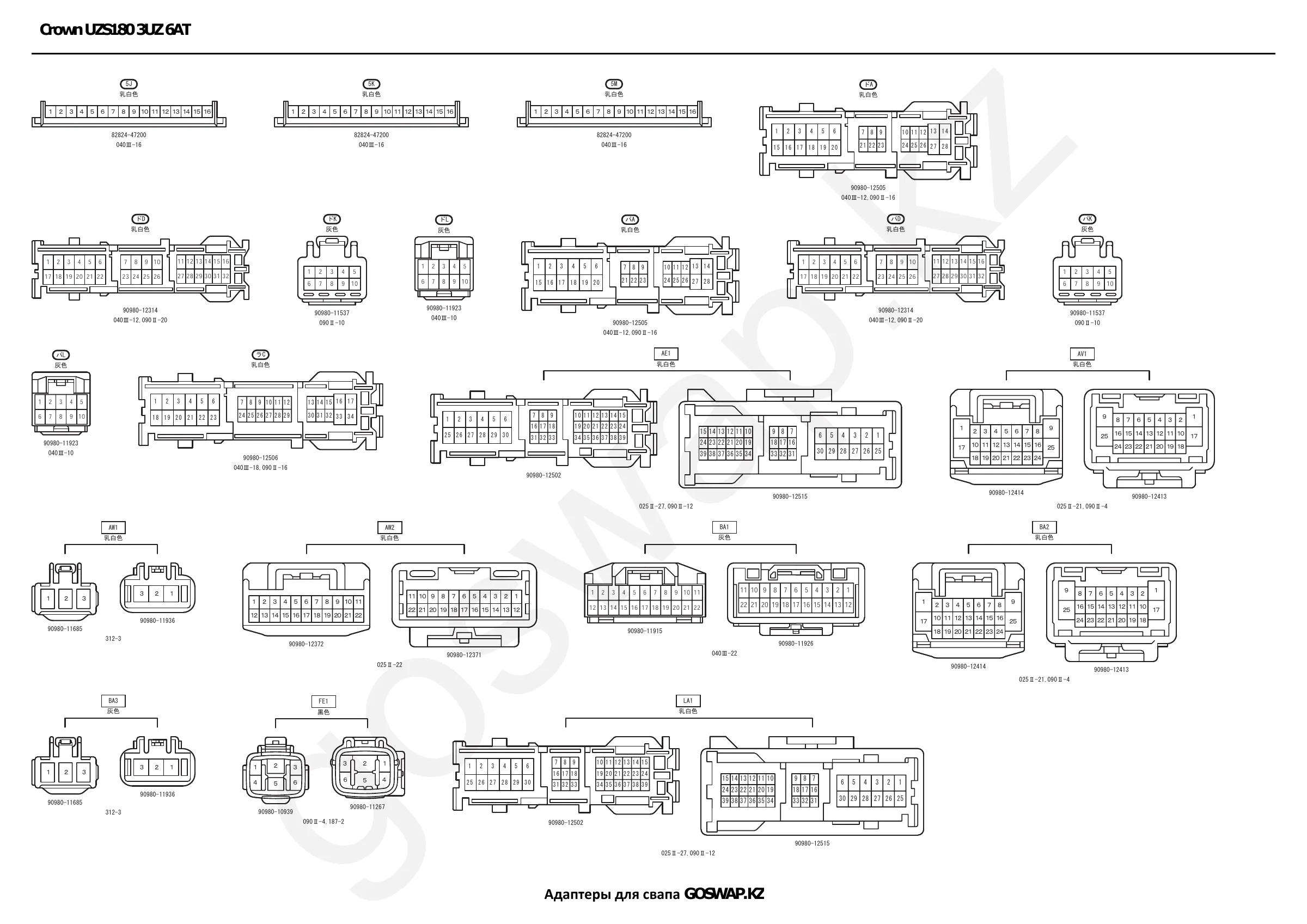

Page 17 of 21 · open full size

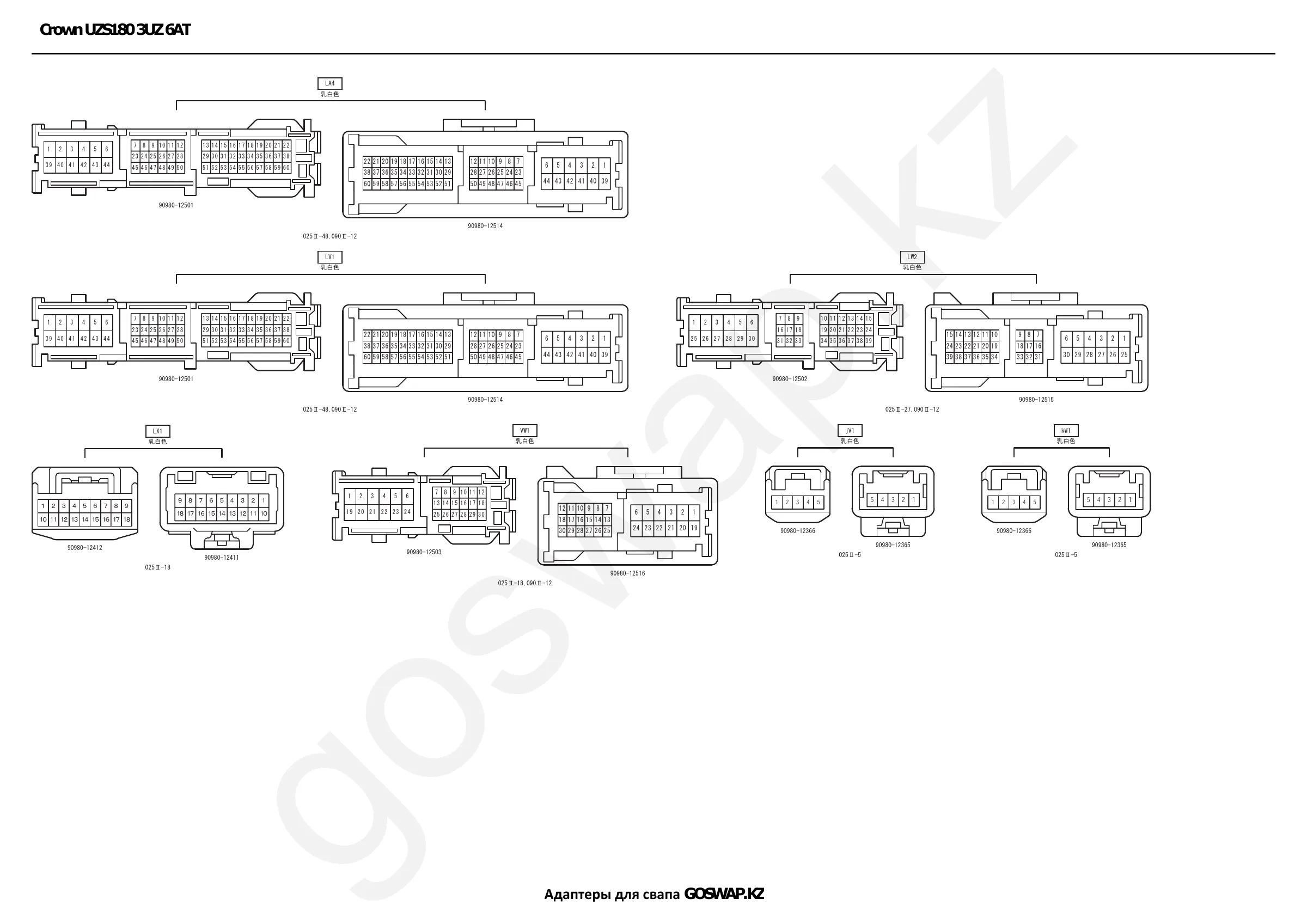

Page 18 of 21 · open full size

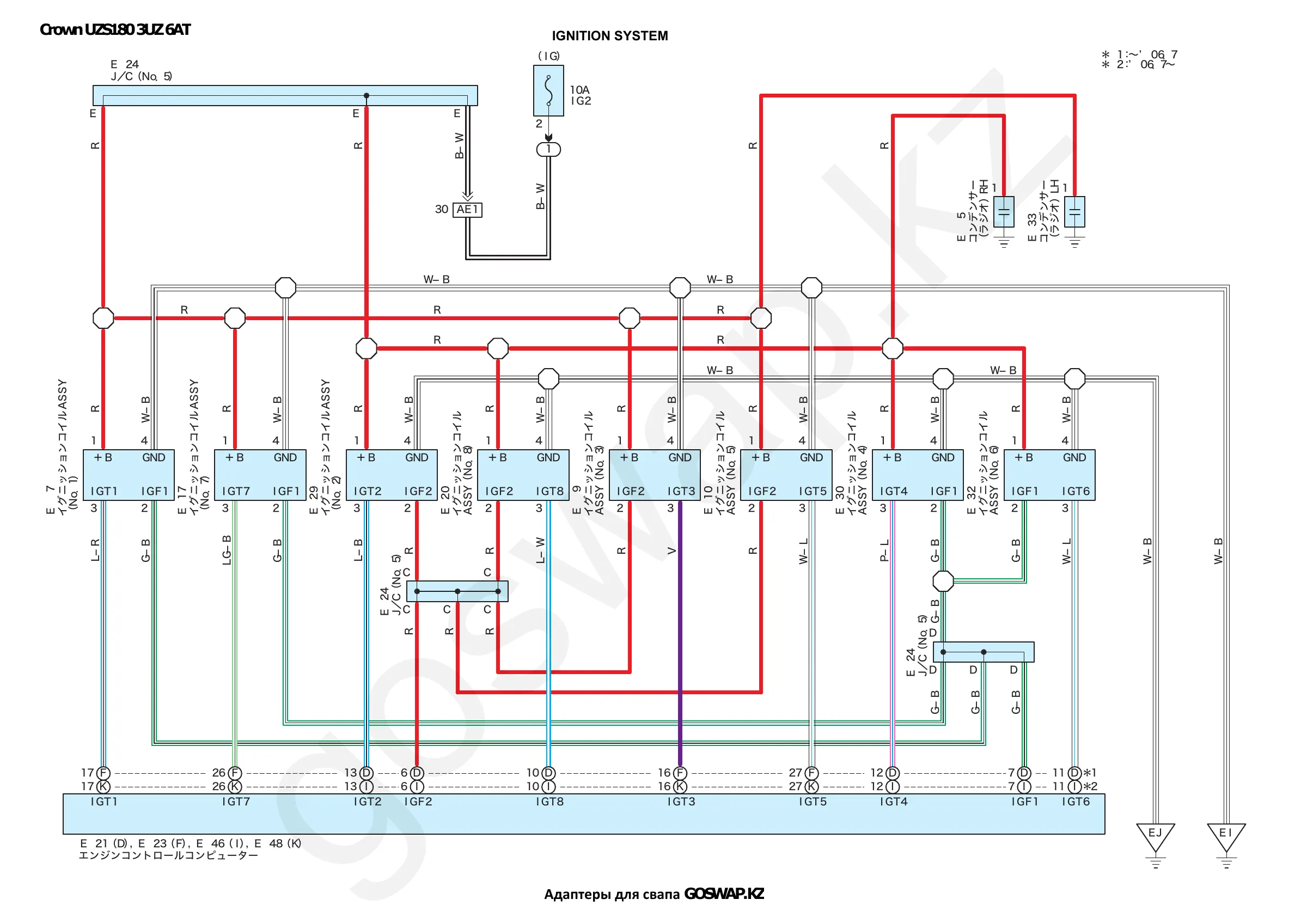

Page 19 of 21 · open full size

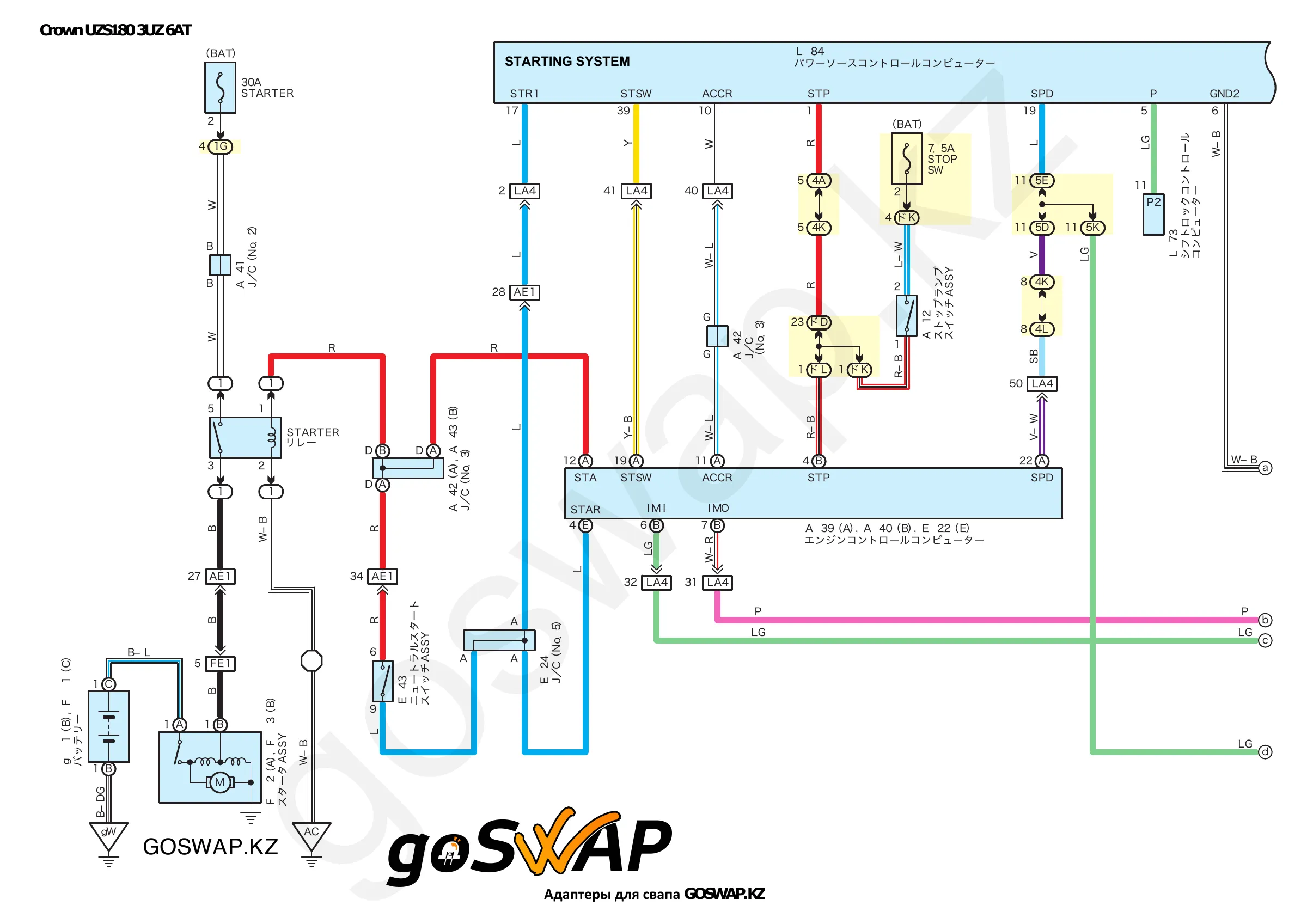

Page 20 of 21 · open full size

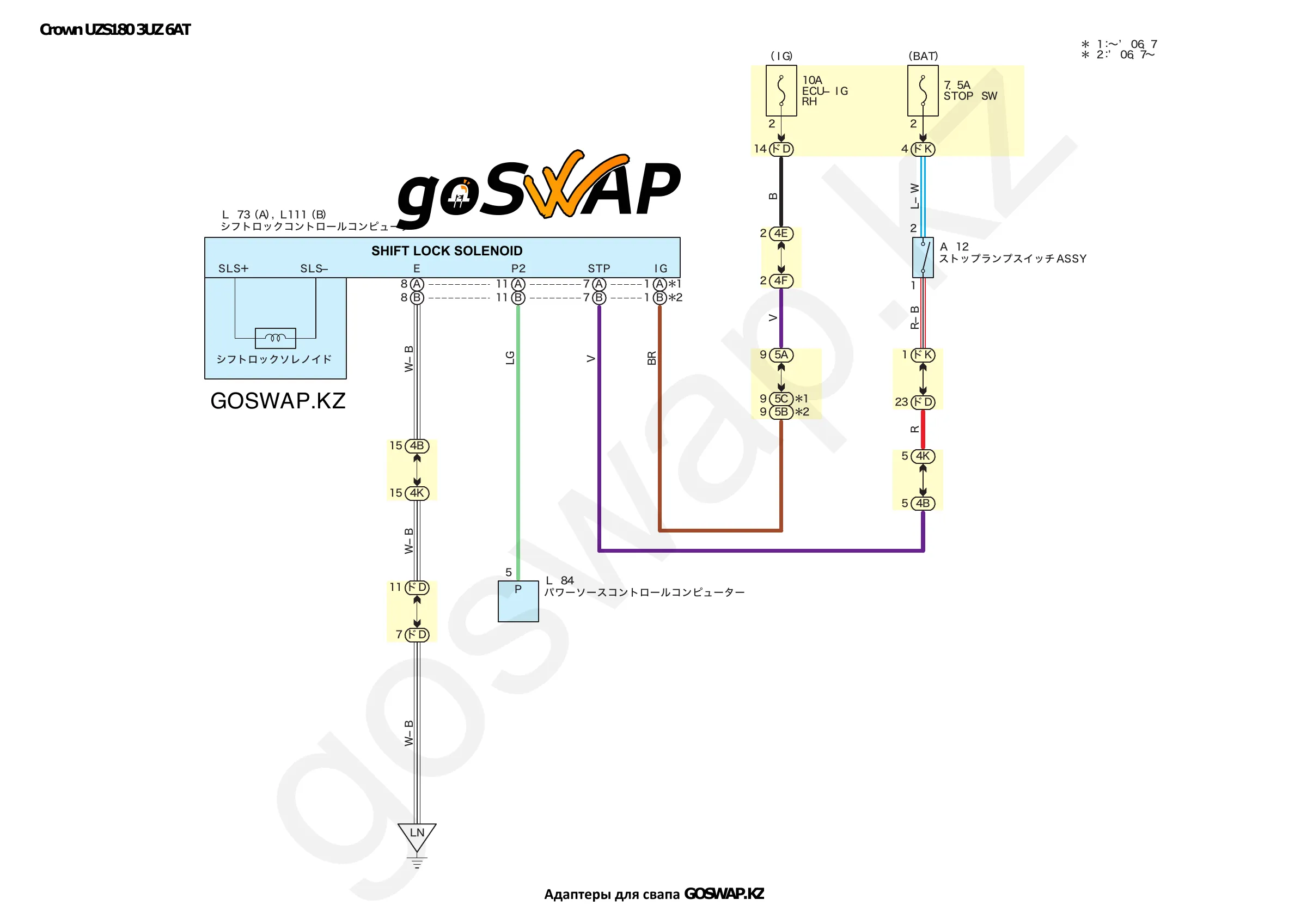

Page 21 of 21 · open full size The sheets of this diagram are taken from open sources on the internet. GoSwap is not responsible for their accuracy.
