Wiring diagram 1UZ VVTi · Toyota Celsior UCF20
Diagram sheets
Download PDF

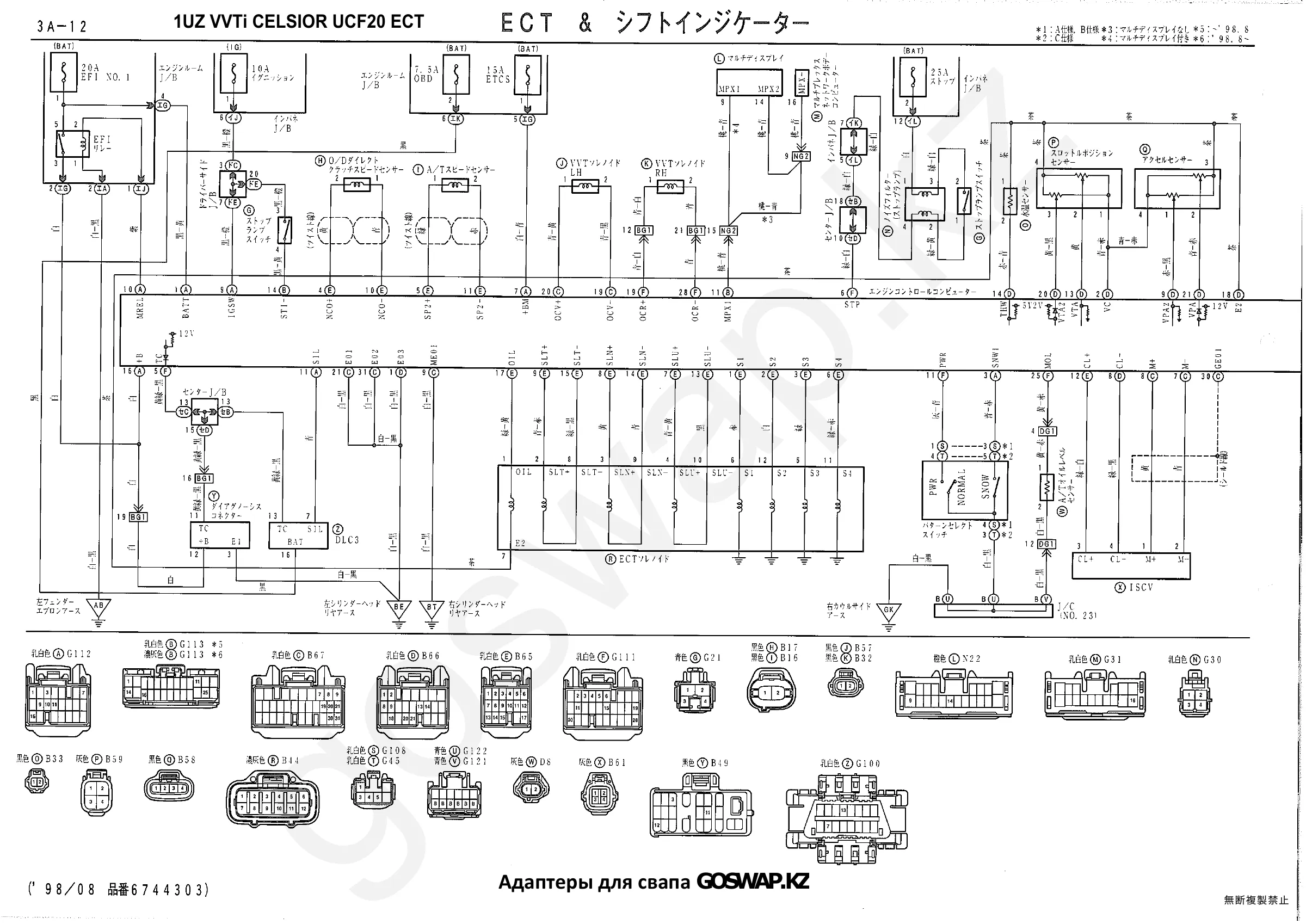

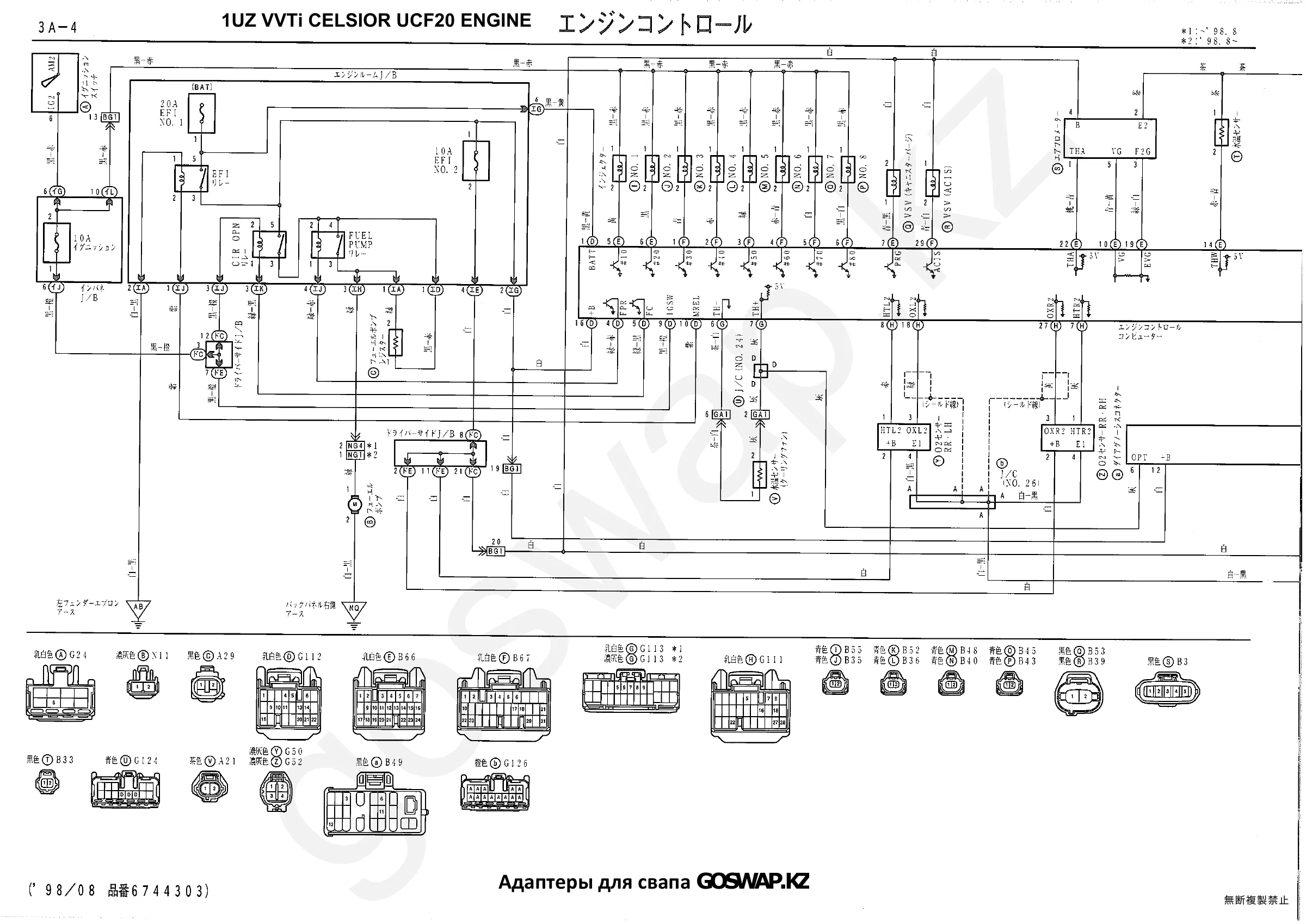

Page 1 of 7 · open full size

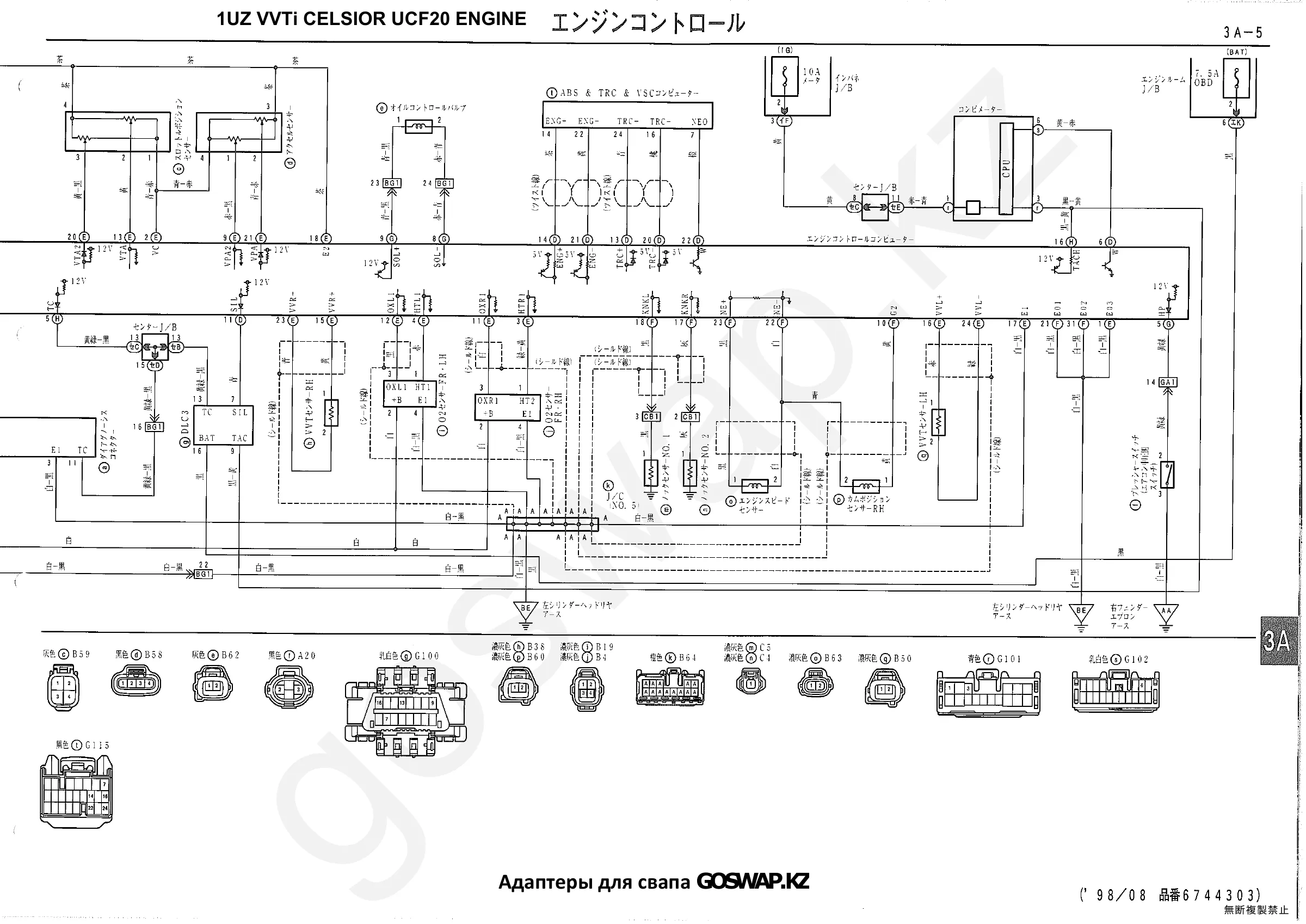

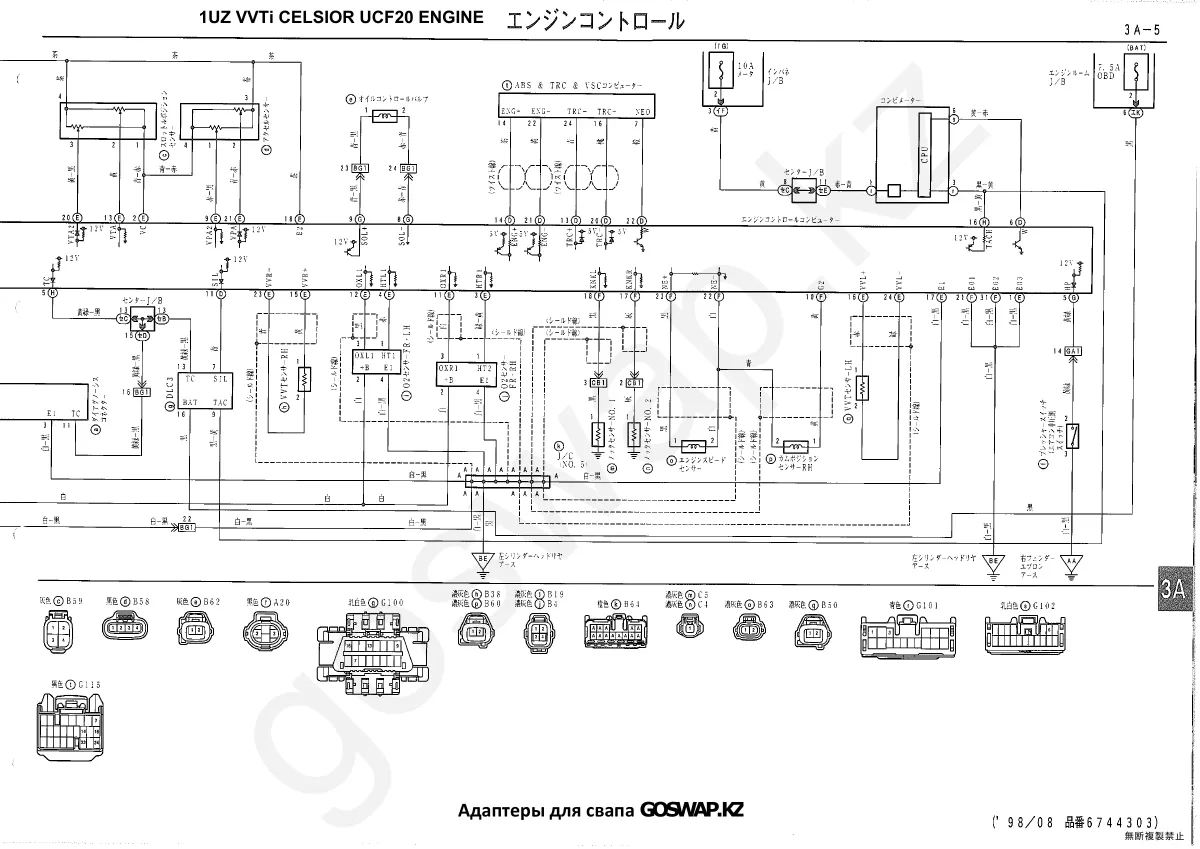

Page 2 of 7 · open full size Other GoSwap devices
uFAN universal fan adapter Manual
Speedometer / Tachometer "Divider" Adapter Manual
BMW F Series seat adapter Manual
Universal Air Conditioning Adapter uAC Manual
BMW E70 seat adapter Manual
AC AMP universal air conditioning amplifier Manual
BMW F Series LIN - NISSAN seat adapter Manual
BMW E Series Low Line seat adapter Manual

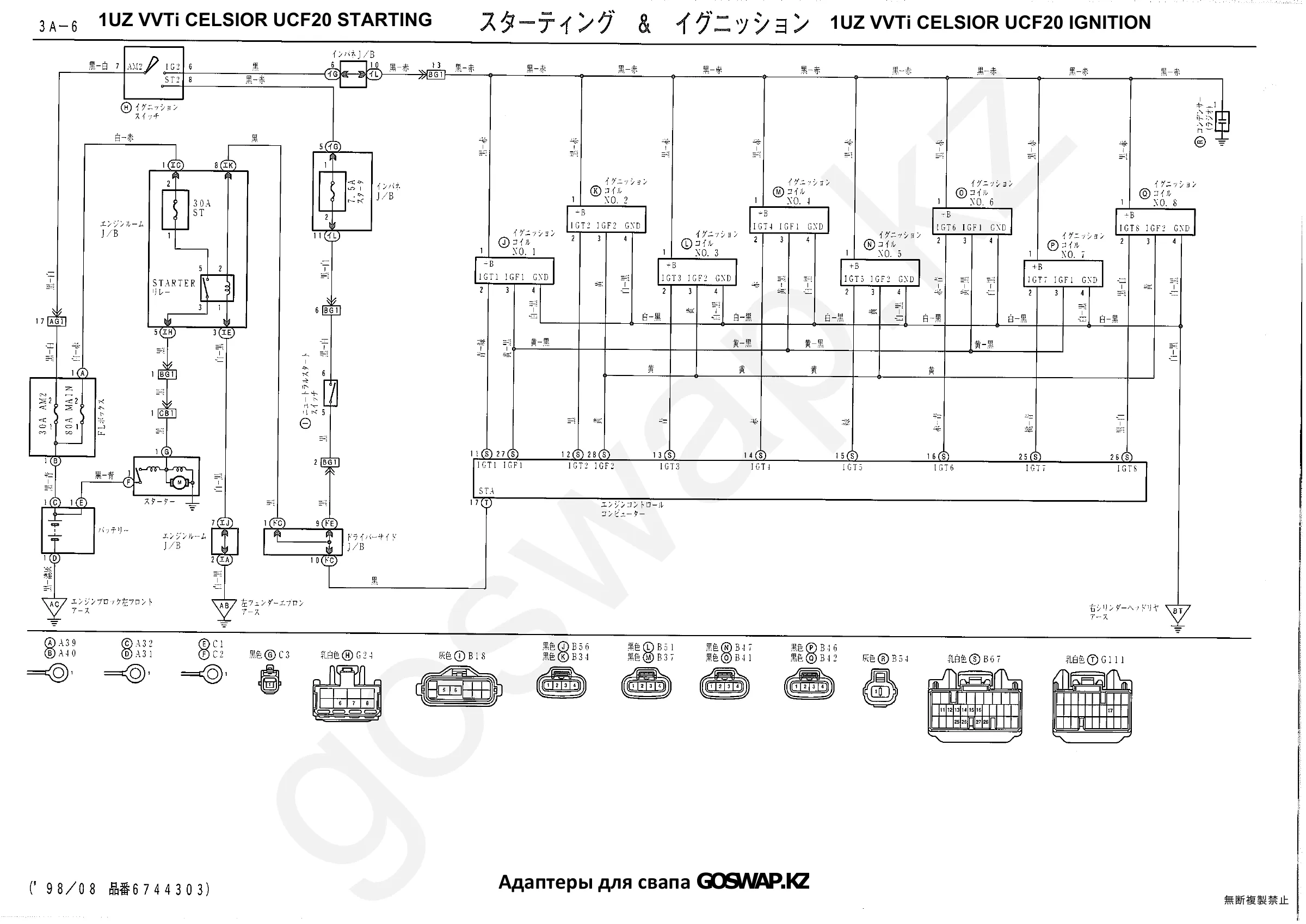

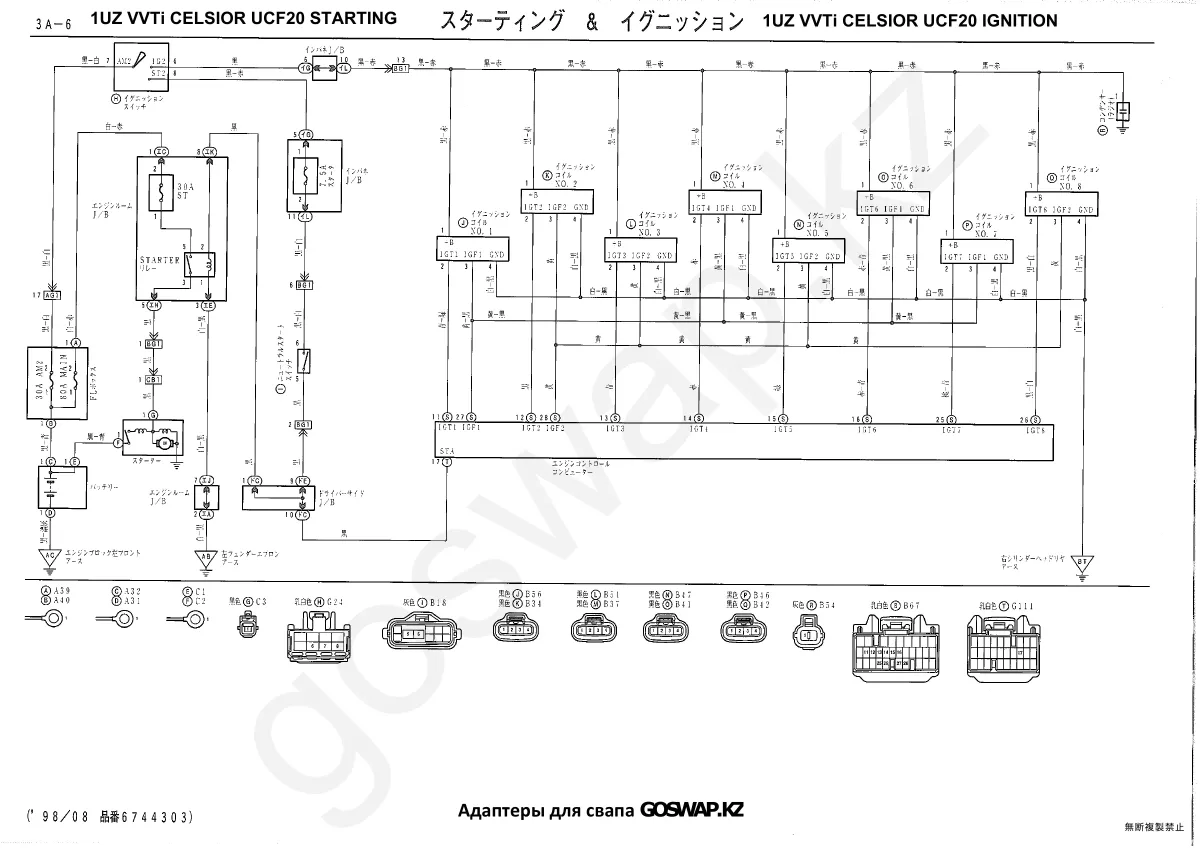

Page 3 of 7 · open full size
Page 4 of 7 · open full size

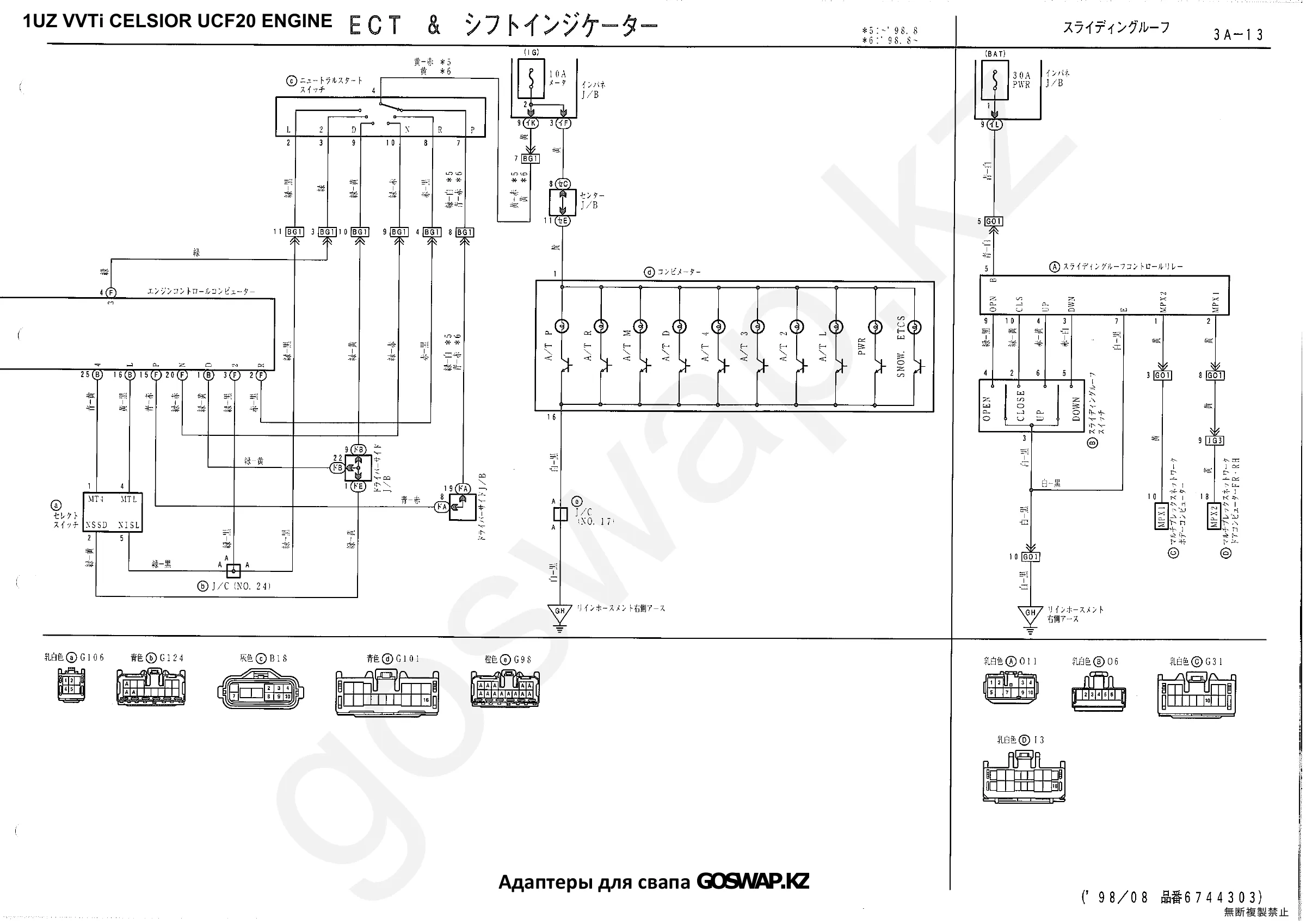

Page 5 of 7 · open full size Other GoSwap devices

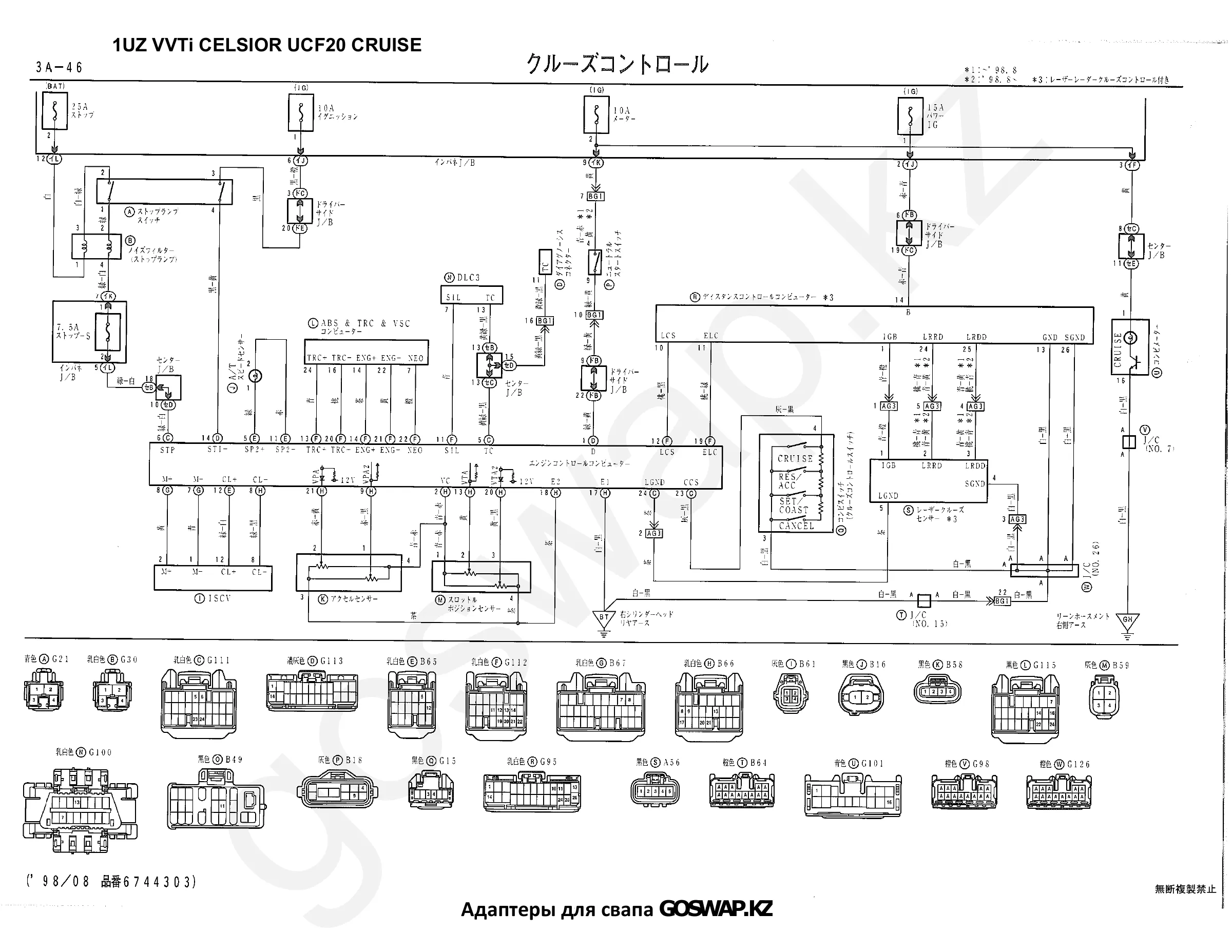

Page 6 of 7 · open full size

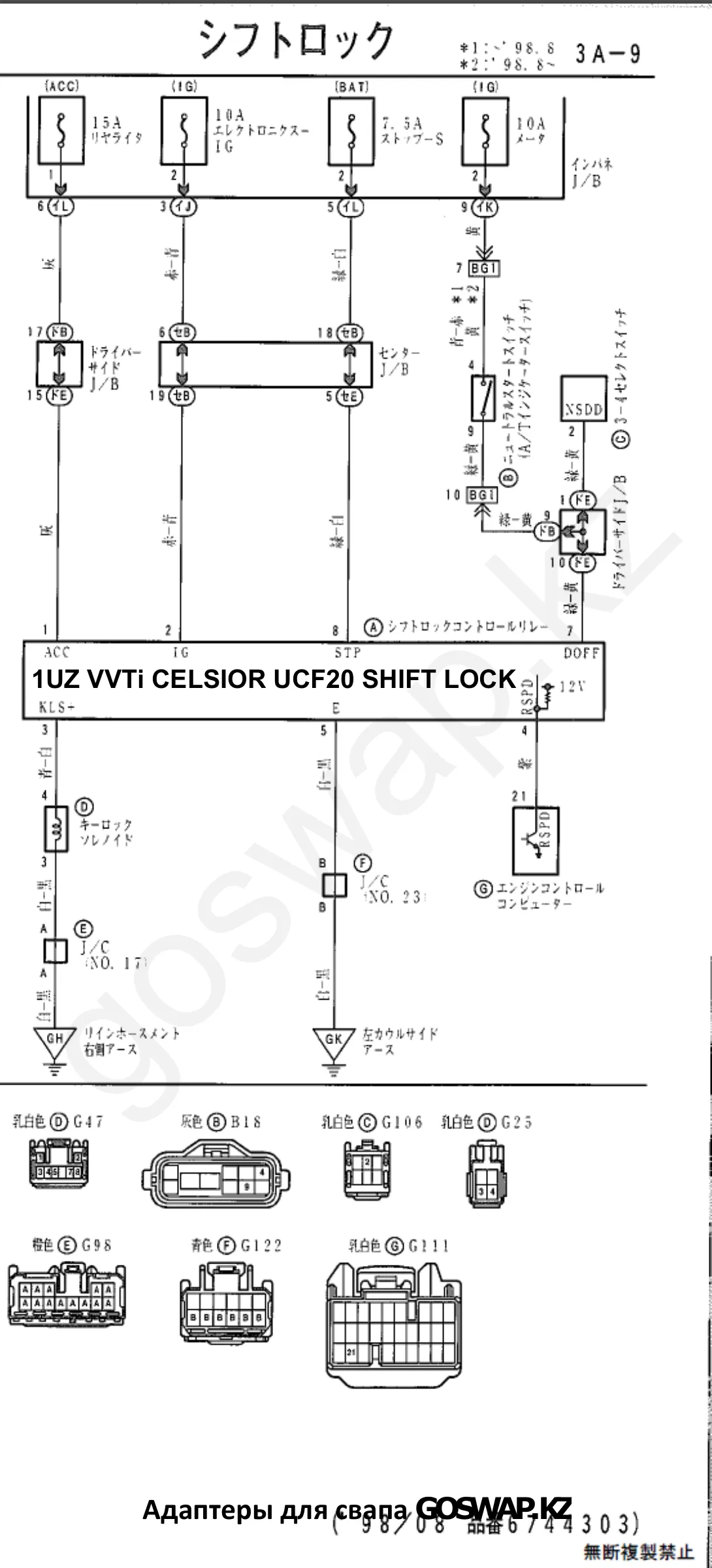

Page 7 of 7 · open full size The sheets of this diagram are taken from open sources on the internet. GoSwap is not responsible for their accuracy.
