Wiring diagram 3UZ 5AT · Lexus GS430 UZS160

ECU part numbers: Lexus GS430 UZS161 — 89661-3A400, 89661-3A401, 89661-30A71.

Diagram sheets

Download PDF

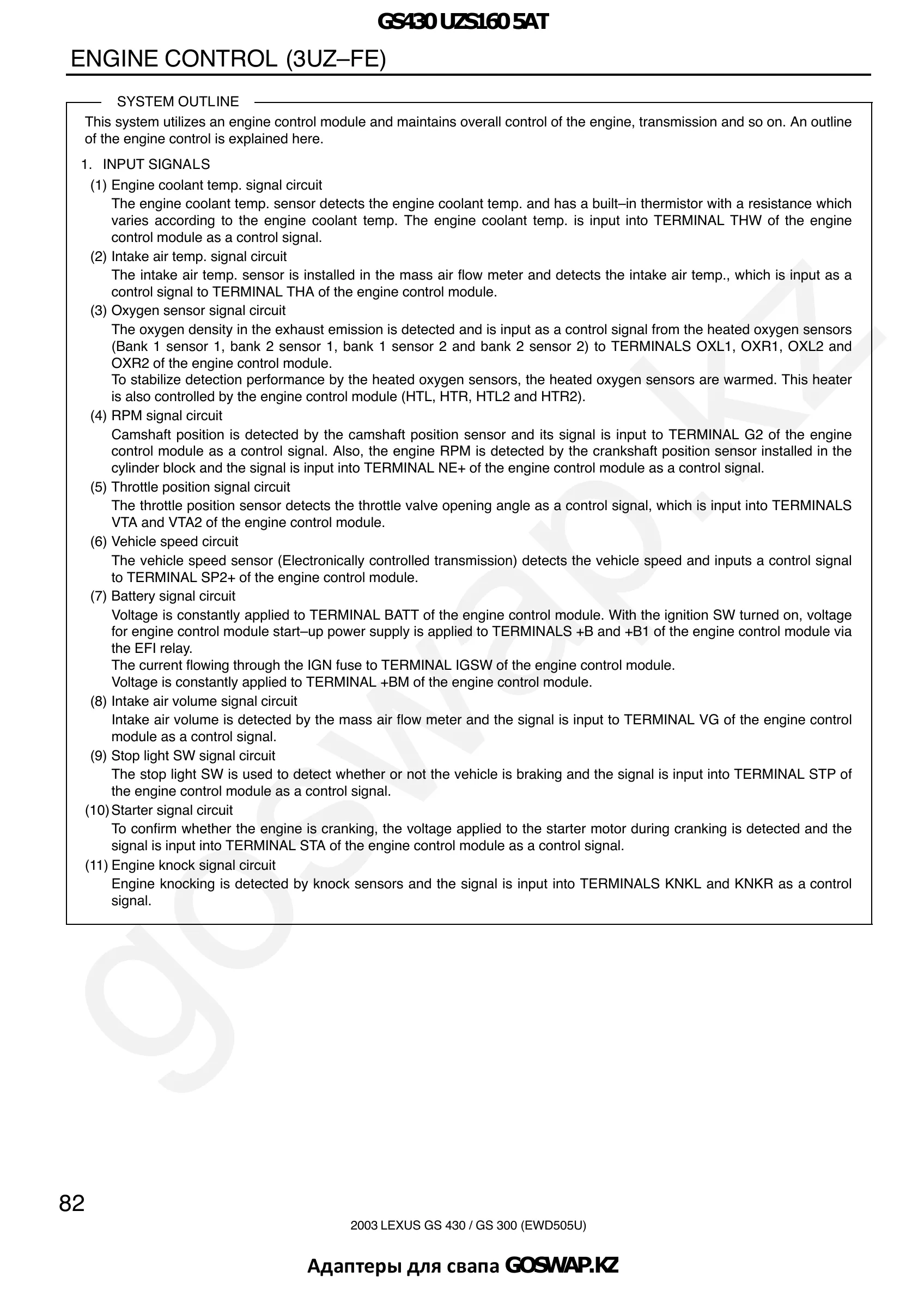

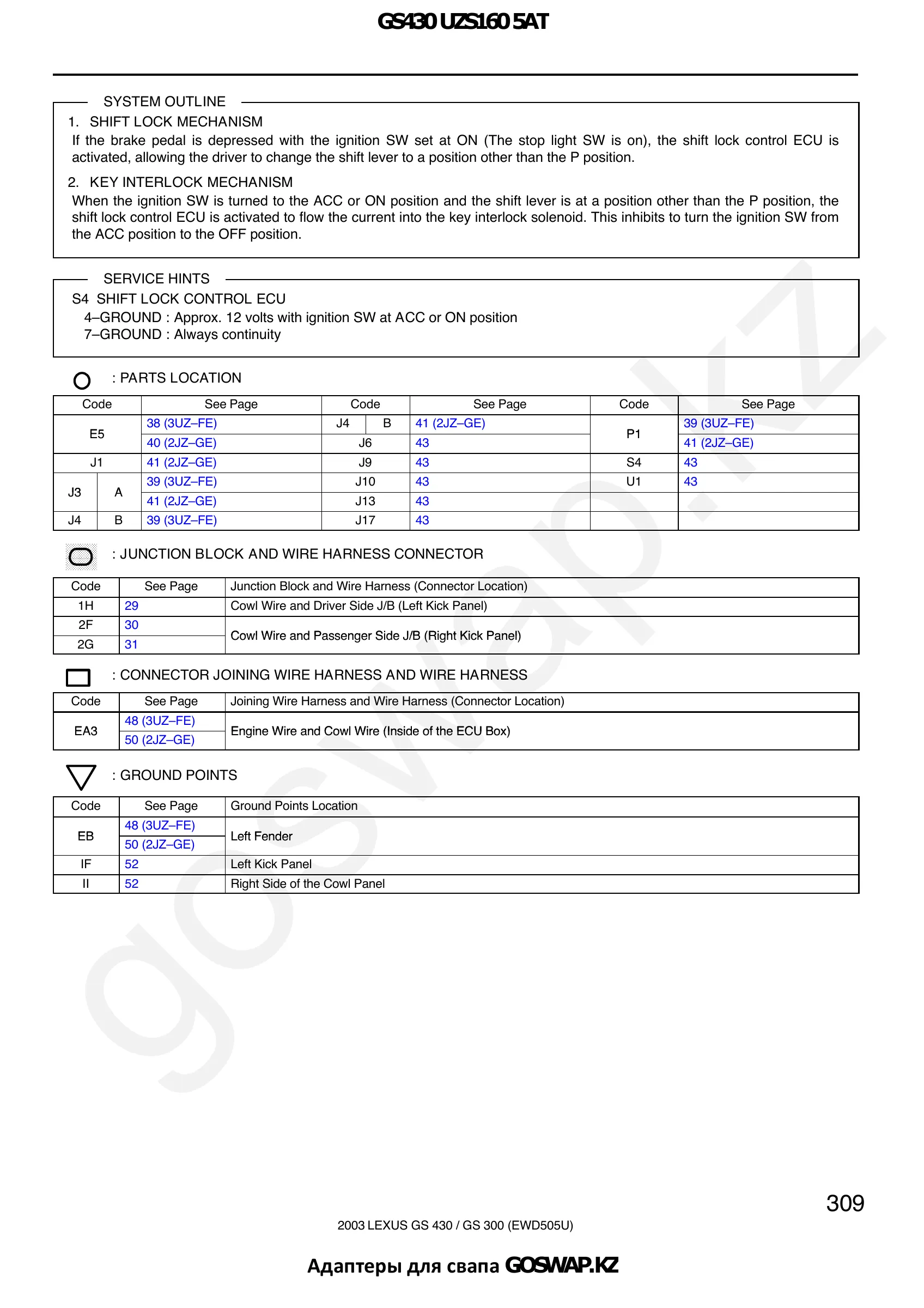

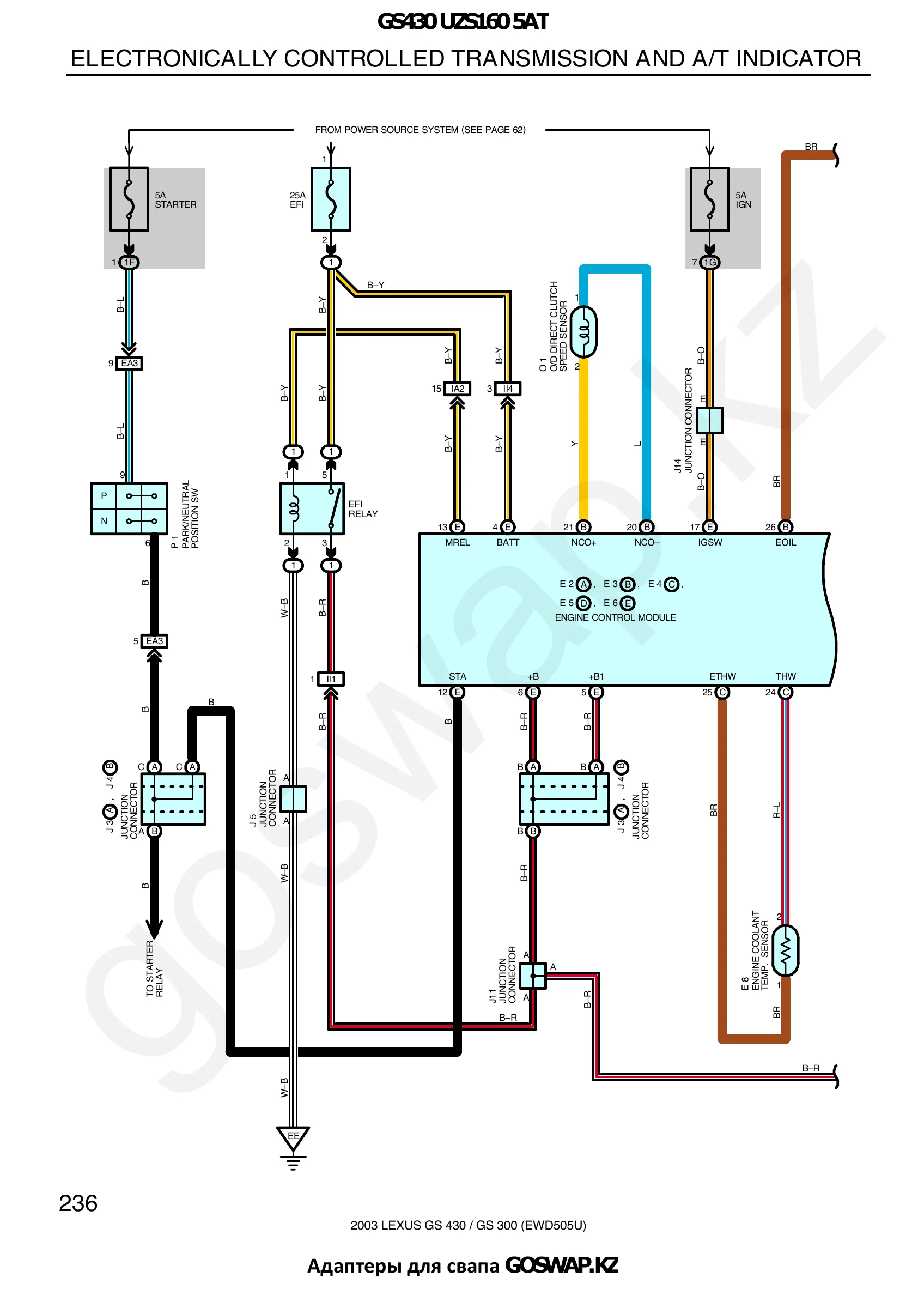

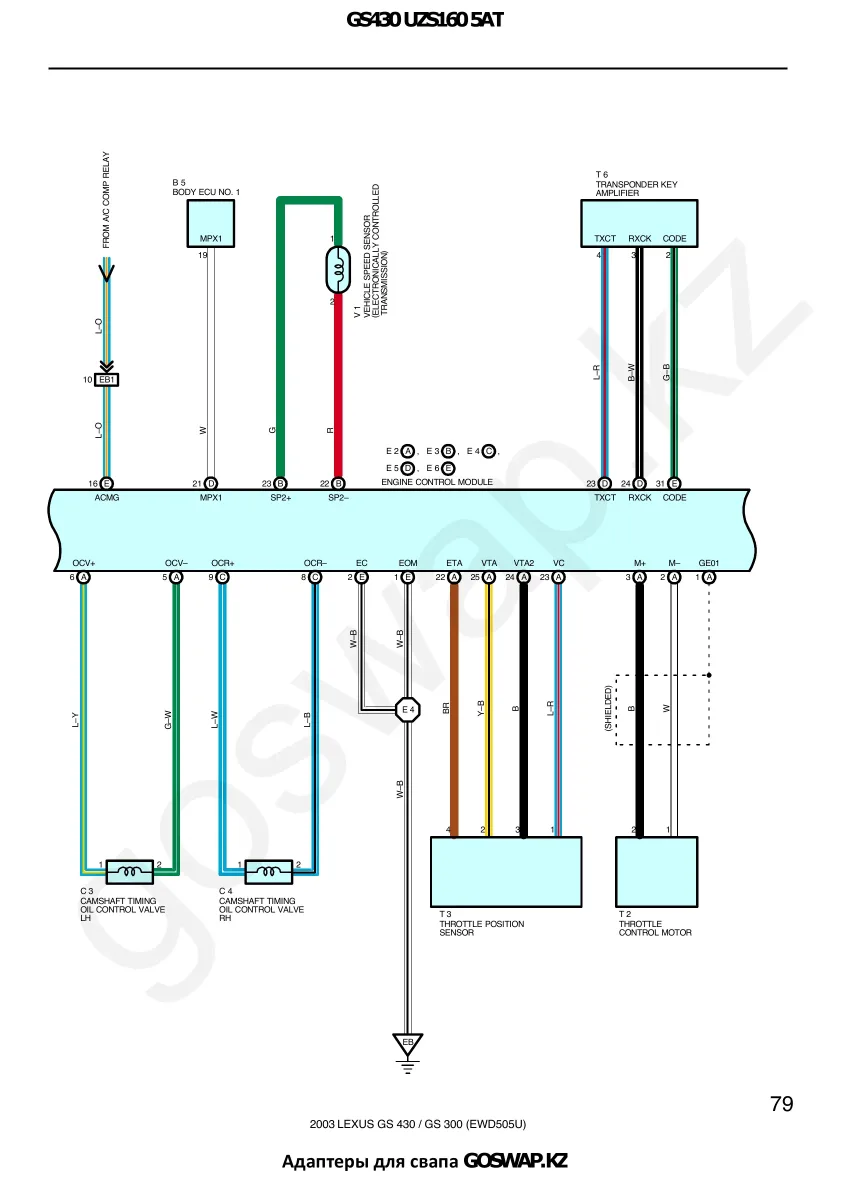

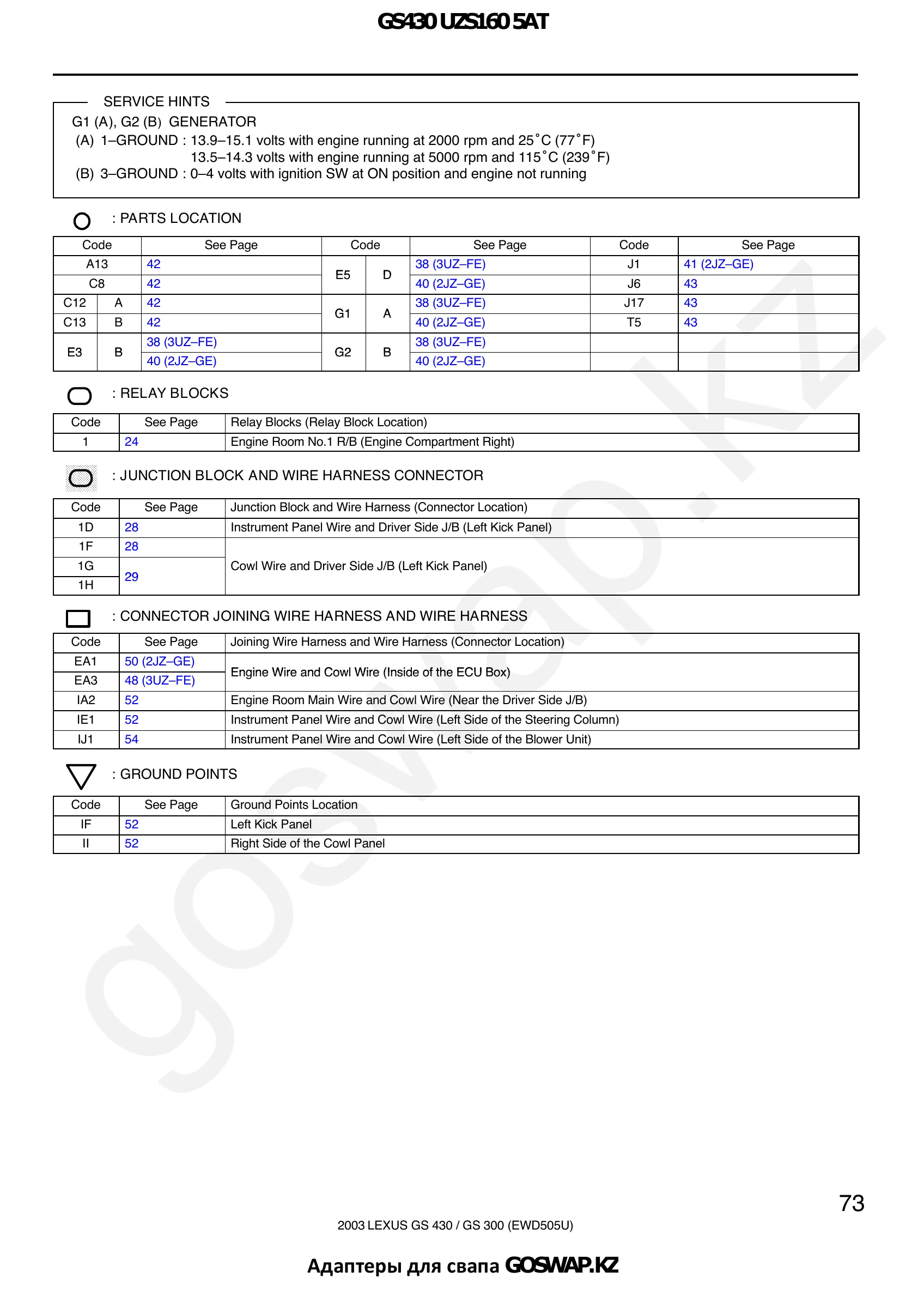

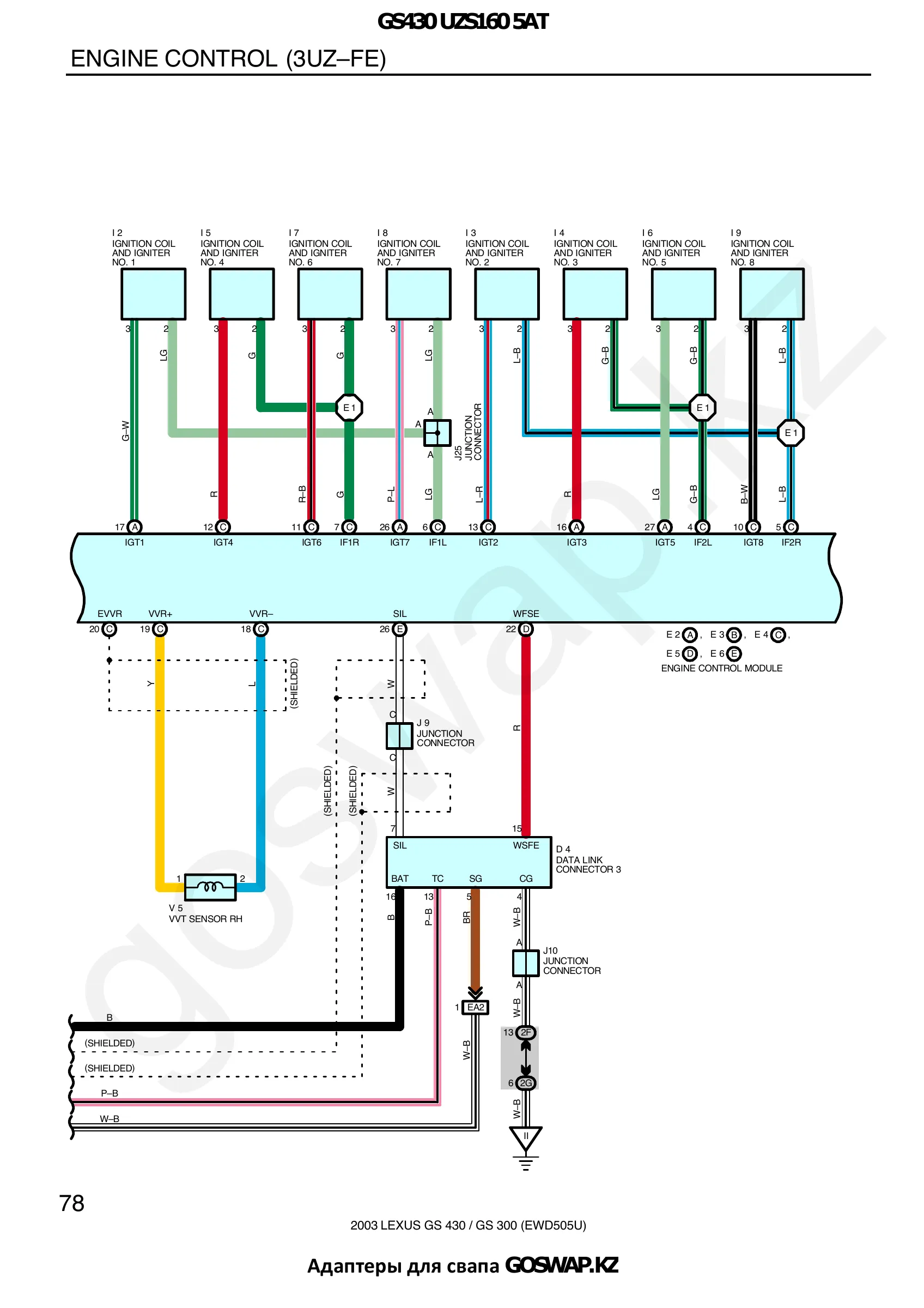

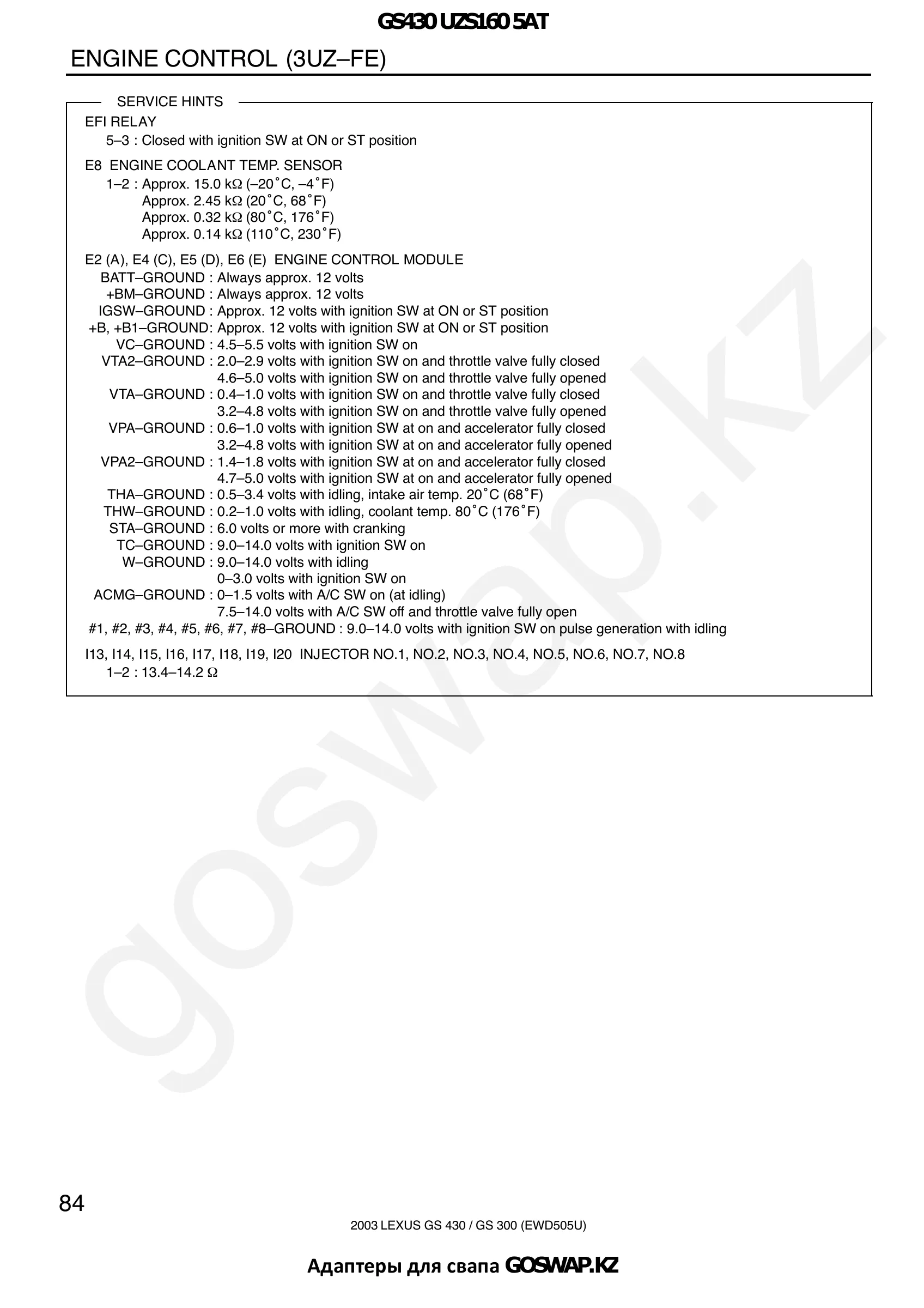

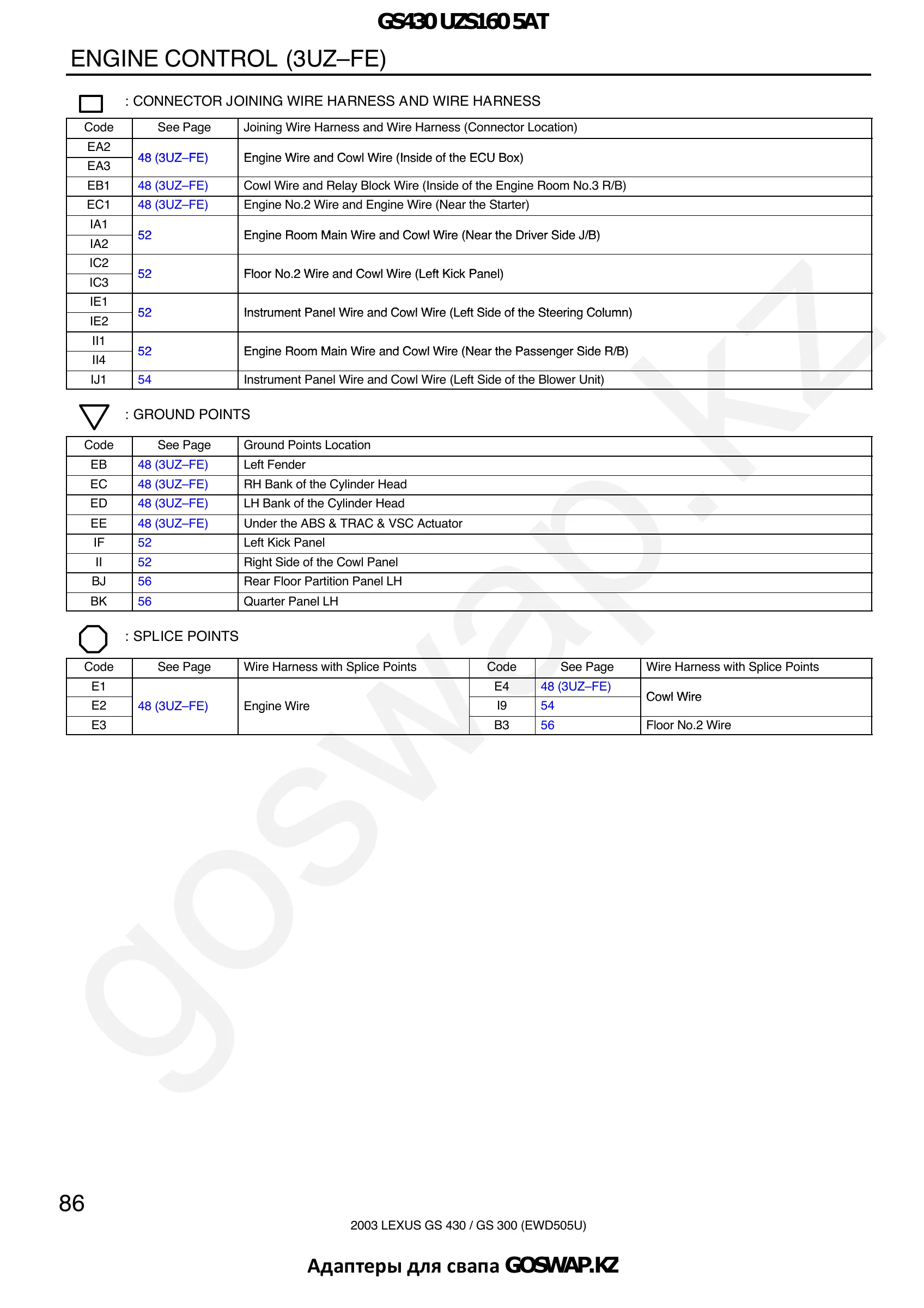

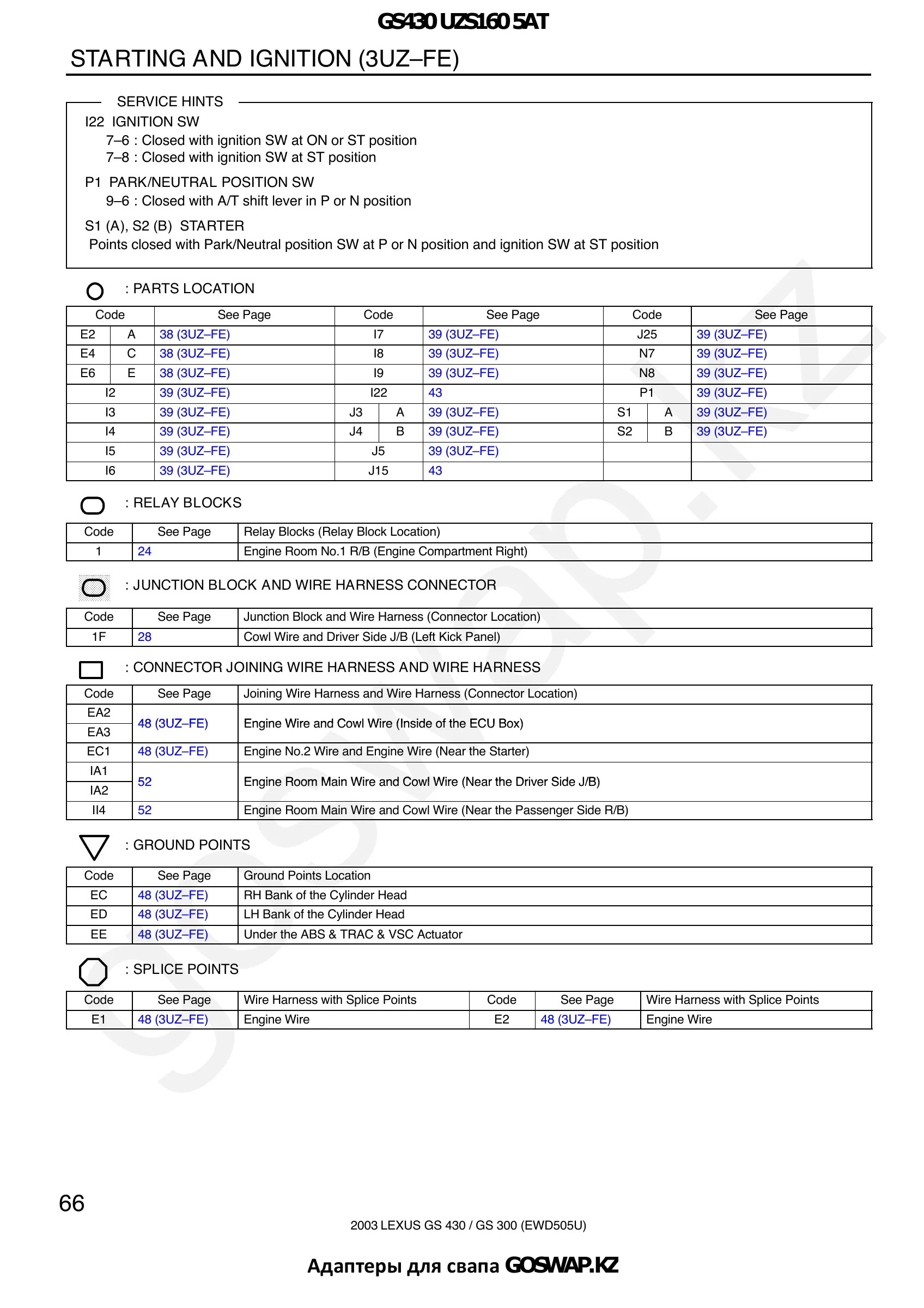

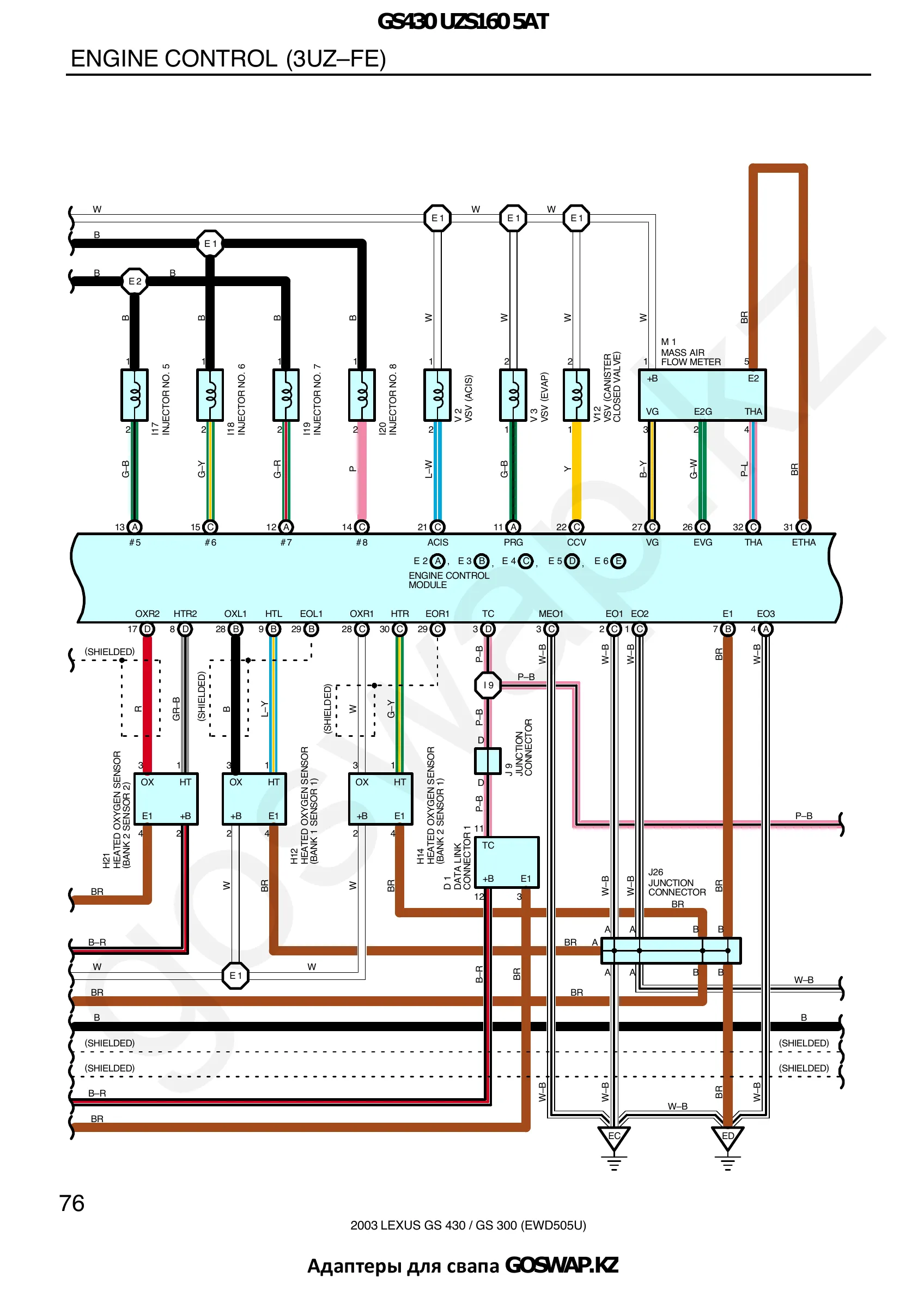

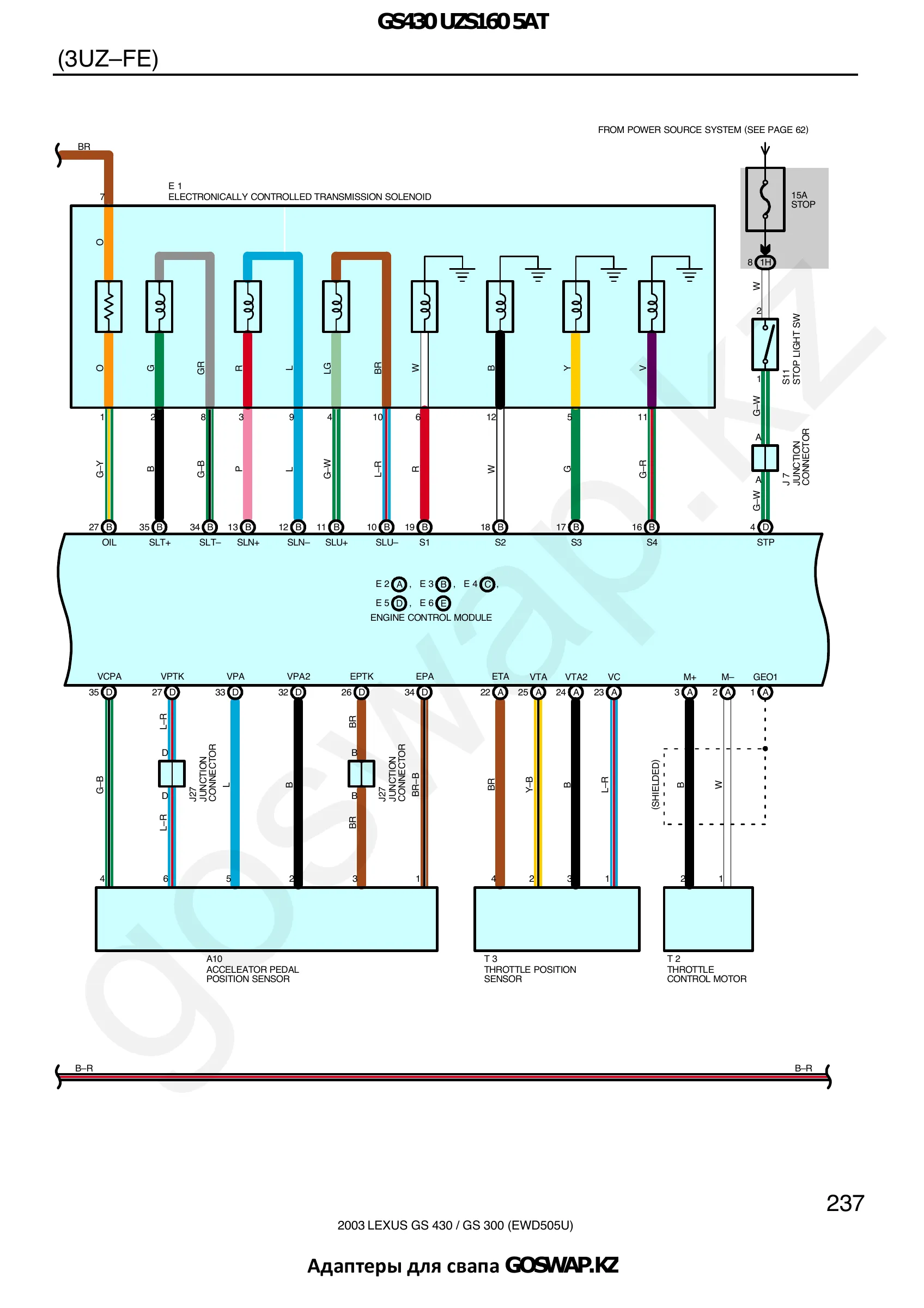

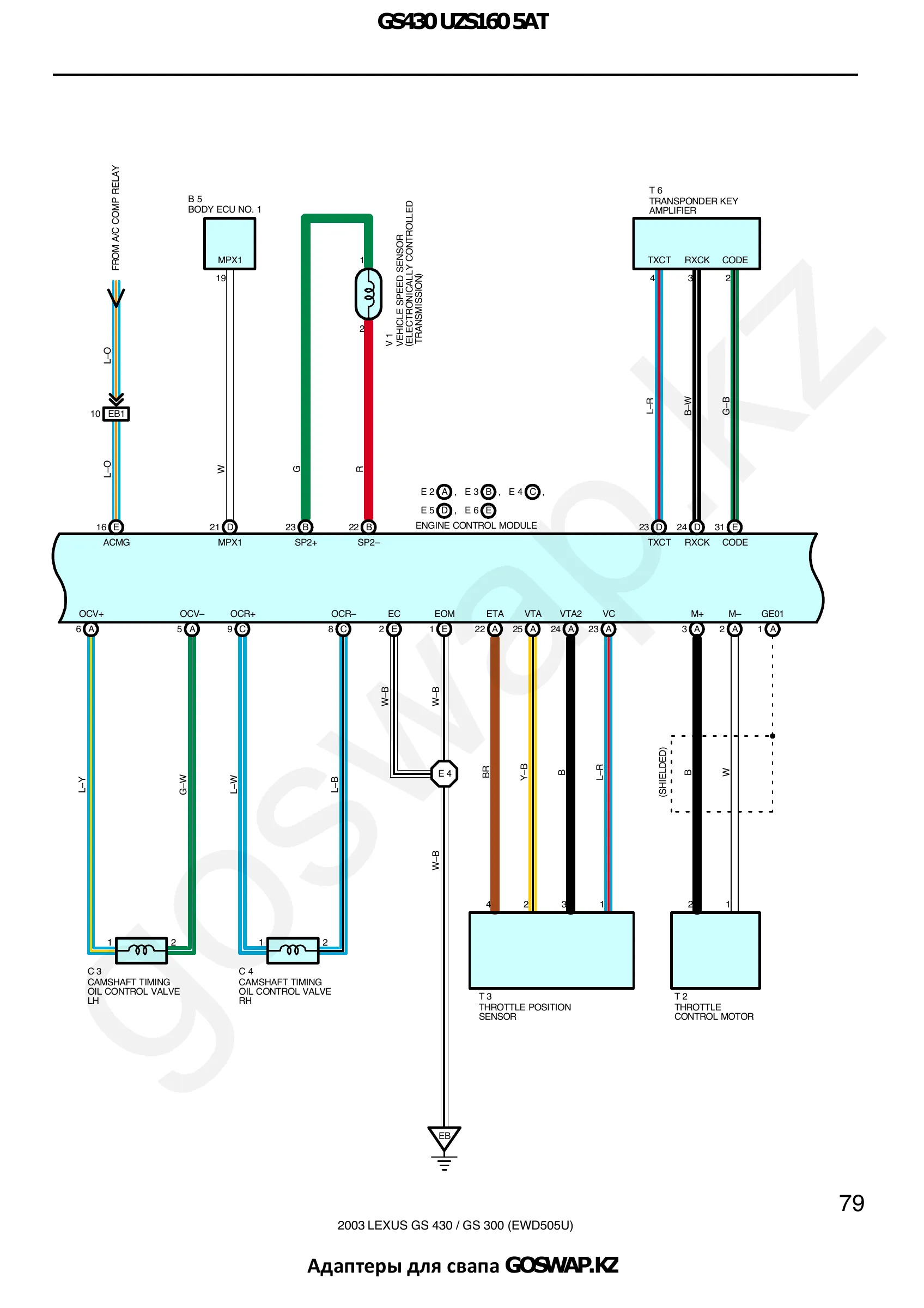

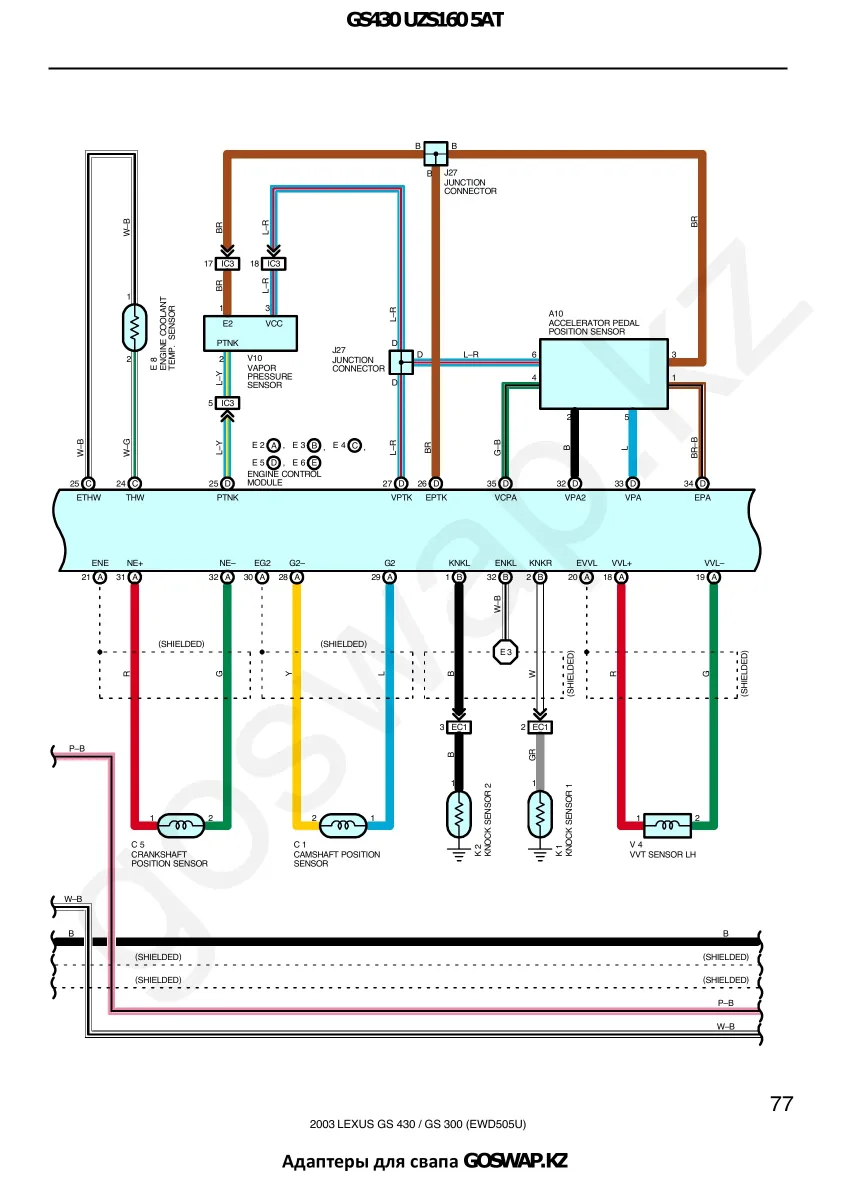

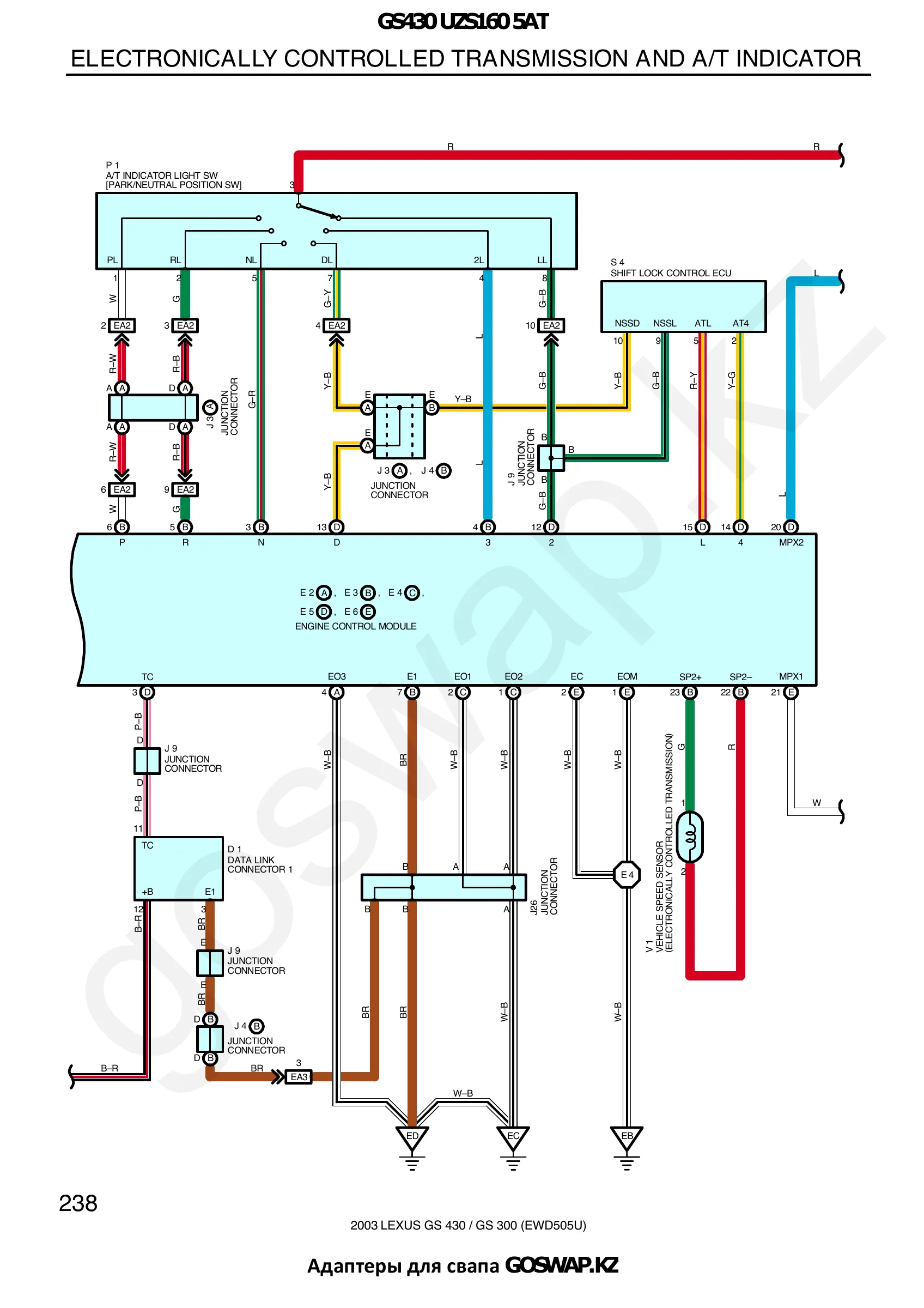

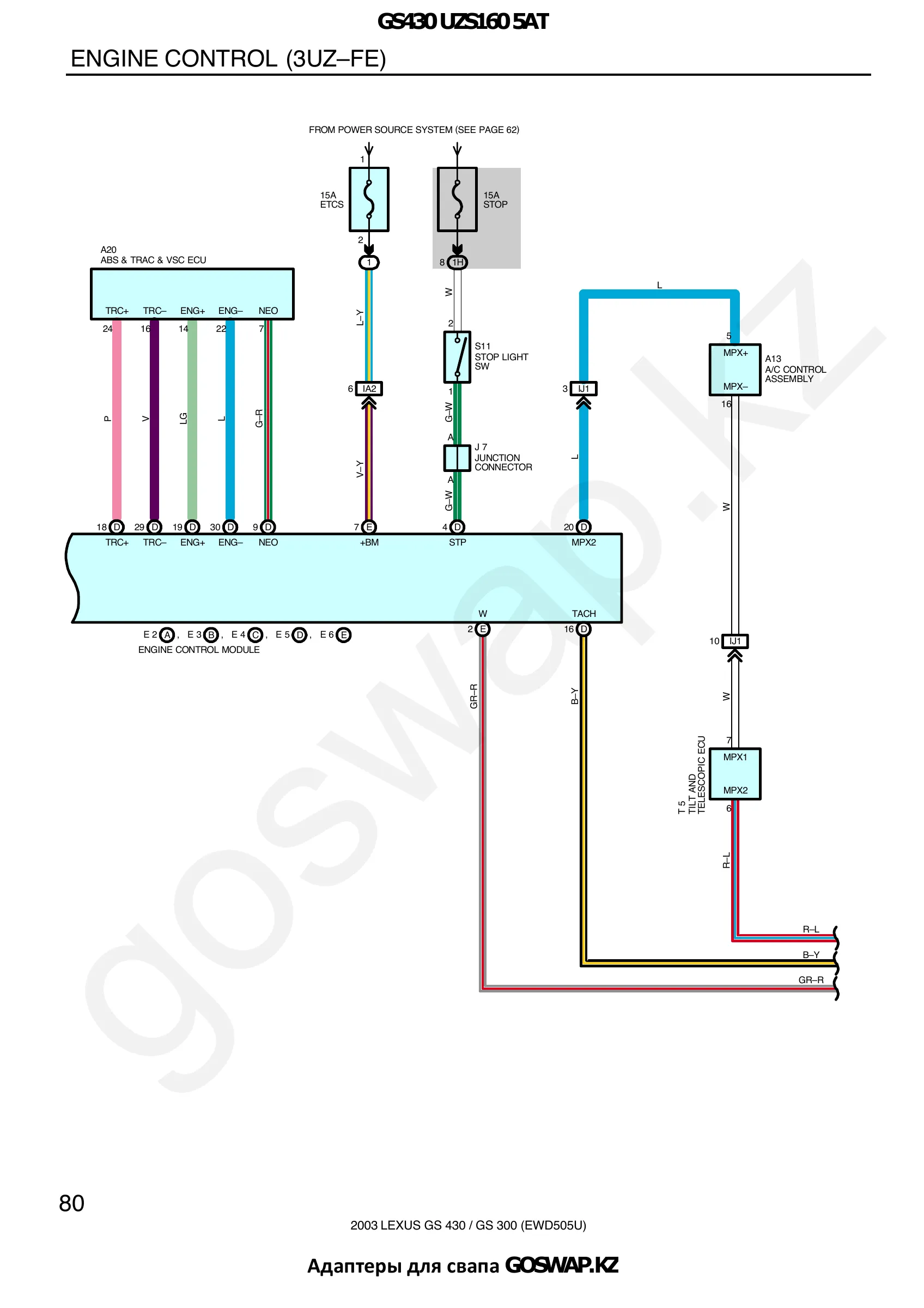

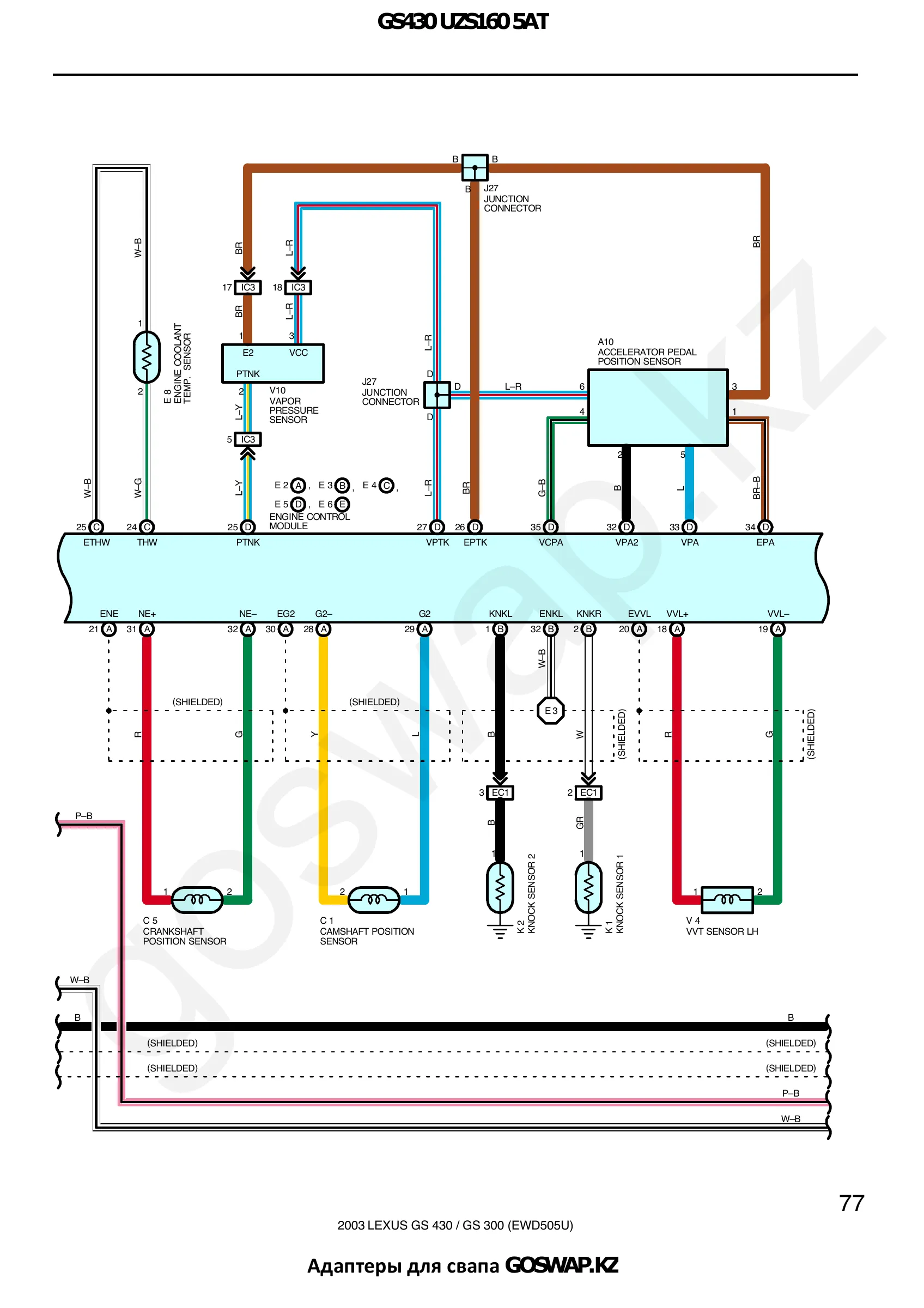

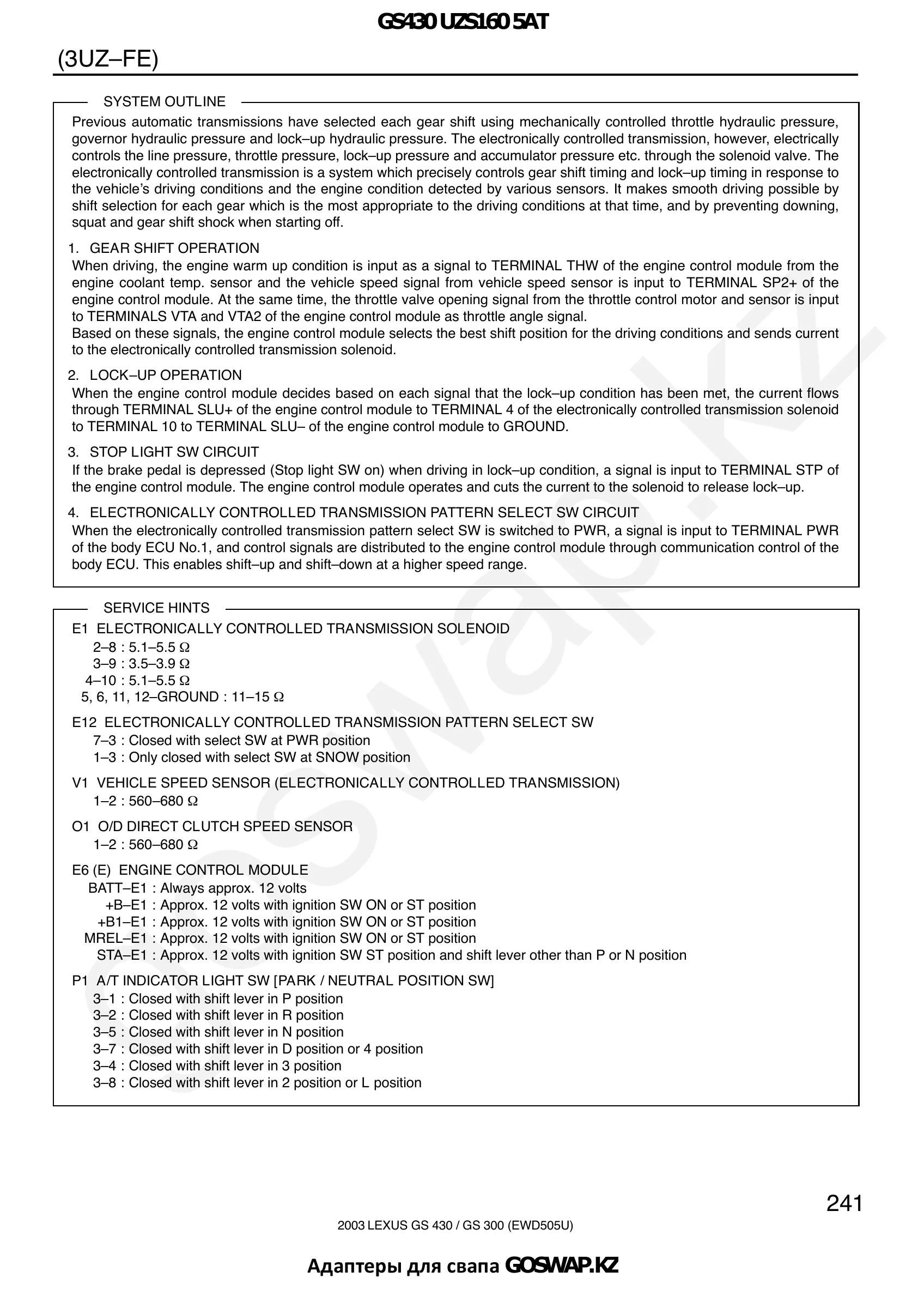

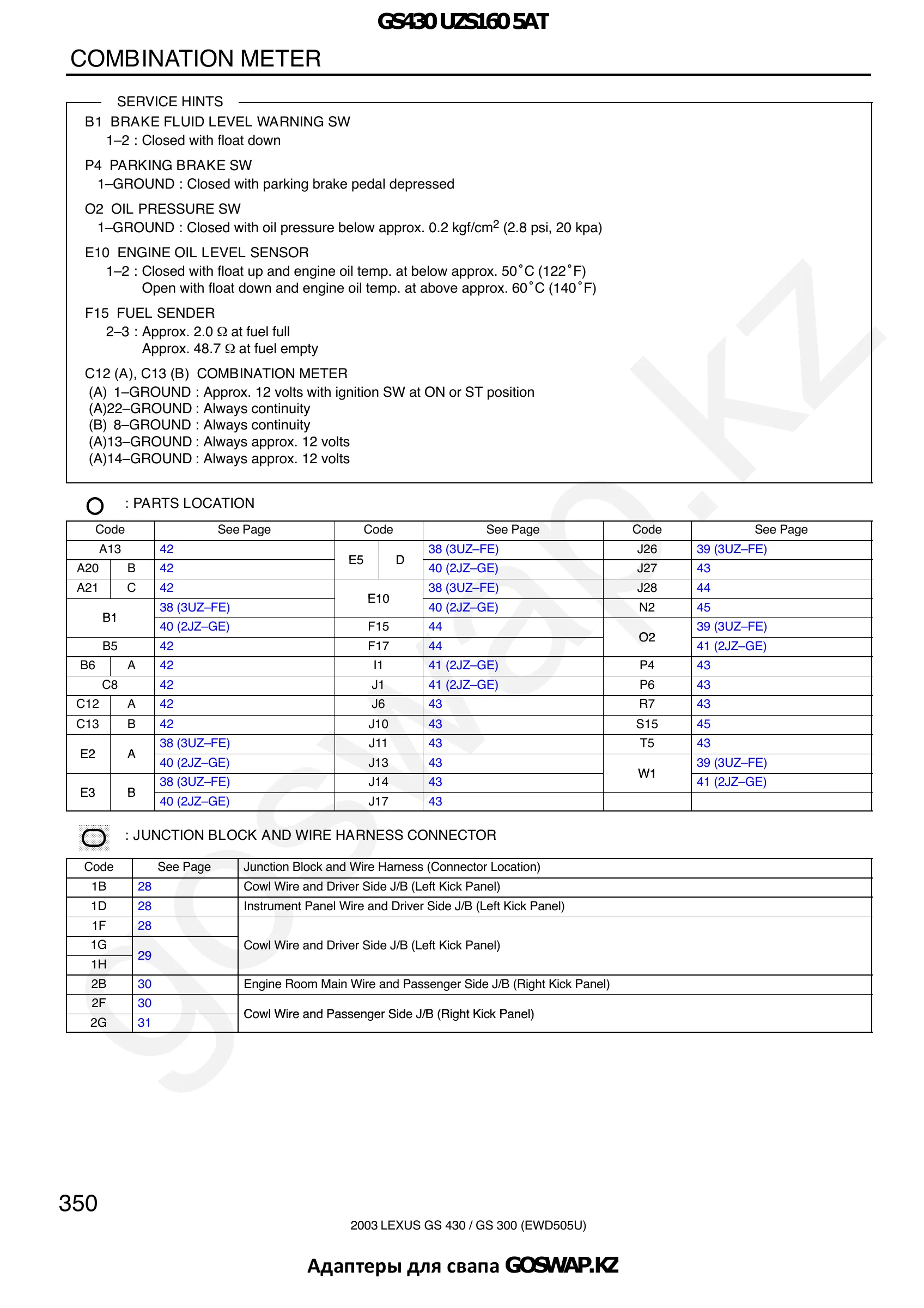

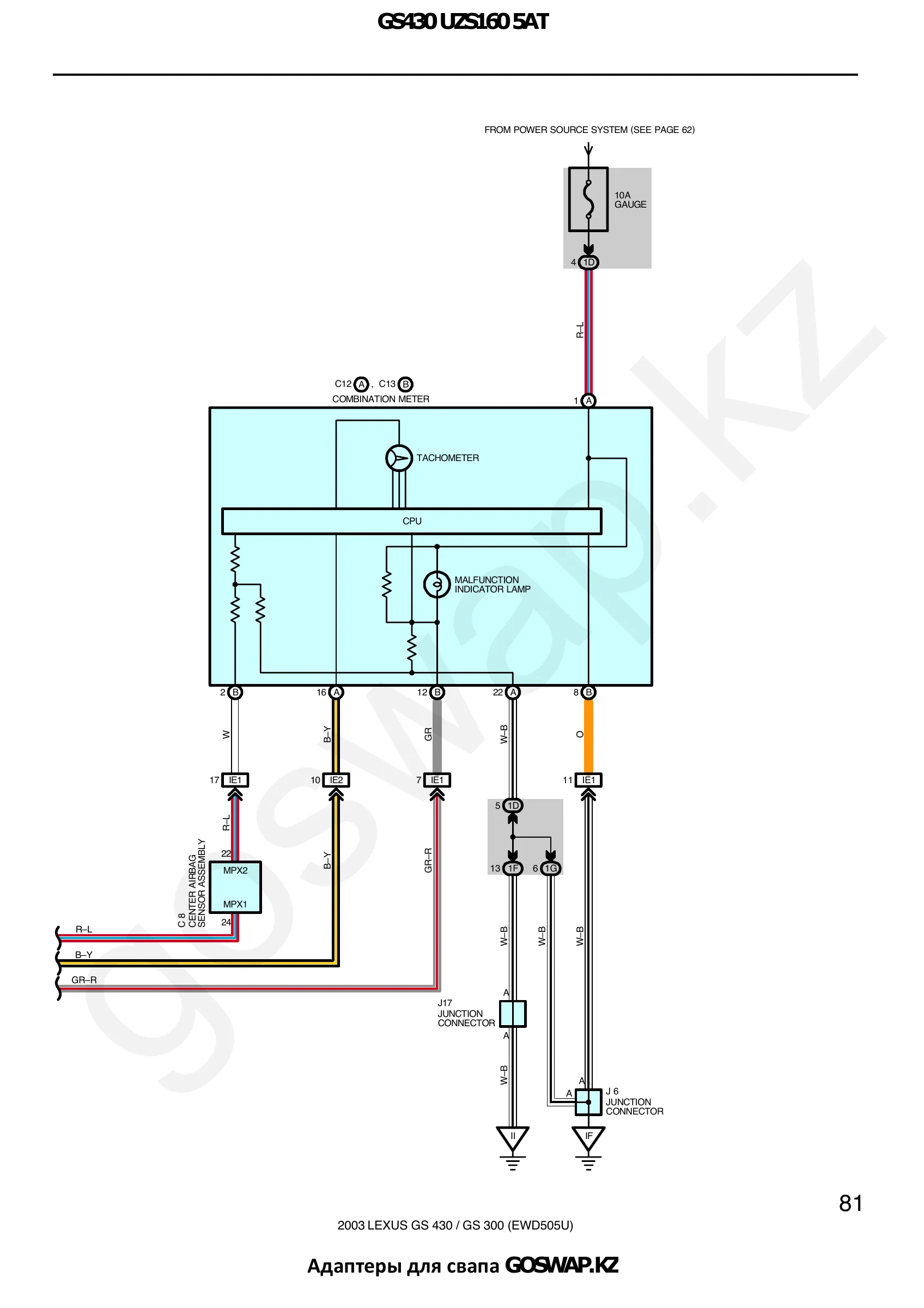

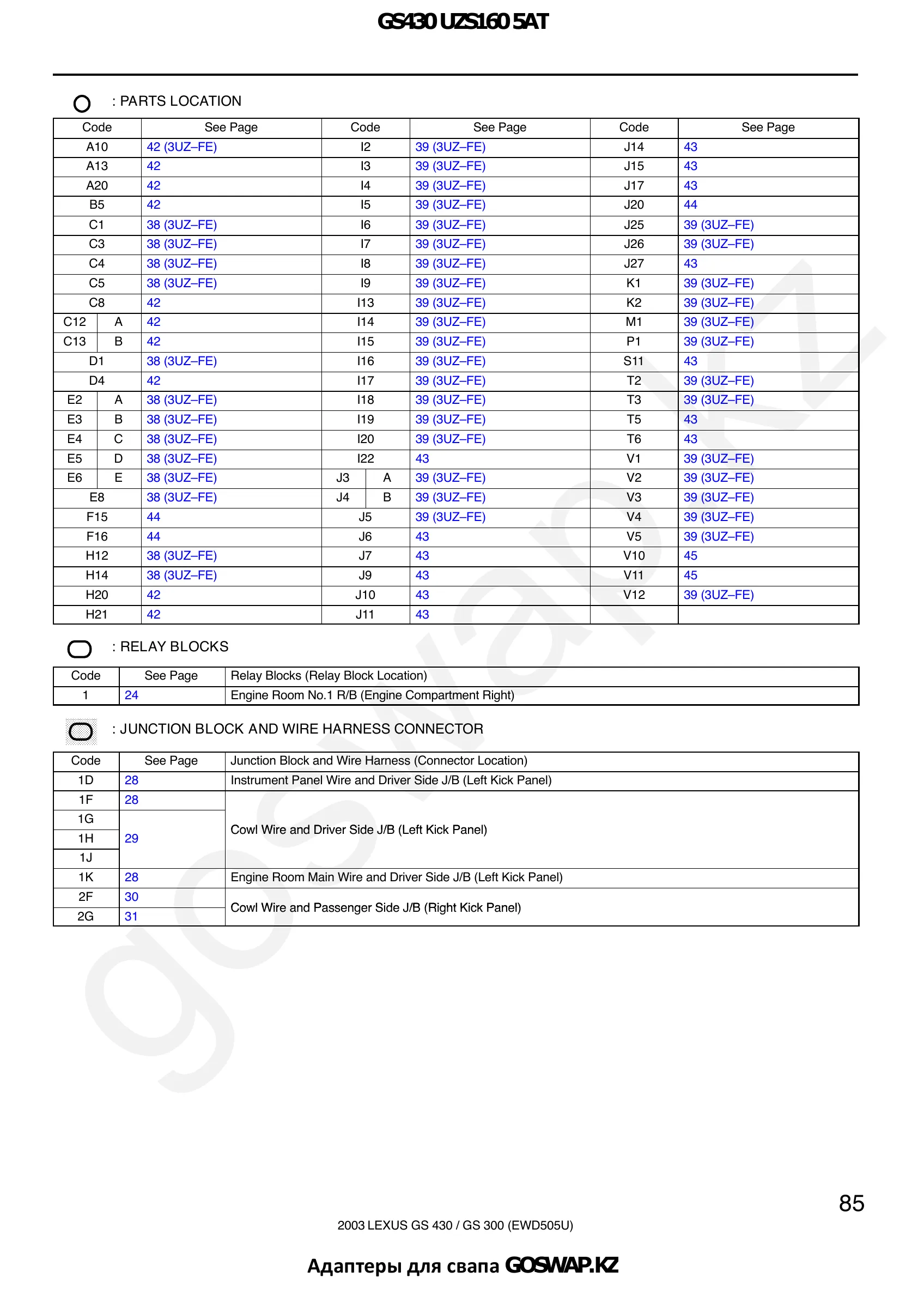

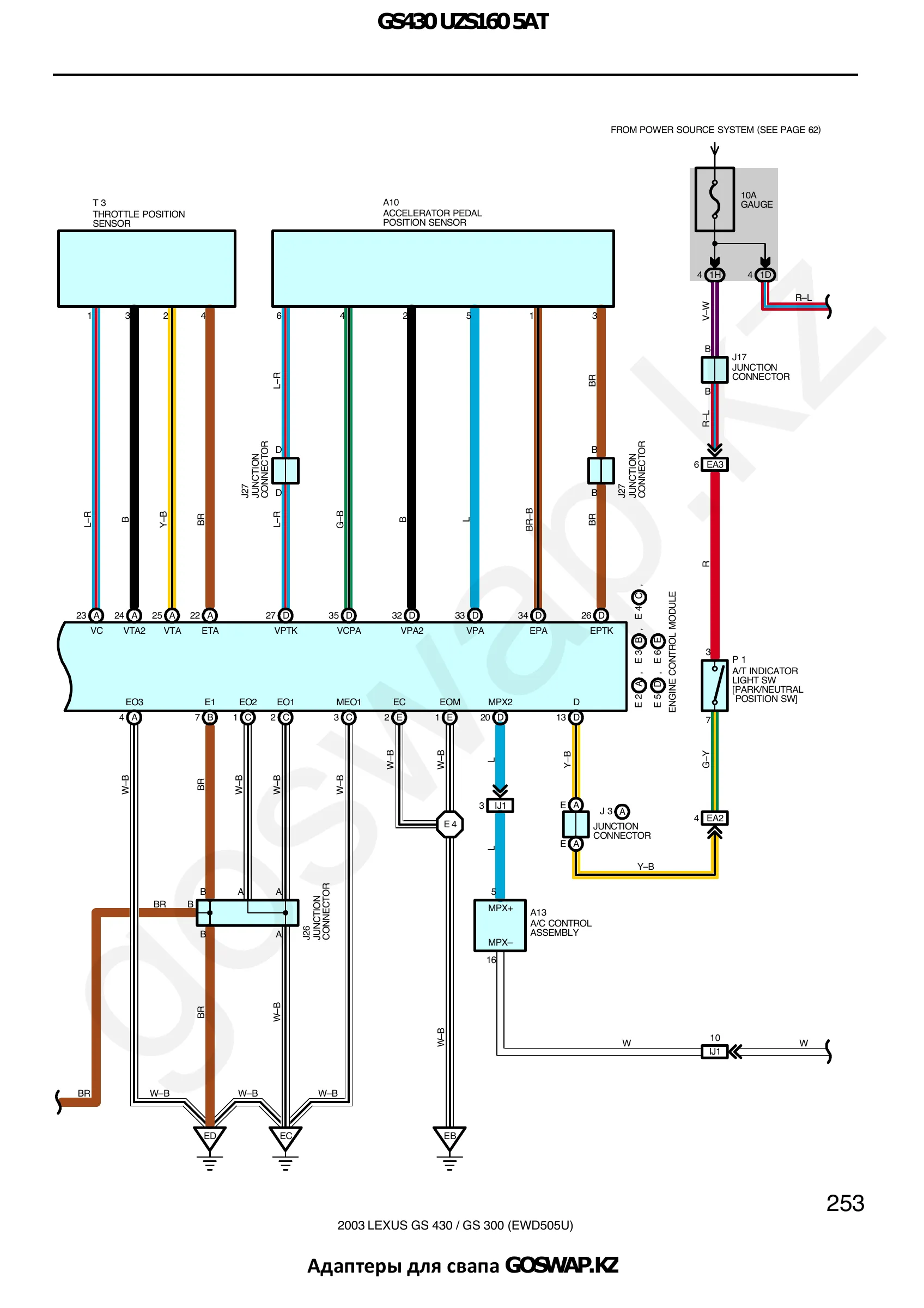

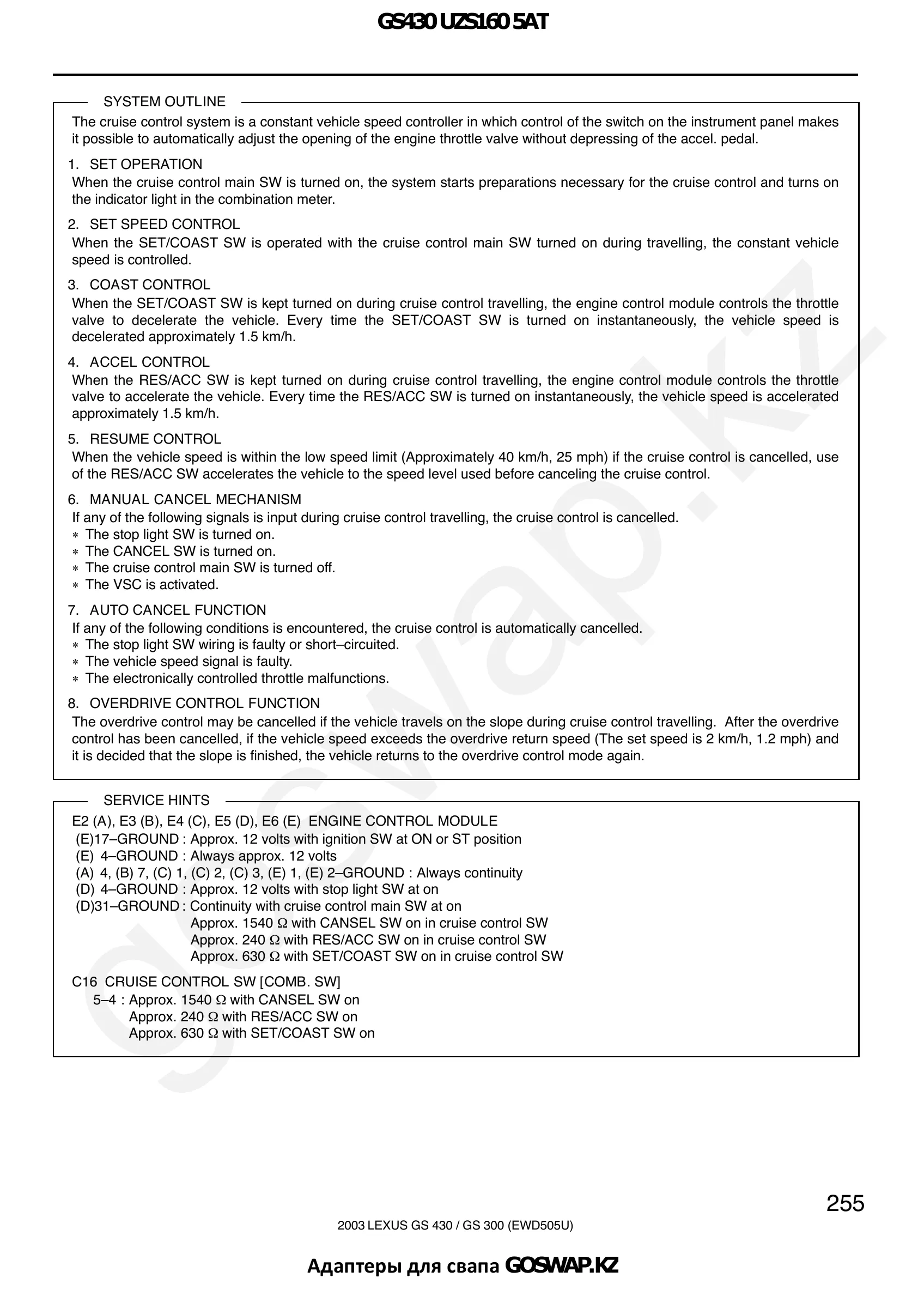

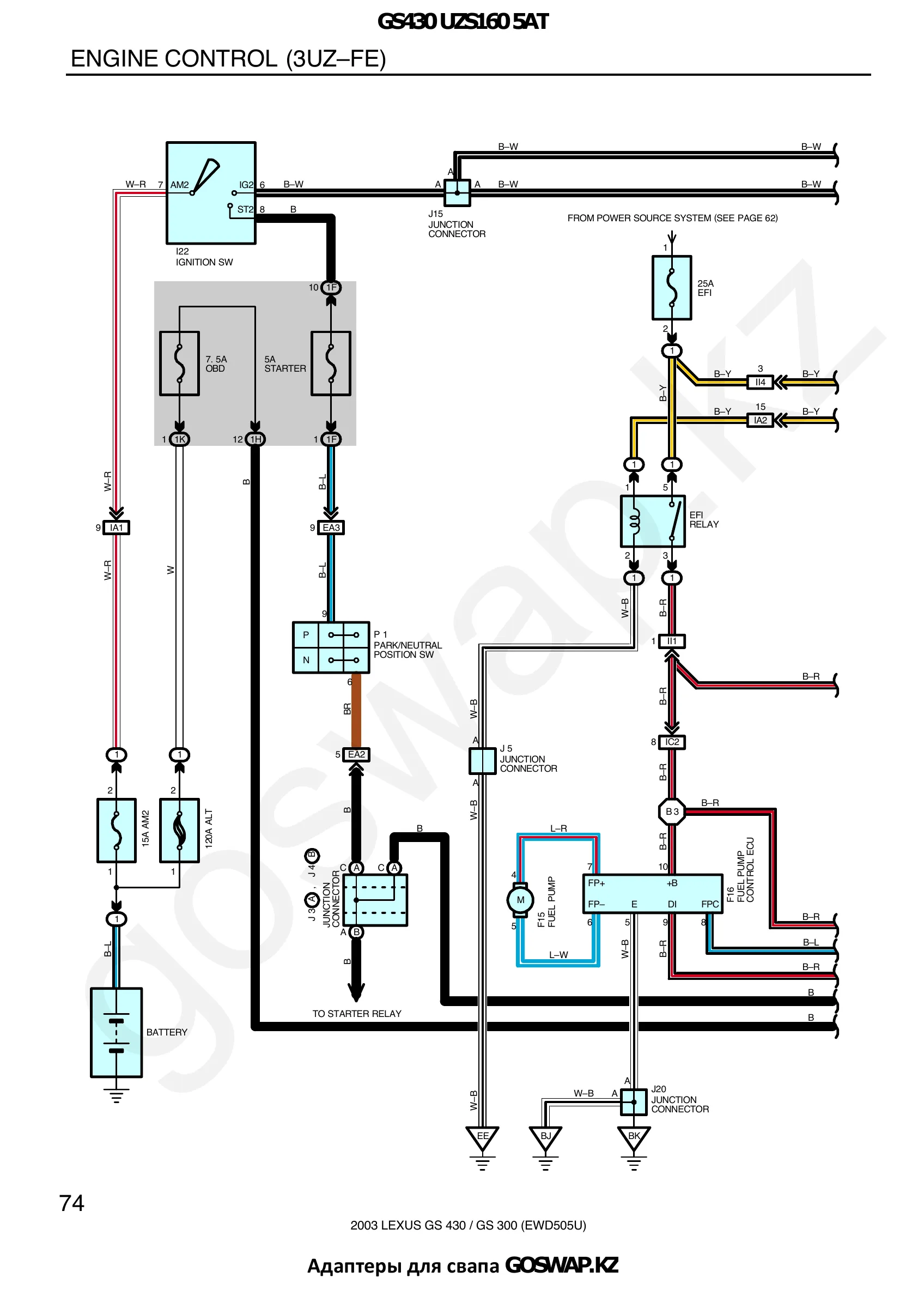

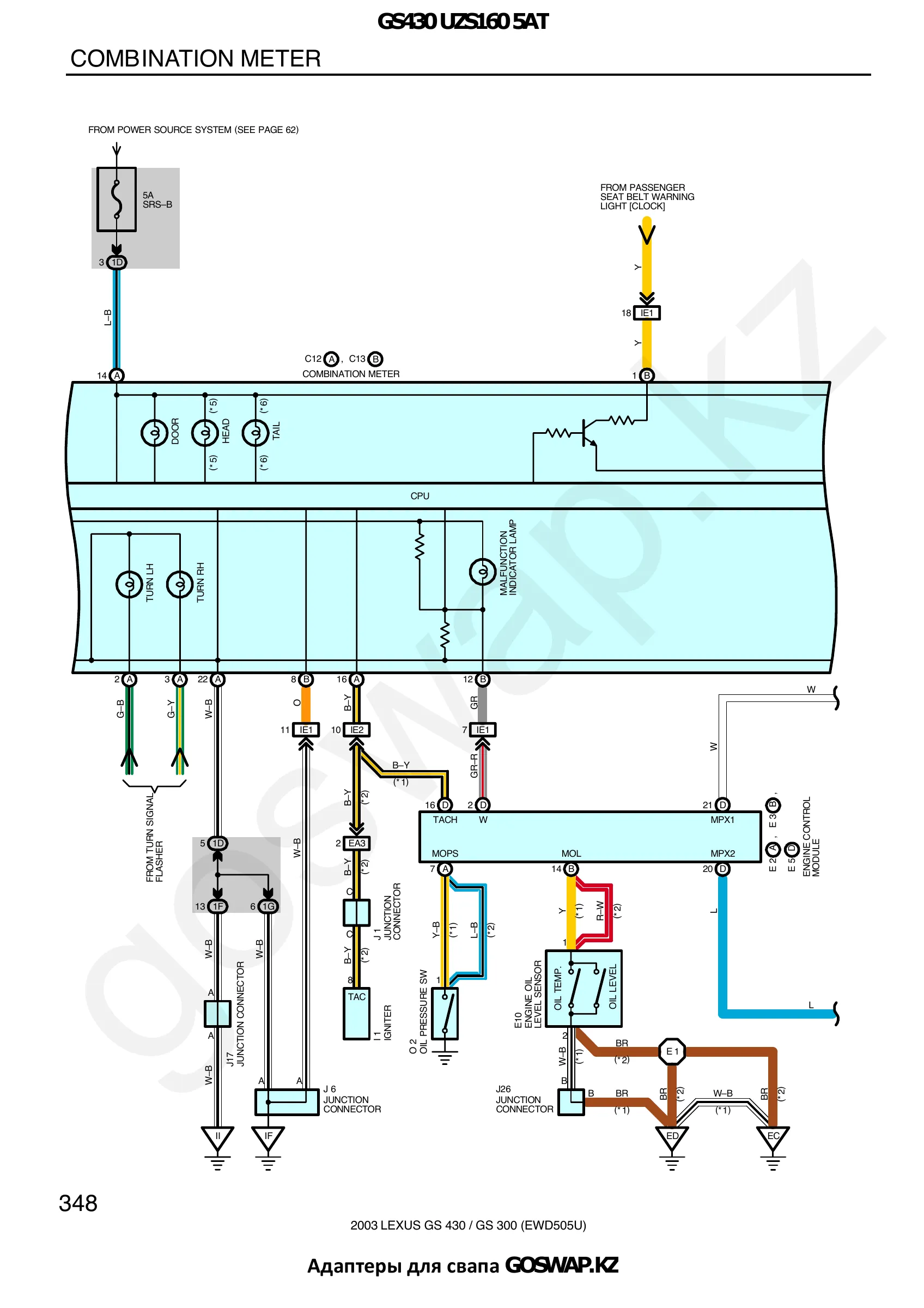

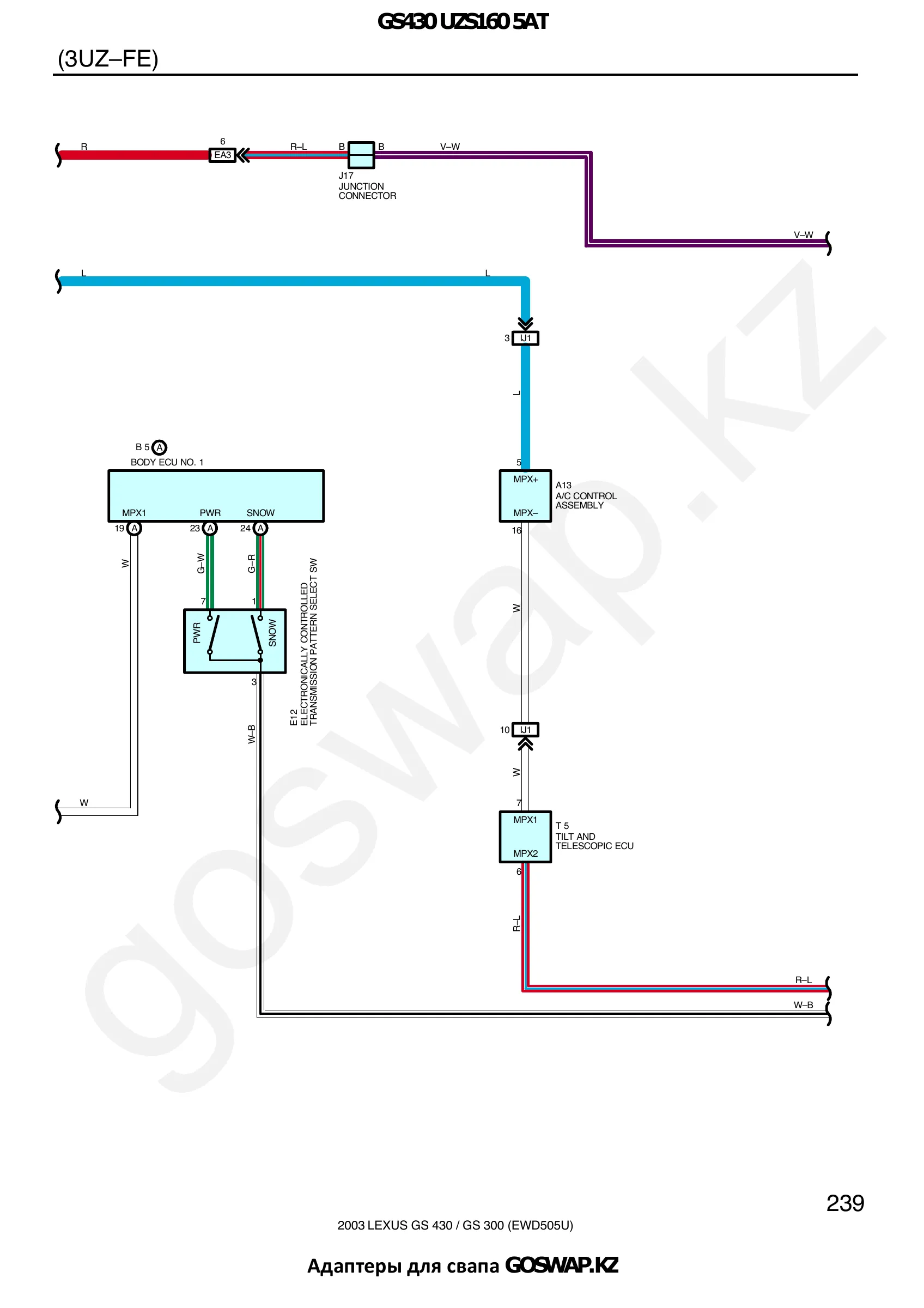

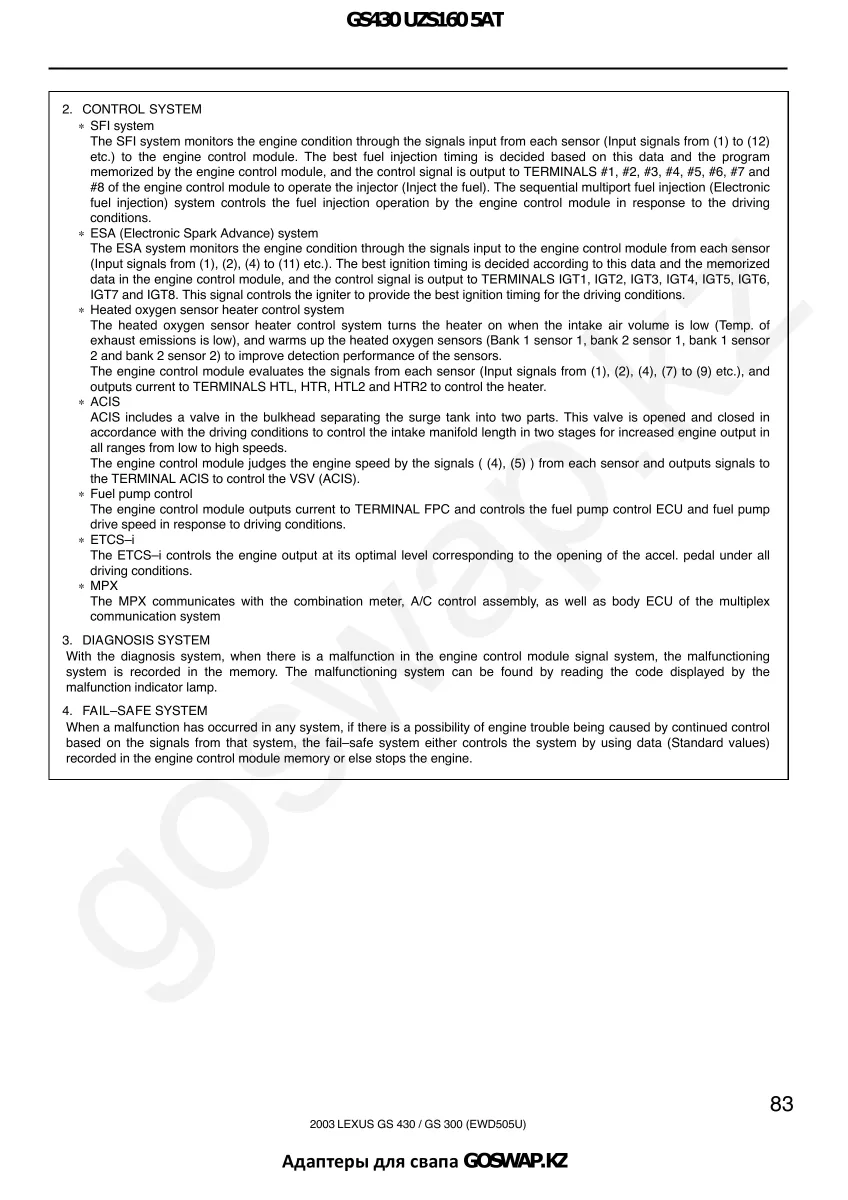

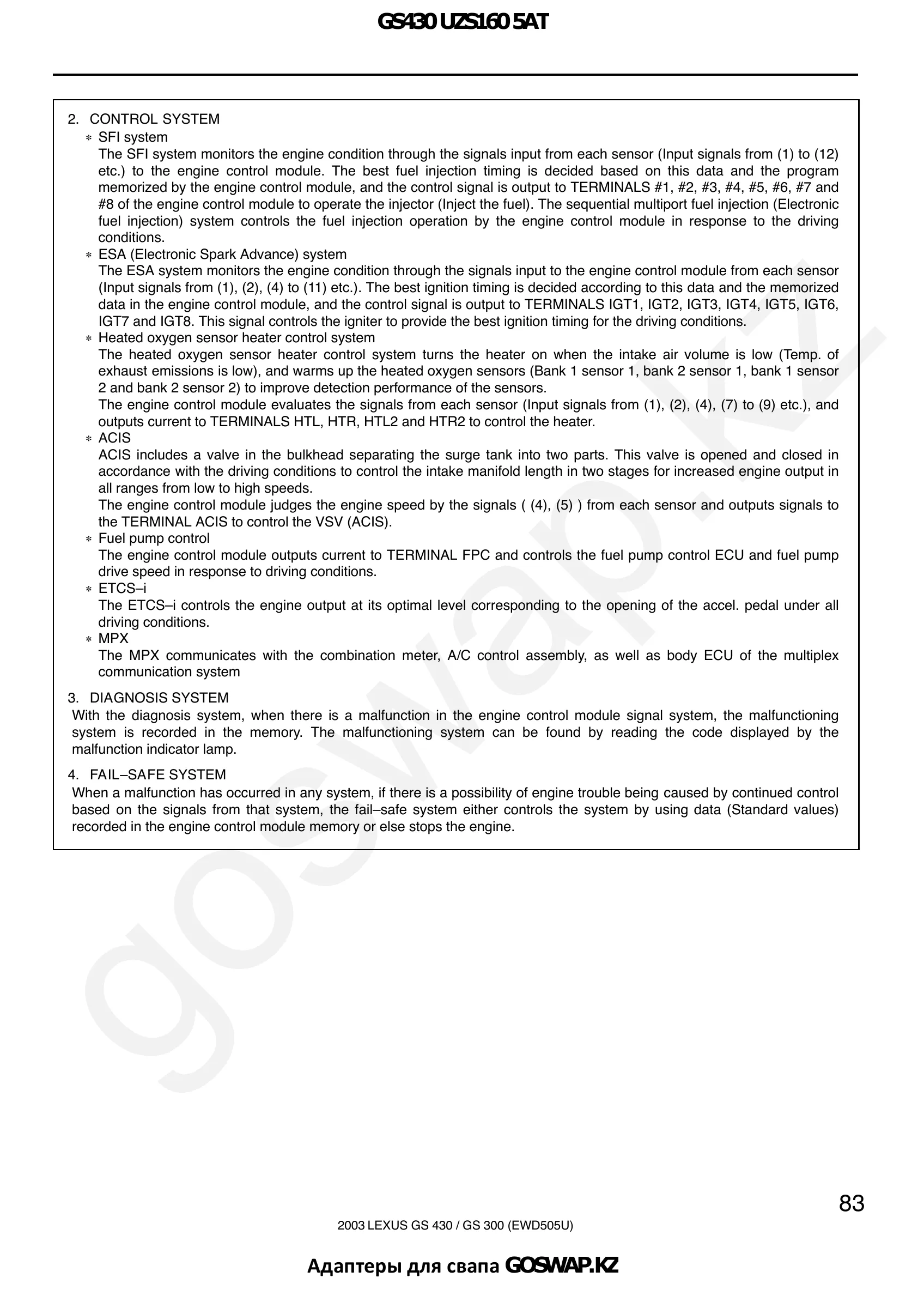

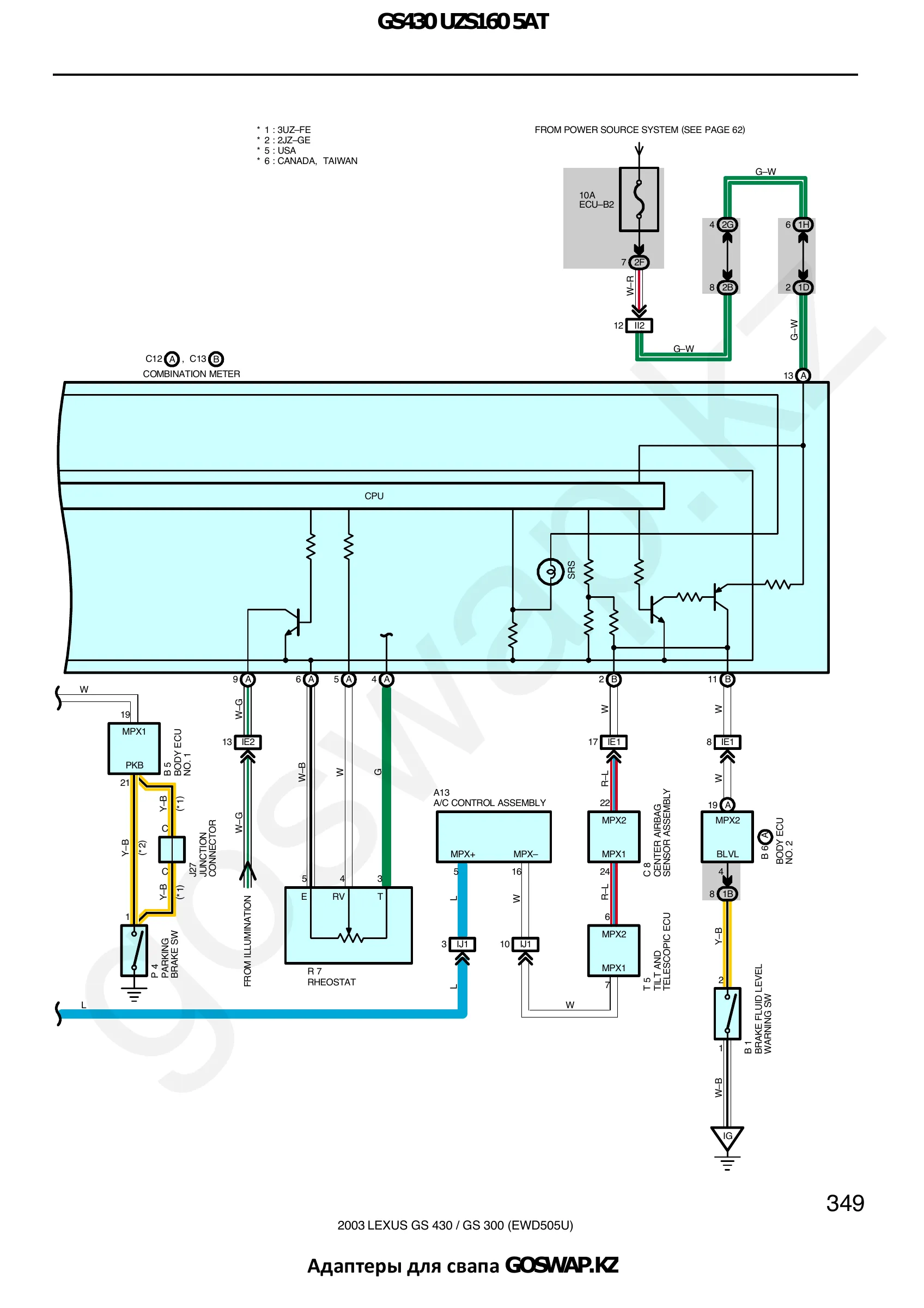

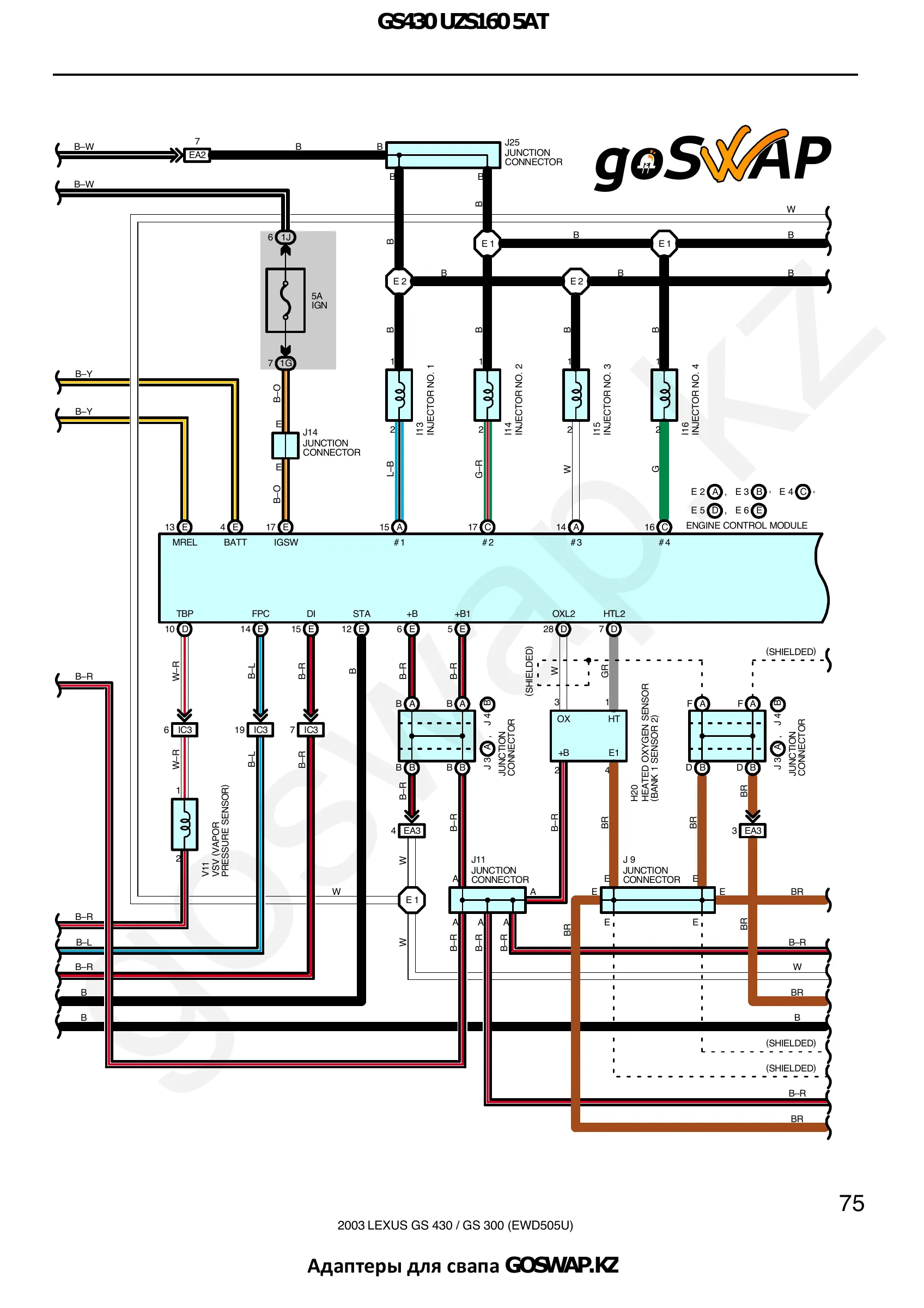

Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 1 of 38 Page 1 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 2 of 38 Page 2 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 3 of 38 Page 3 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 4 of 38 Page 4 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 5 of 38 Page 5 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 6 of 38 Page 6 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 7 of 38 Page 7 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 8 of 38 Page 8 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 9 of 38 Page 9 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 10 of 38 Page 10 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 11 of 38 Page 11 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 12 of 38 Page 12 of 38 · open full size

Swap adapters: Toyota 3UZ 5AT · MPX · 4

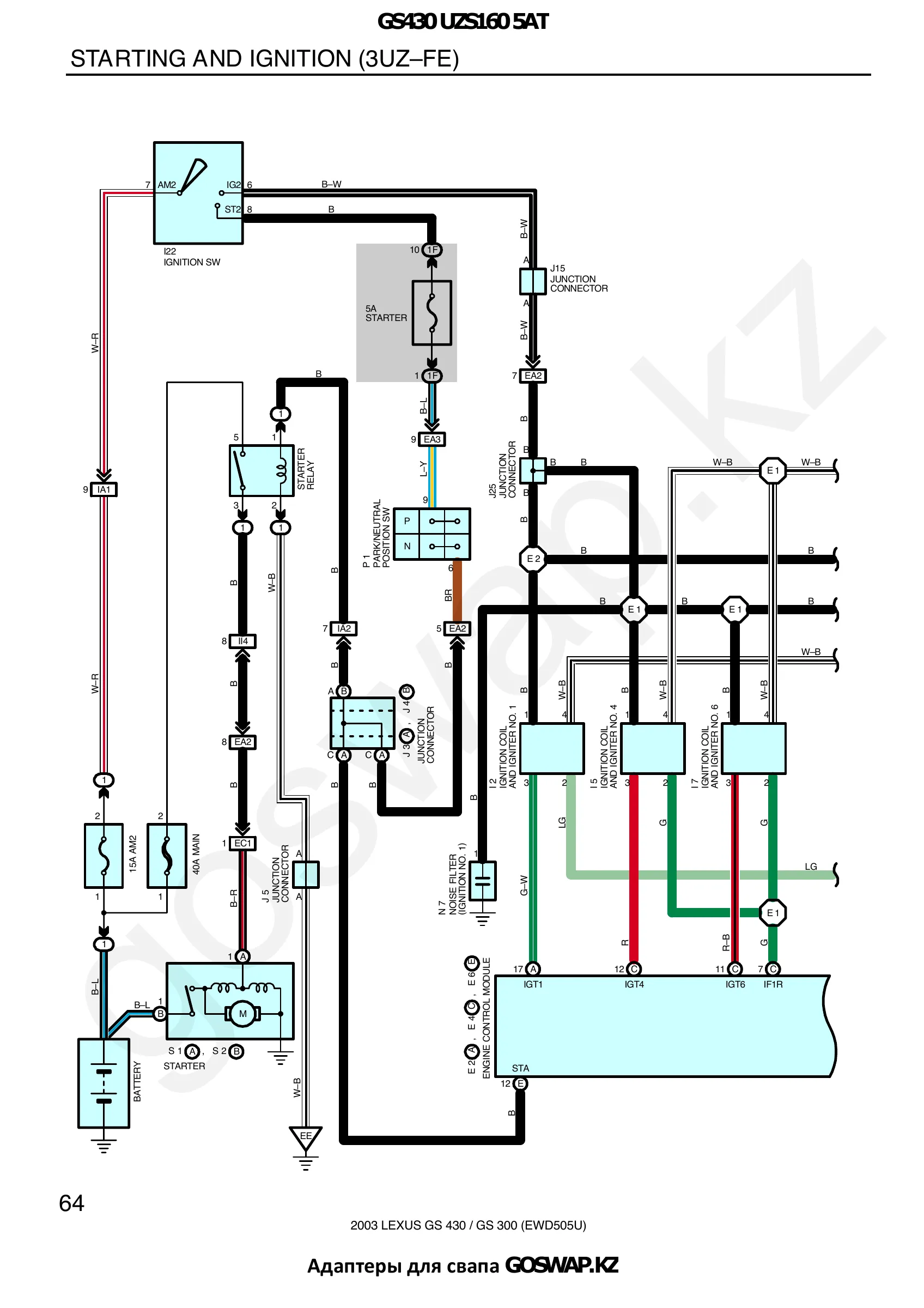

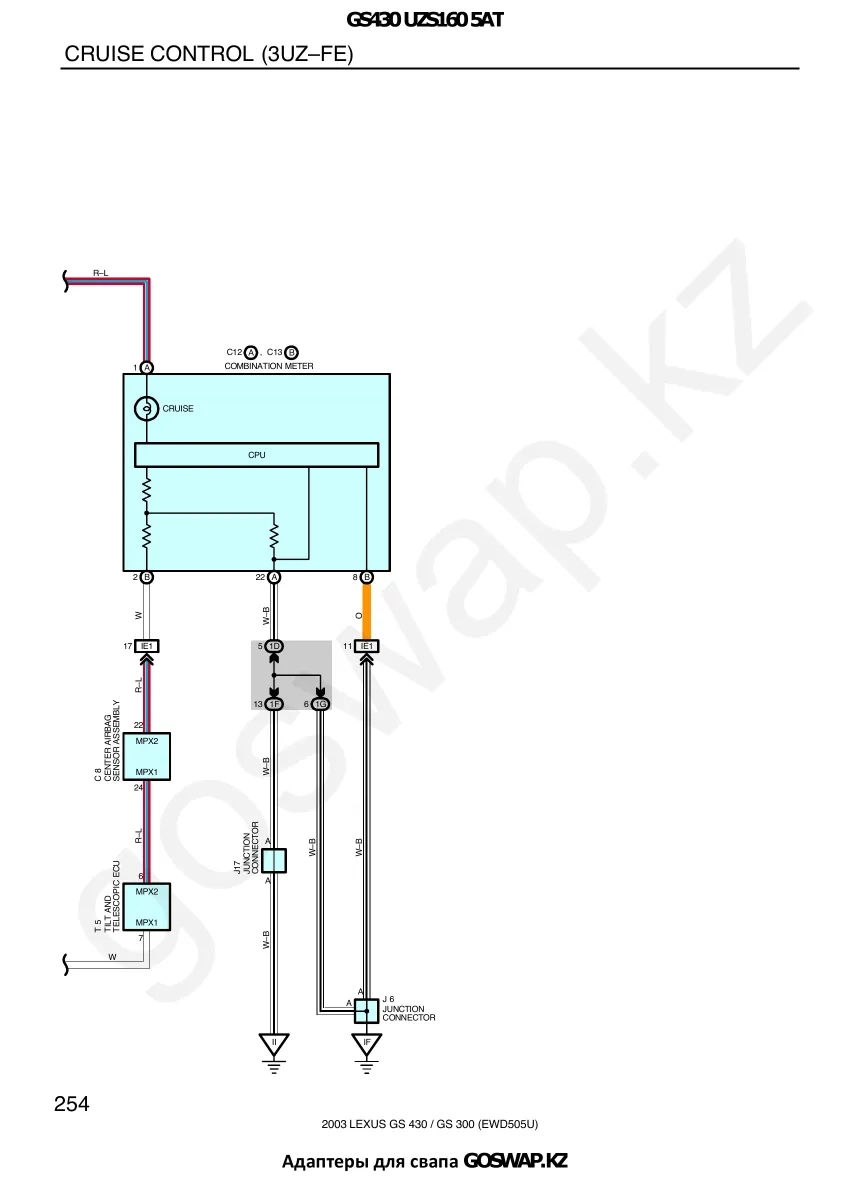

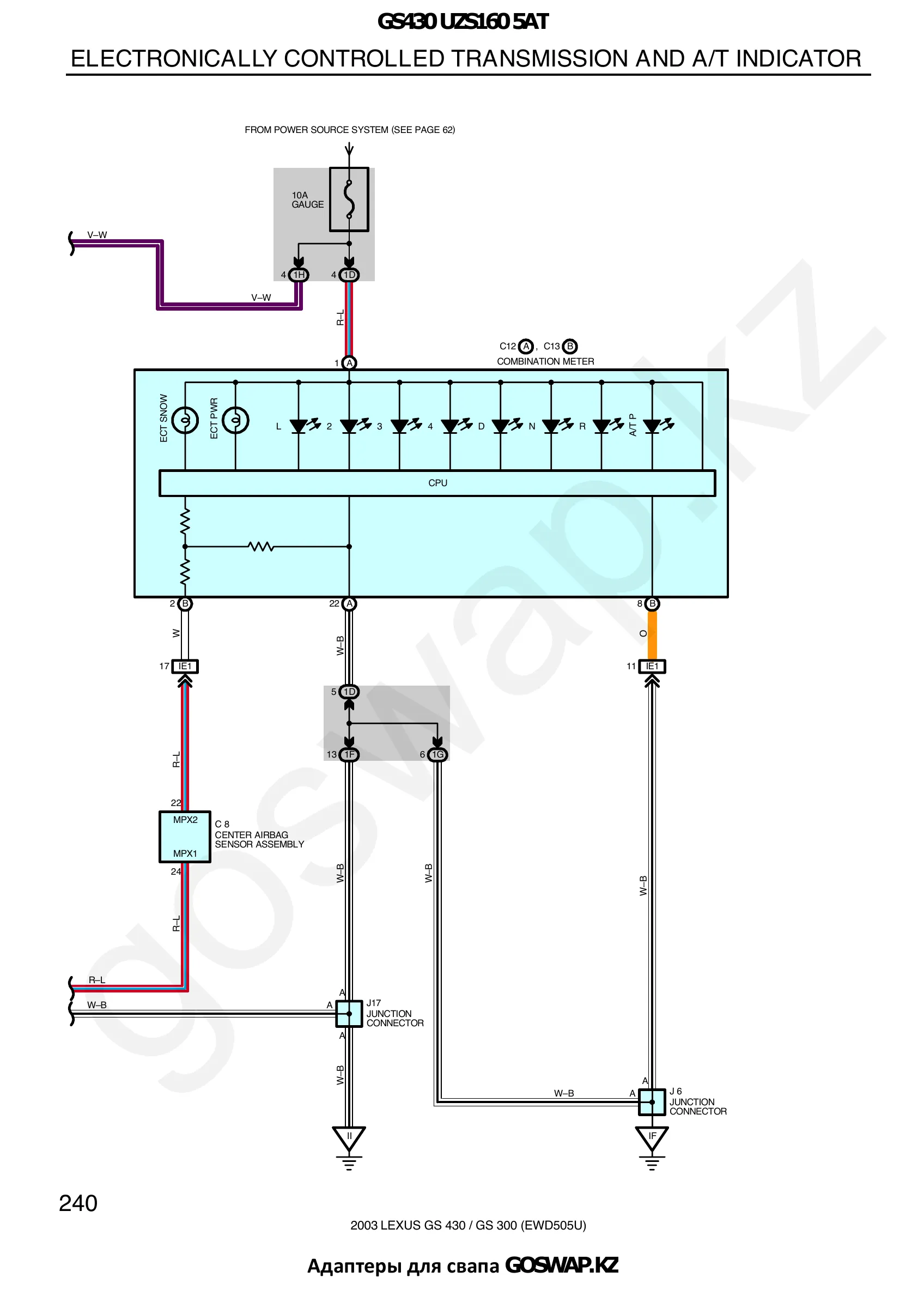

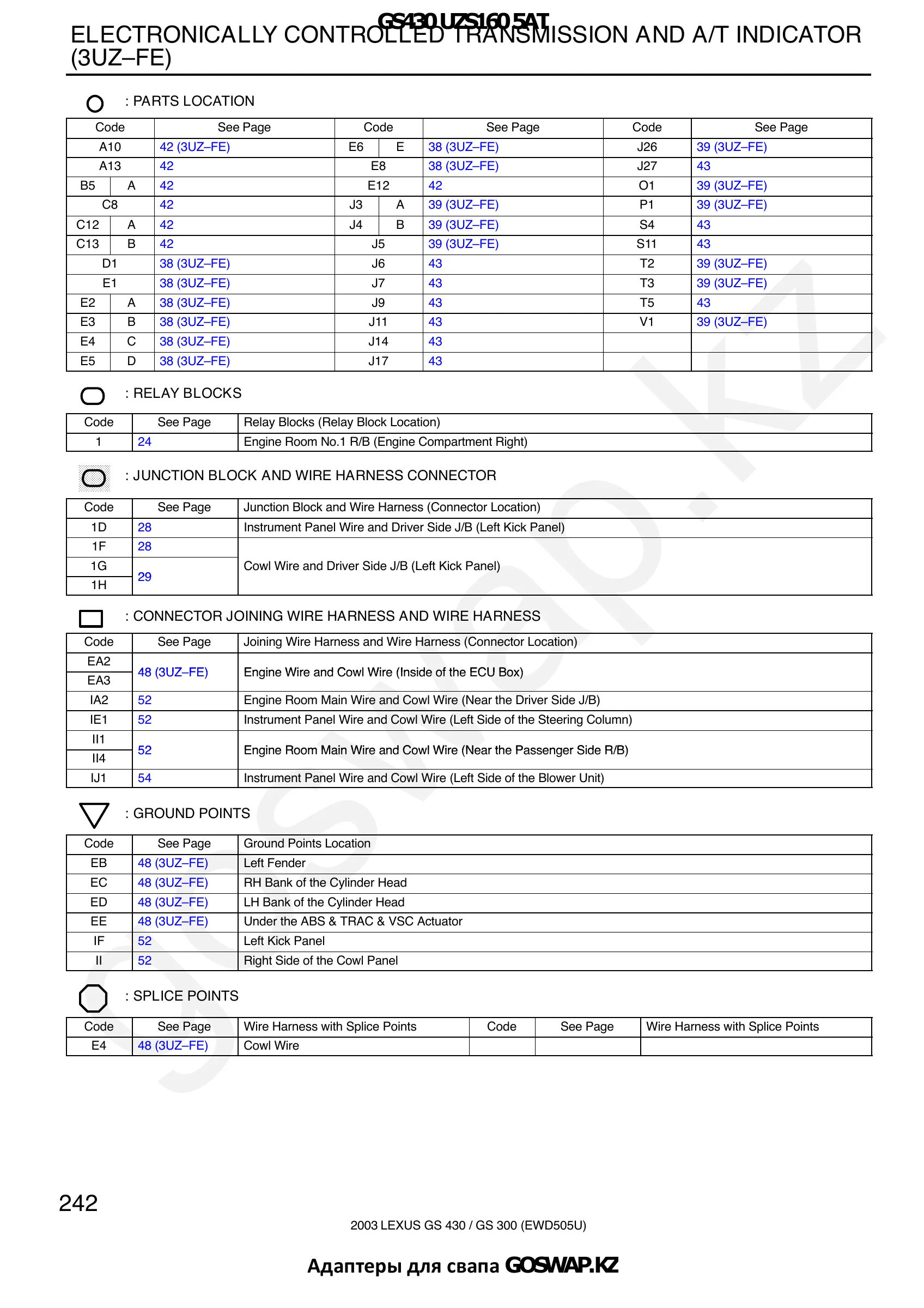

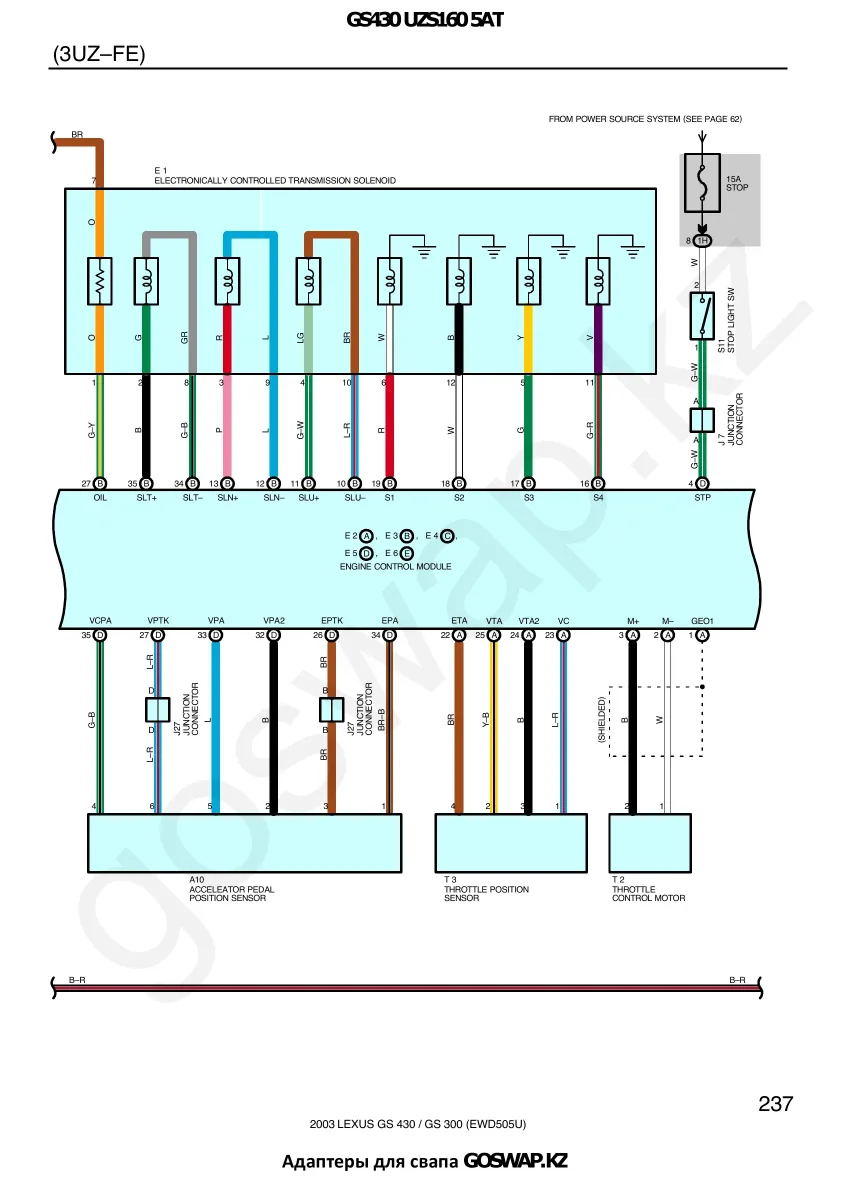

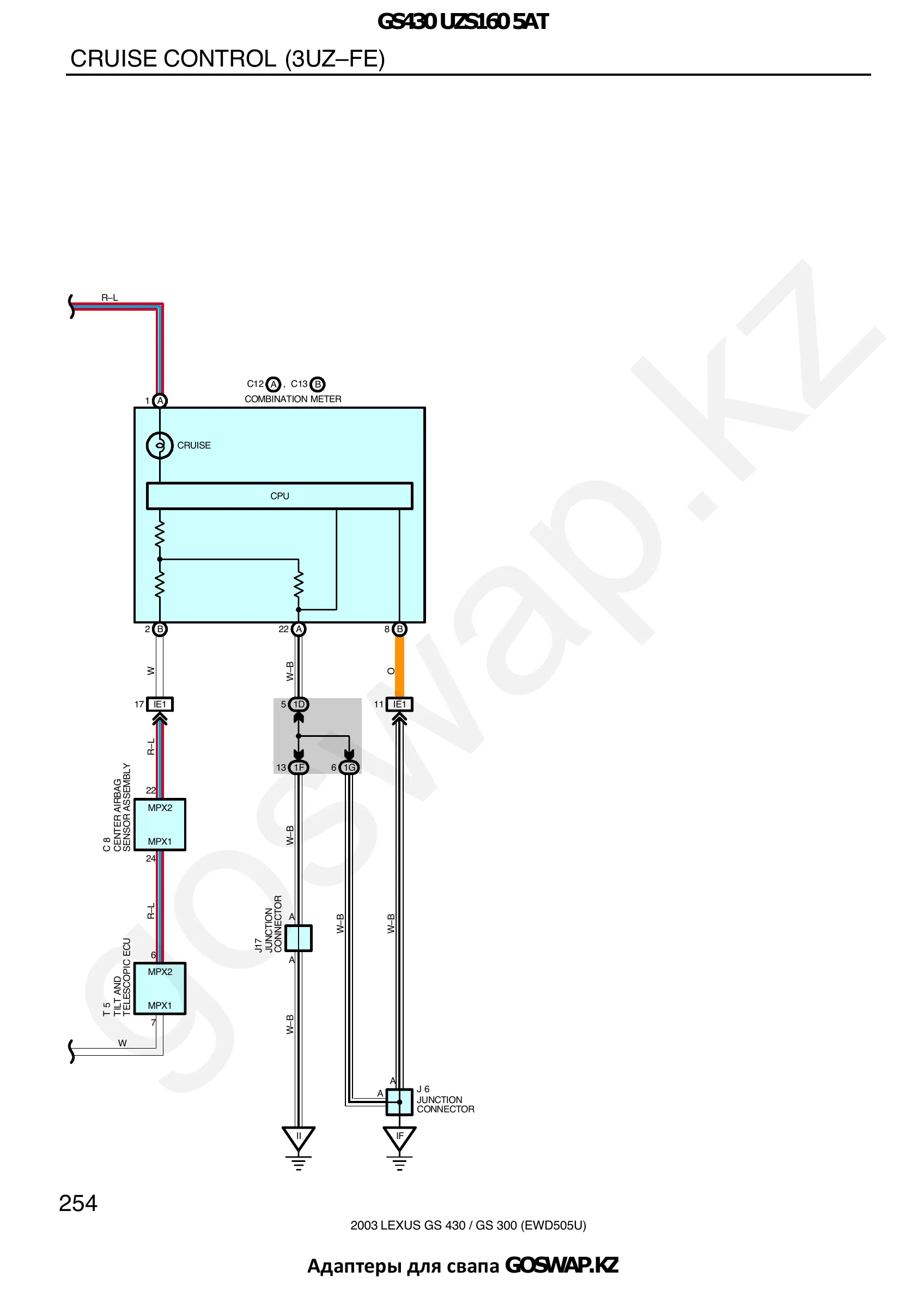

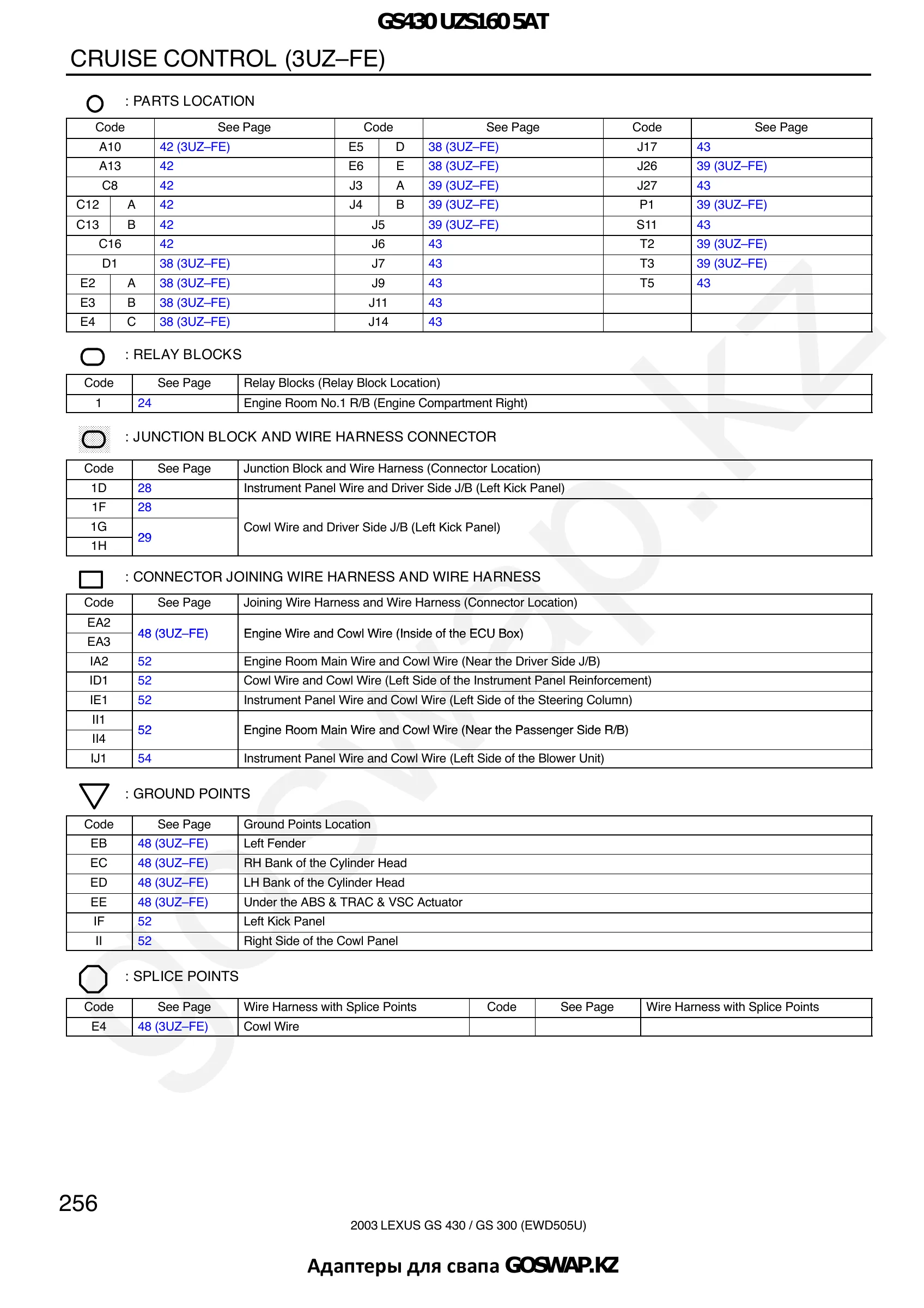

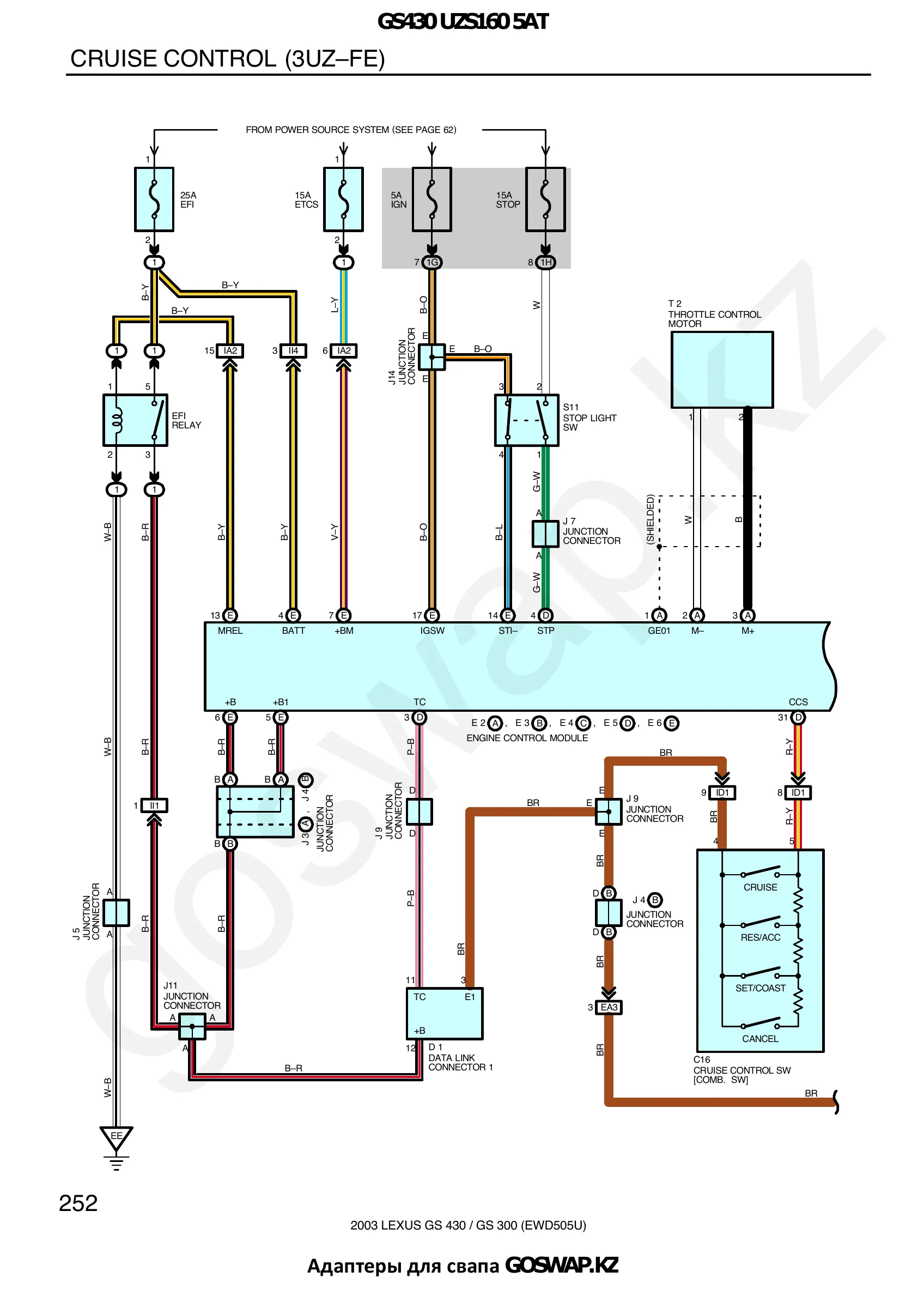

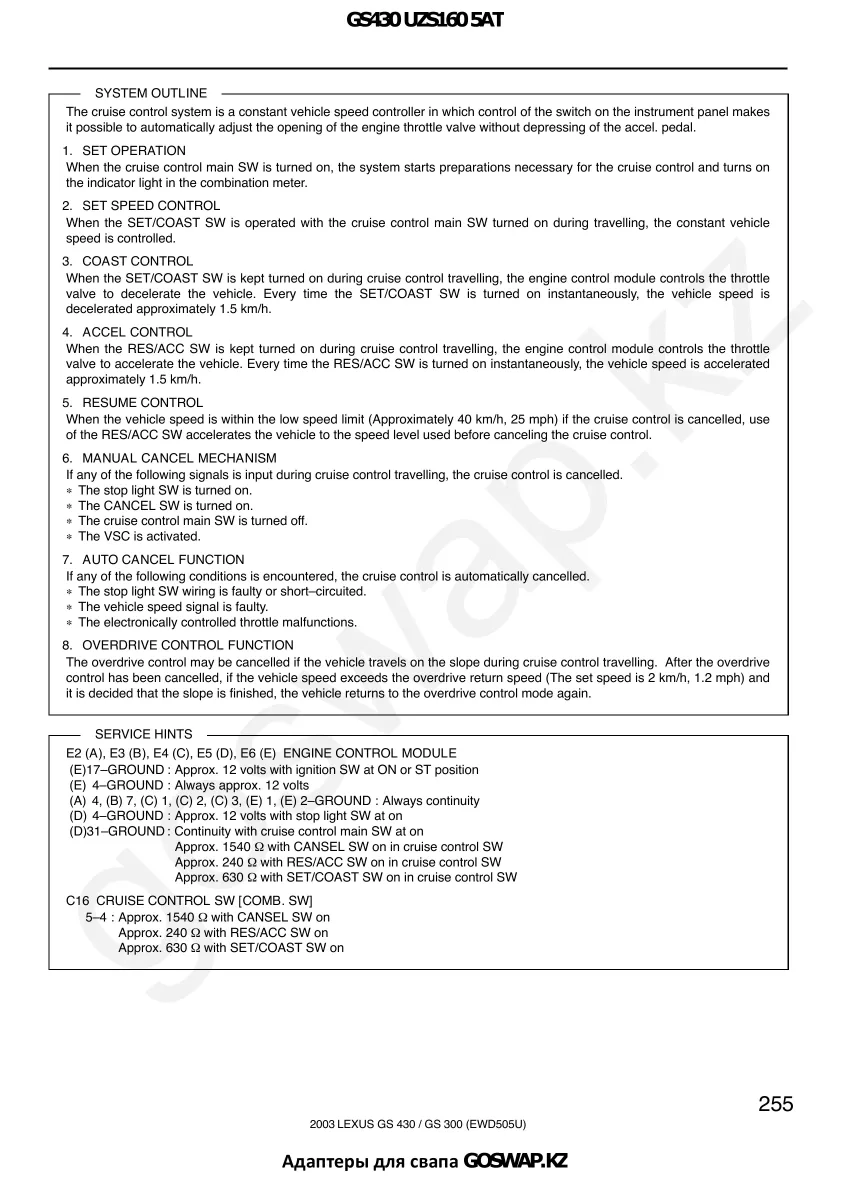

Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 13 of 38 Page 13 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 14 of 38 Page 14 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 15 of 38 Page 15 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 16 of 38 Page 16 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 17 of 38 Page 17 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 18 of 38 Page 18 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 19 of 38 Page 19 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 20 of 38 Page 20 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 21 of 38 Page 21 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 22 of 38 Page 22 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 23 of 38 Page 23 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 24 of 38 Page 24 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 25 of 38 Page 25 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 26 of 38 Page 26 of 38 · open full size

Other GoSwap devices

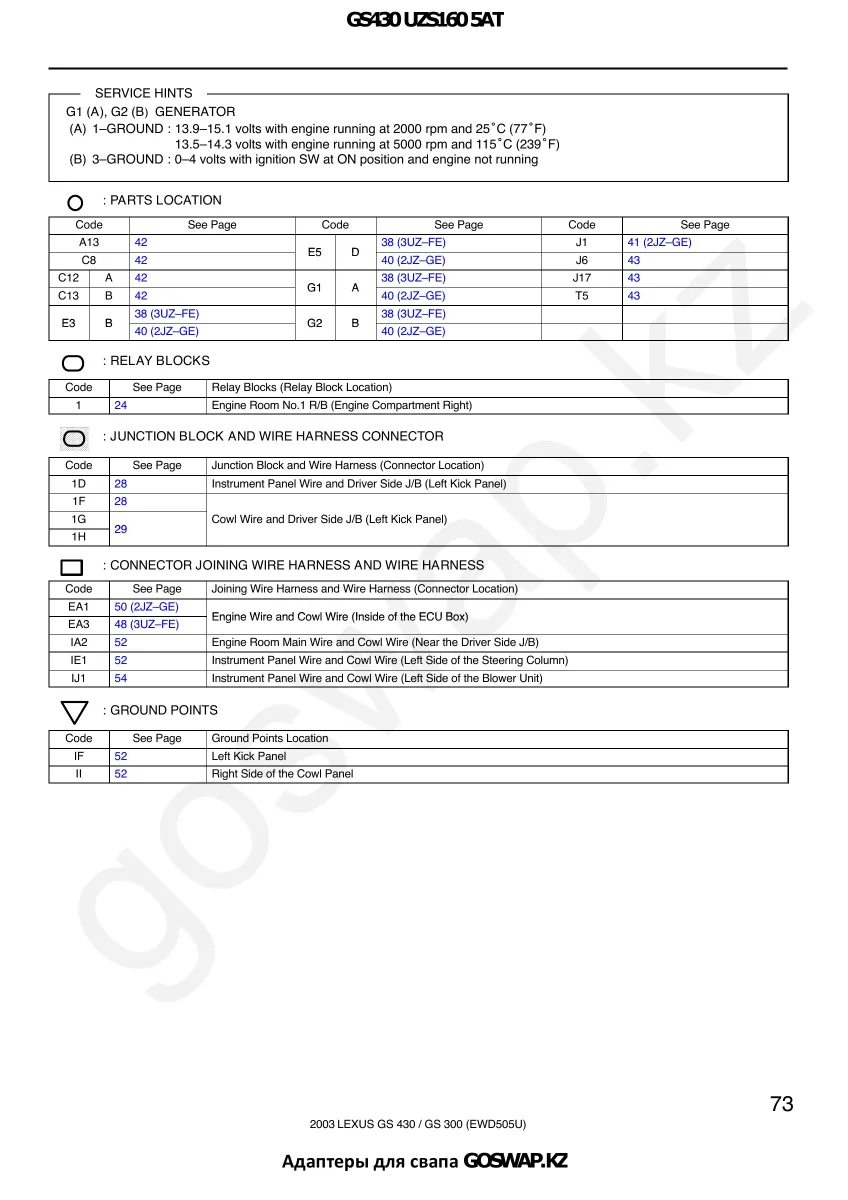

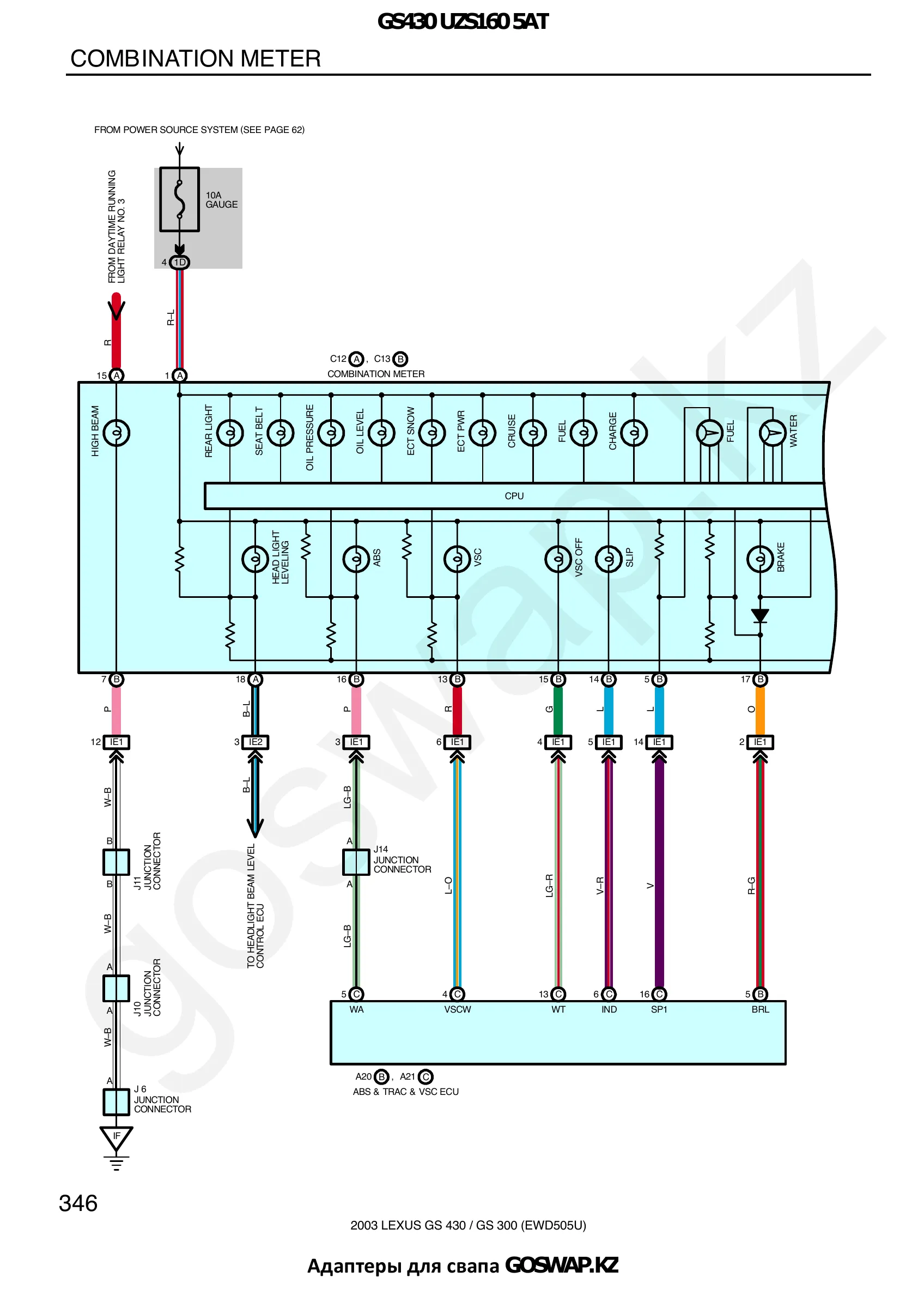

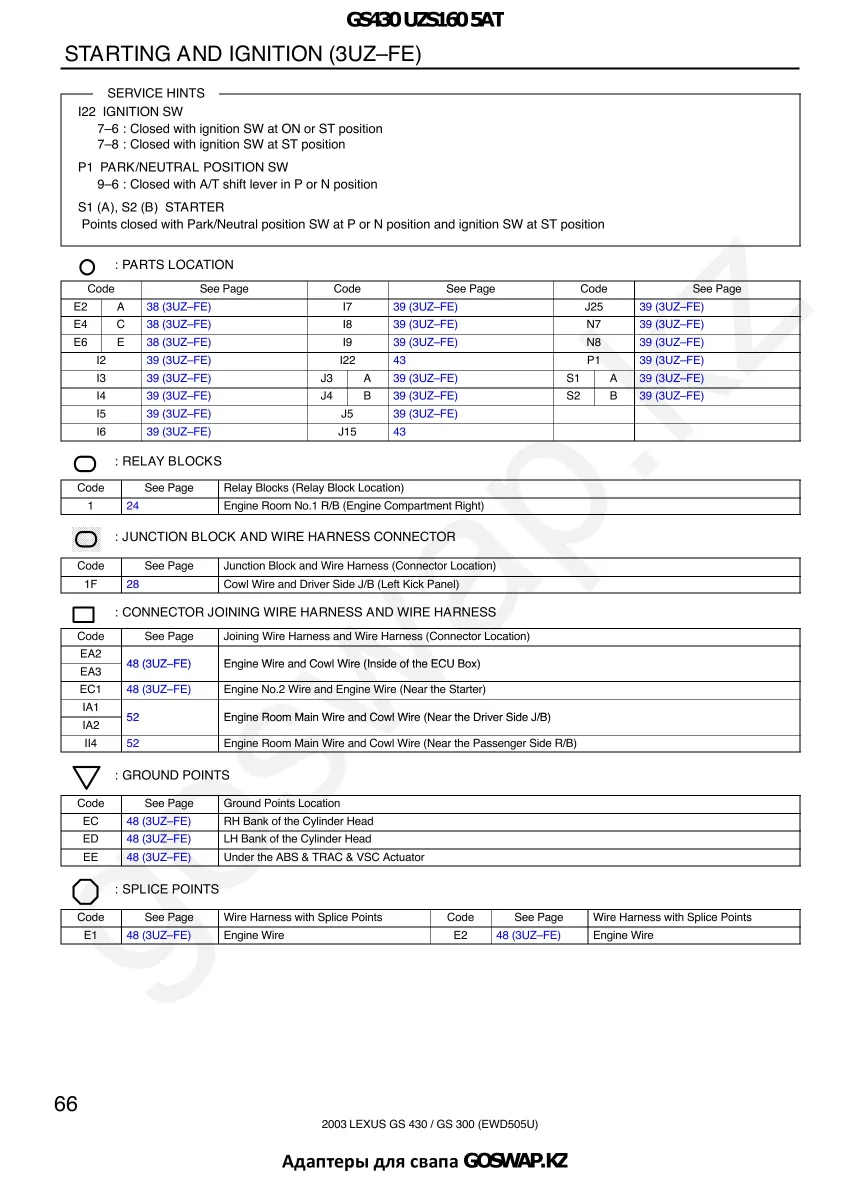

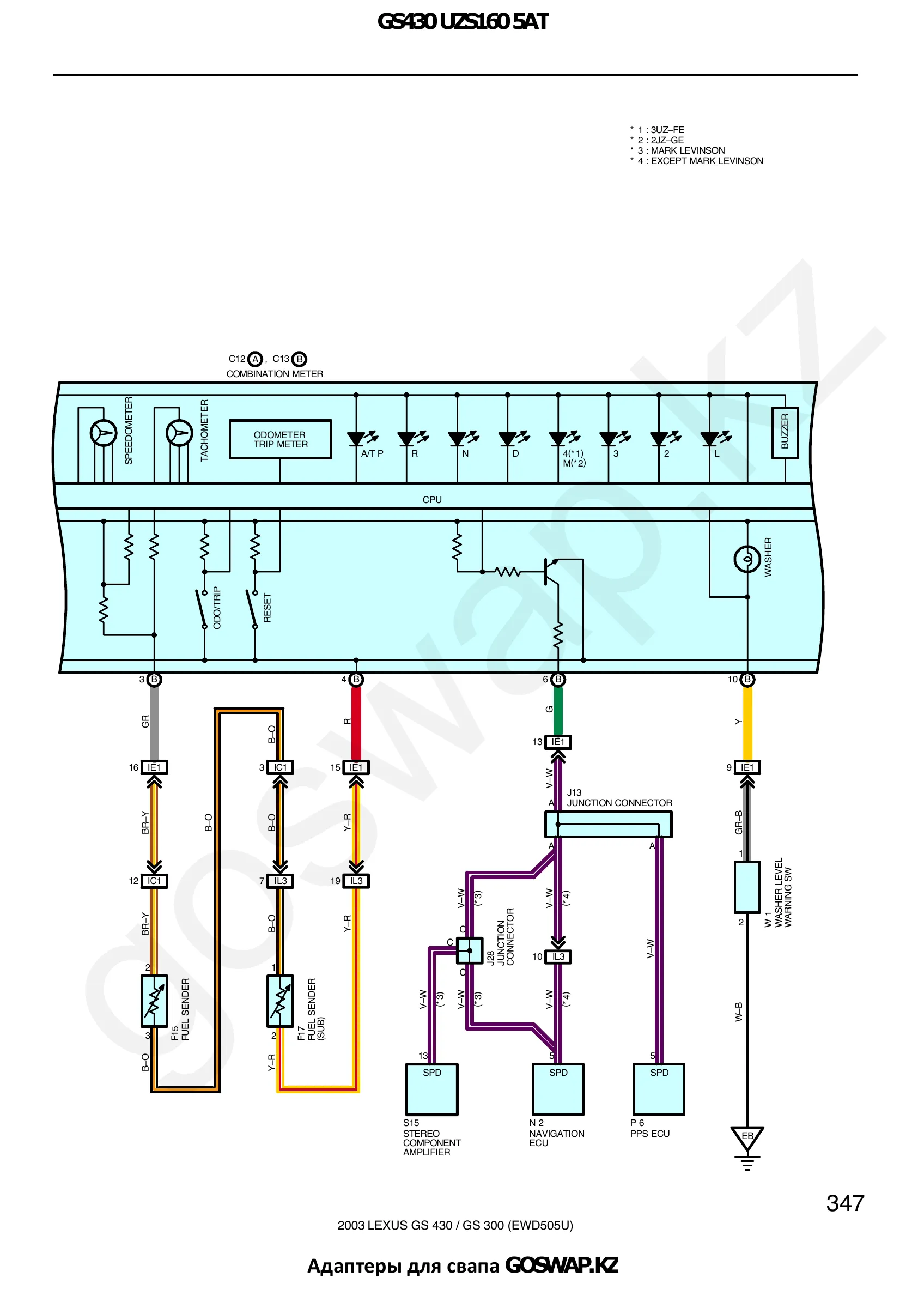

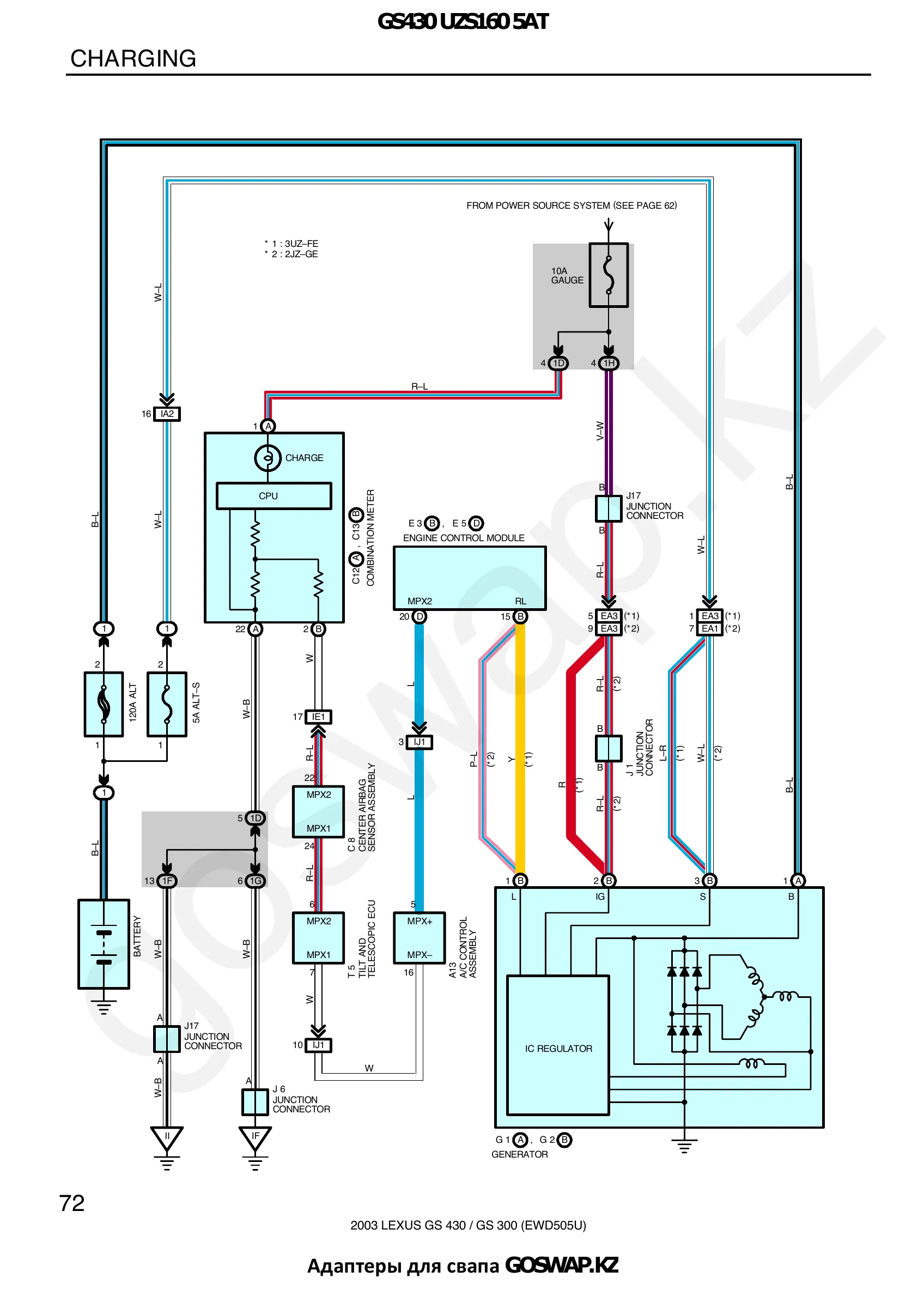

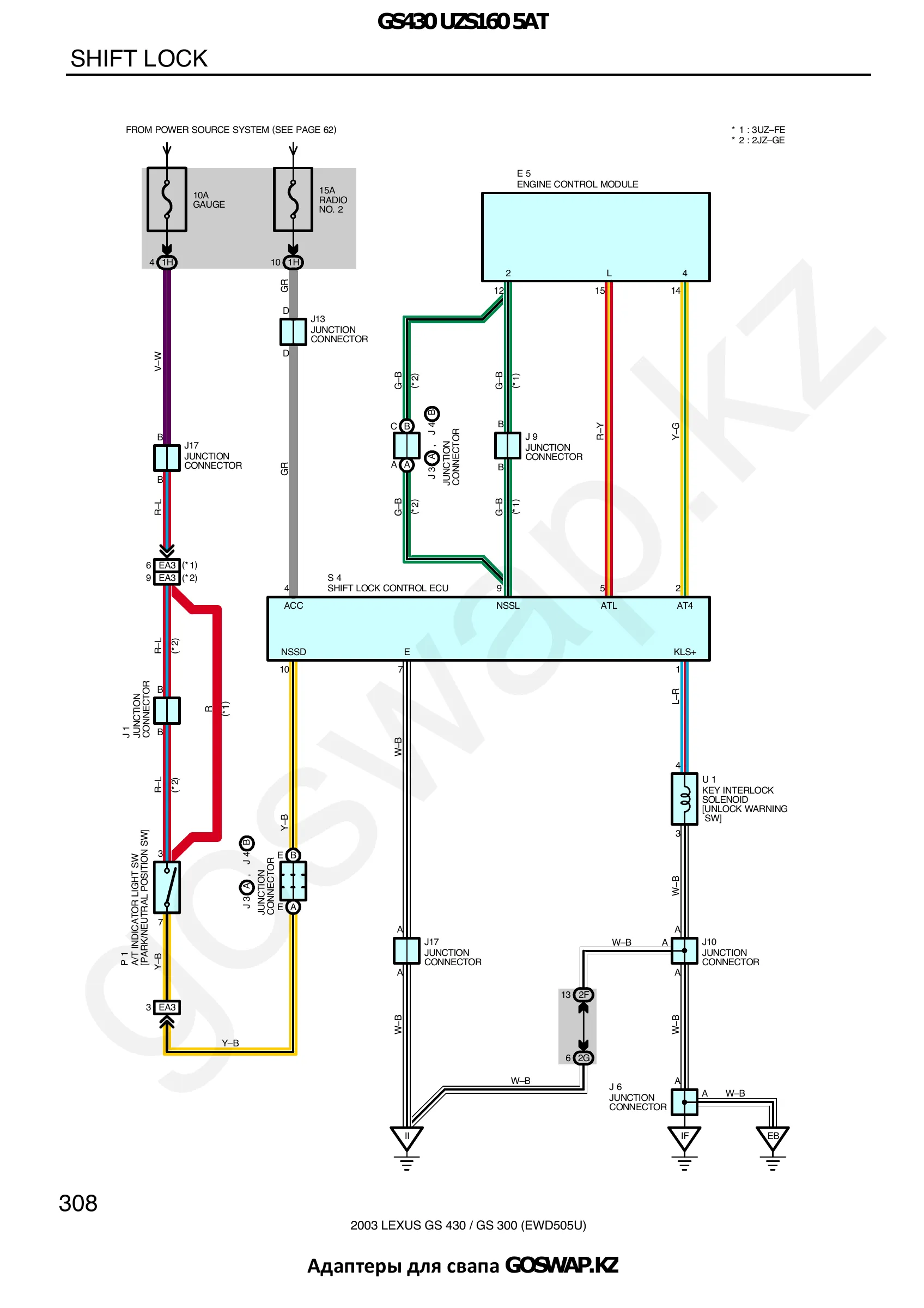

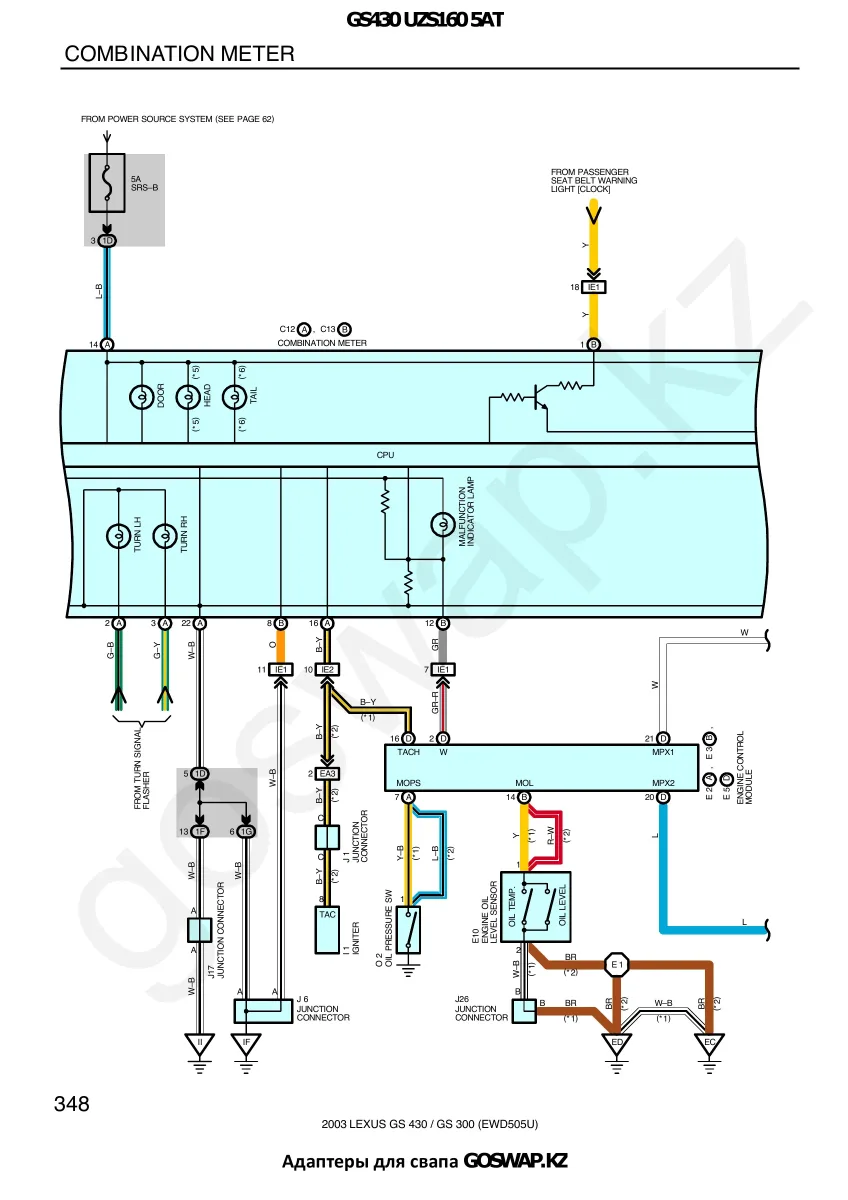

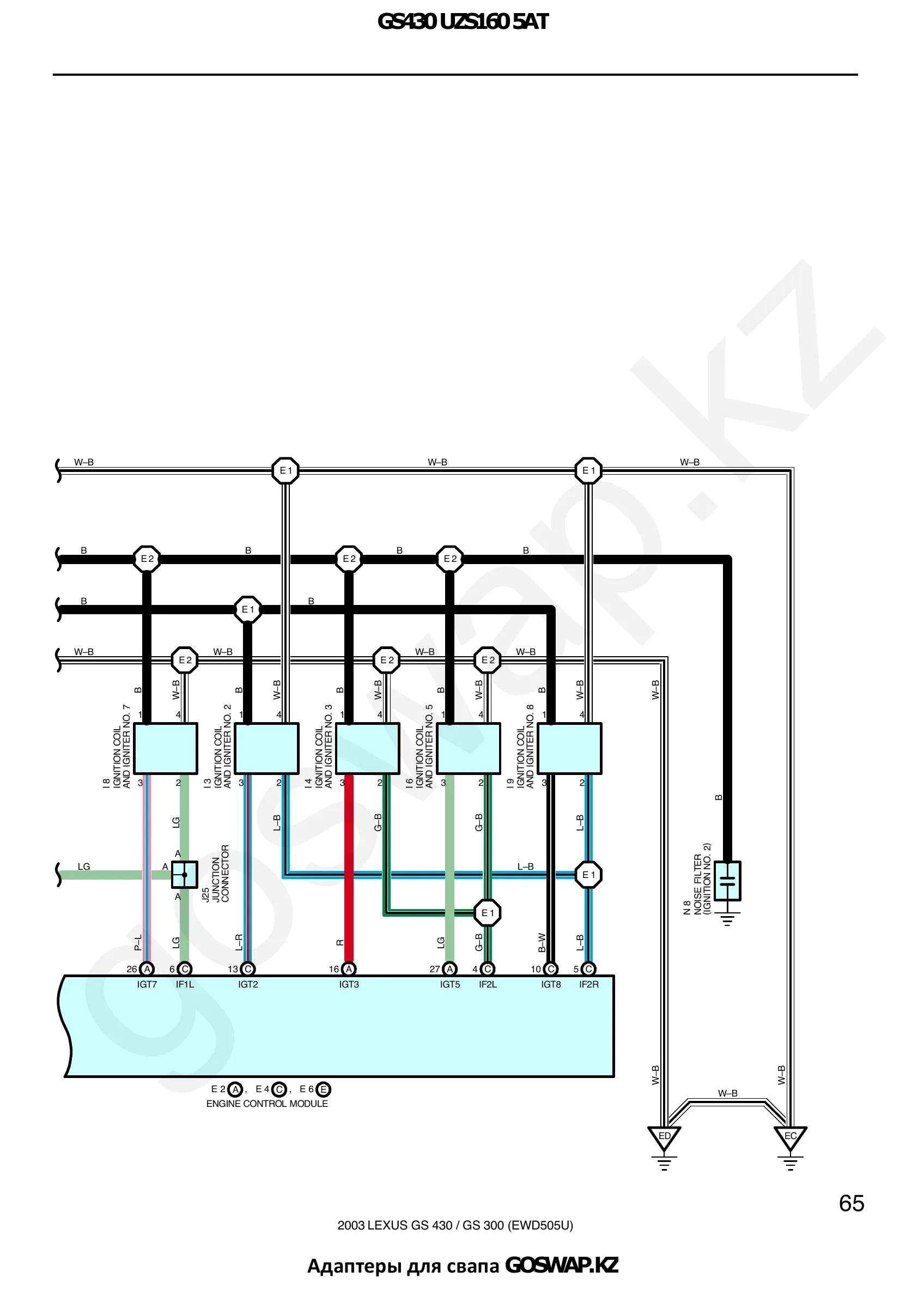

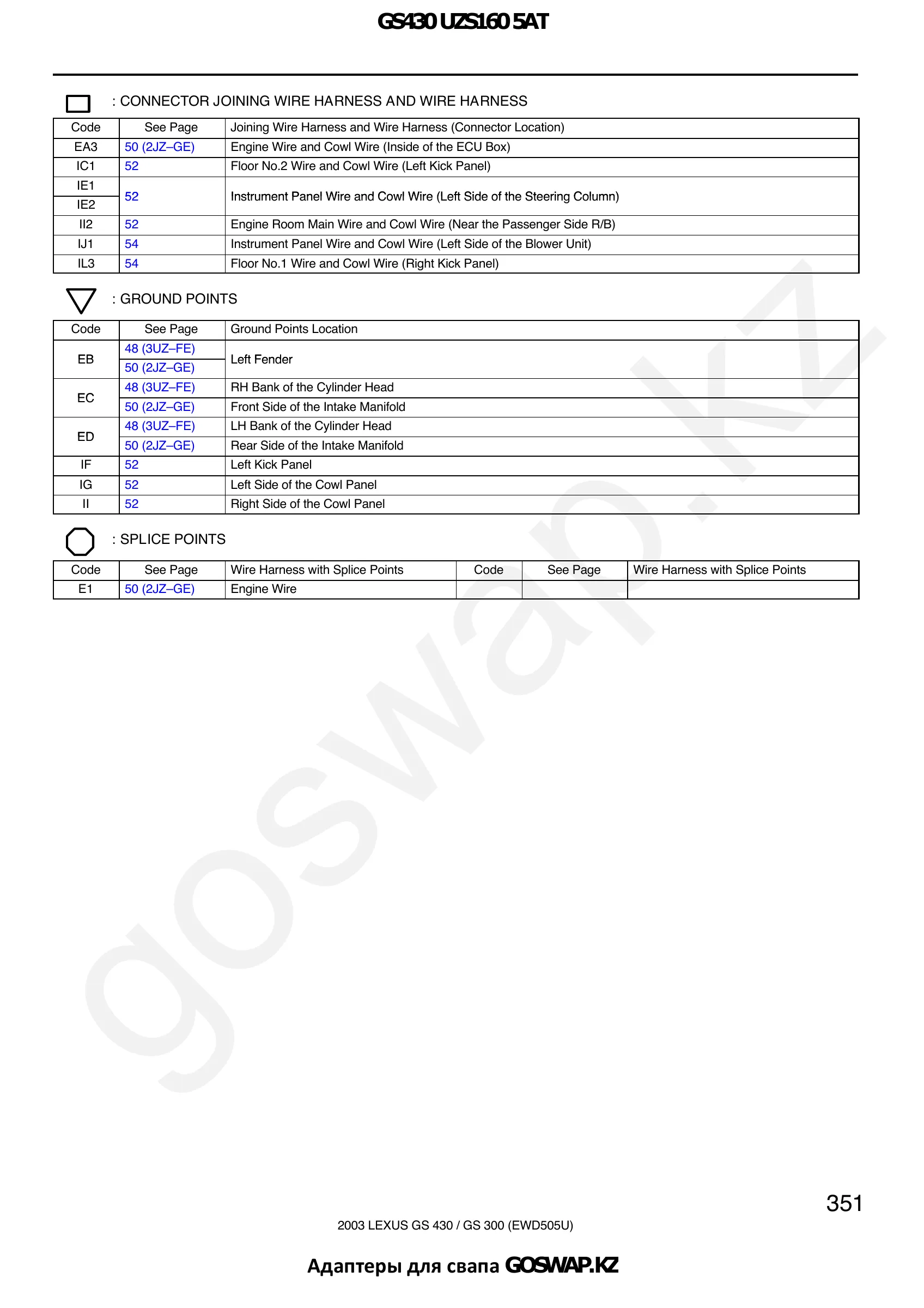

Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 27 of 38 Page 27 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 28 of 38 Page 28 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 29 of 38 Page 29 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 30 of 38 Page 30 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 31 of 38 Page 31 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 32 of 38 Page 32 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 33 of 38 Page 33 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 34 of 38 Page 34 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 35 of 38 Page 35 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 36 of 38 Page 36 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 37 of 38 Page 37 of 38 · open full size Wiring diagram 3UZ 5AT · Lexus GS430 UZS160 — page 38 of 38 Page 38 of 38 · open full size

The sheets of this diagram are taken from open sources on the internet. GoSwap is not responsible for their accuracy.
